TITAN V2
Produktcode:TIT65035
Art:LED-1L16E500KNV83/PM08 DALI 3K#
Modell
Andere Produkte
Technisch
Arten von leuchten: | Dimmbar |
Befestigungsart: | Halbeinbauleuchten |
Basismaterial: | Stahl |
Schattenmaterial: | opales Polymethylmethacrylat |
Grundfarbe: | Weiß Ral9003 |
Schattenfarbe: | Weiß |
Schatten halten: | Faltsystem |
Montageort: | Wand / Decke |

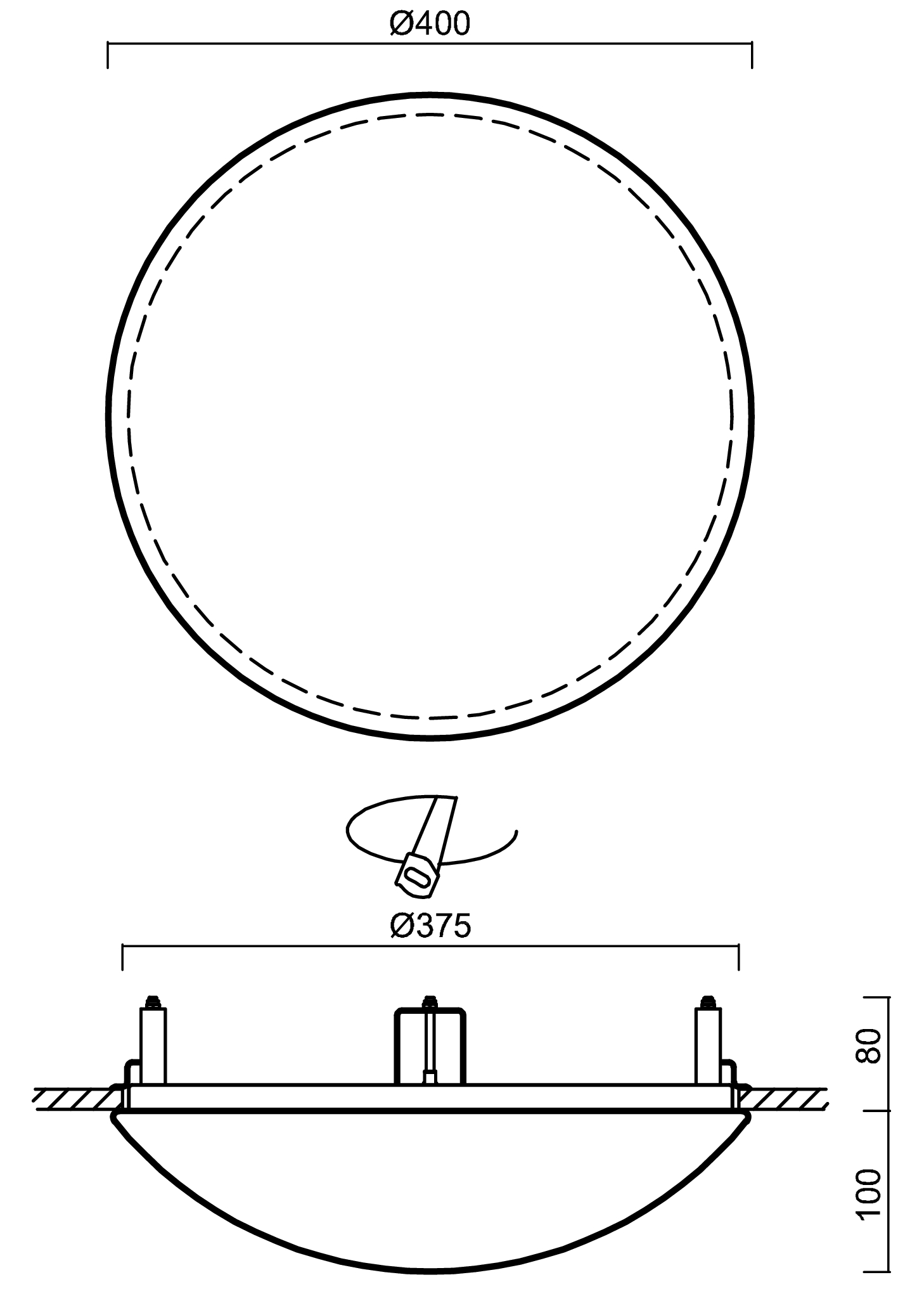

Breite: | 400 mm |
Länge: | 400 mm |
Höhe: | 100 mm |
Durchmesser: | 400 mm |
Montageloch: | není |
Kabeldurchgang: | 2xØ16mm |
Energieklasse: | D |
Schlagfestigkeit: | IK04 |
Elektrisch
Anzahl netzteile: | 1 |
Leistung einer Versorgung: | 24 W |
Ausgabe: | 24 W |
Schutz vor Eindringen: | IP44 |
Steckdose: | LED modul |
Dimmtyp: | DALI |
Klemme: | Schnappklemmenblock |
7
Leuchtend
Leuchtenlichtstrom: | 2590 lm |
Lichtstrom der quelle: | 3750 lm |
Temperatur: | 3000 K |
LED-Lebensdauer L80/B10: | 50000 |
CRI: | Ra80 |
MacAdam: | 3 |
Logistik
EAN | 8591728131715 |
Gewicht NTTO | 2 Kg |
Gewicht BTTO | 2.4 Kg |
Anzahl kartons | 1 |
Paketvolumen | 0.031 m3 |
Paket 1 breite | 0.41 m |
Paket 1 länge | 0.42 m |
Paket 1 höhe | 0.18 m |
Garantie: | 60 |
Klassisch on/off
Sensor
Dimmbar
Notfall kombiniert
Notfall kombiniert + sensor
Corridor
Tunable White
Code | Type | Grundfarbe | Schutz vor Eindringen | Steckdose | CCT (K) | Eingang (W) | Lichtstromquelle (lm) | Leuchtenlichtstrom (lm) | Garantie (monat) | ||
---|---|---|---|---|---|---|---|---|---|---|---|
TIT65537 | LED-1L16EMP700KNV83/PM08 4K# | IP44 | LED modul | 4000 | 34 | 5270 | 3640 | 60 | Detail | ||
TIT65533 | LED-1L16E500KNV83/PM08 4K# | IP44 | LED modul | 4000 | 24 | 3910 | 2700 | 60 | Detail | ||
TIT65037 | LED-1L16EMP700KNV83/PM08 3K# | IP44 | LED modul | 3000 | 34 | 5050 | 3480 | 60 | Detail | ||
TIT65033 | LED-1L16E500KNV83/PM08 3K# | IP44 | LED modul | 3000 | 24 | 3750 | 2590 | 60 | Detail | ||
TIT65524 | LED-1L16EMP700KNV83/PC08 4K# | IP44 | LED modul | 4000 | 34 | 5270 | 3480 | 60 | Detail | ||
TIT65520 | LED-1L16E500KNV83/PC08 4K# | IP44 | LED modul | 4000 | 24 | 3910 | 2580 | 60 | Detail | ||
TIT65024 | LED-1L16EMP700KNV83/PC08 3K# | IP44 | LED modul | 3000 | 34 | 5050 | 3330 | 60 | Detail | ||
TIT65020 | LED-1L16E500KNV83/PC08 3K# | IP44 | LED modul | 3000 | 24 | 3750 | 2480 | 60 | Detail | ||
65037 | LED-1L16B07KNV83/PM08 3000# | IP44 | LED modul | 3000 | 33 | 4850 | 3200 | 60 | Detail | ||
65533 | LED-1L16C07KNV83/PM08 4000# | IP44 | LED modul | 4000 | 27 | 3890 | 2680 | 60 | Detail | ||
65537 | LED-1L16B07KNV83/PM08 4000# | IP44 | LED modul | 4000 | 33 | 5070 | 3500 | 60 | Detail | ||
65033 | LED-1L16C07KNV83/PM08 3000# | IP44 | LED modul | 3000 | 27 | 3690 | 2550 | 60 | Detail | ||
65020 | LED-1L16C07KNV83/PC08 3000# | IP44 | LED modul | 3000 | 27 | 3690 | 2440 | 60 | Detail | ||
65024 | LED-1L16B07KNV83/PC08 3000# | IP44 | LED modul | 3000 | 33 | 4850 | 3200 | 60 | Detail | ||
65520 | LED-1L16C07KNV83/PC08 4000# | IP44 | LED modul | 4000 | 27 | 3890 | 2570 | 60 | Detail | ||
65524 | LED-1L16B07KNV83/PC08 4000# | IP44 | LED modul | 4000 | 33 | 5070 | 3350 | 60 | Detail | ||
TIT52514 | IN-22KNV83/PM08* | IP44 | 2×E27 | 2x10 | 60 | Detail | |||||
TIT52510 | IN-22KNV83/PC08* | IP44 | 2×E27 | 2x10 | 60 | Detail |
Code | Type | Grundfarbe | Schutz vor Eindringen | Steckdose | CCT (K) | Eingang (W) | Lichtstromquelle (lm) | Leuchtenlichtstrom (lm) | Garantie (monat) | ||
---|---|---|---|---|---|---|---|---|---|---|---|
TIT65538 | LED-1L16EMP700KNV83/PM08 HF 4K# | IP44 | LED modul | 4000 | 34 | 5270 | 3640 | 60 | Detail | ||
TIT65534 | LED-1L16E500KNV83/PM08 HF 4K# | IP44 | LED modul | 4000 | 24 | 3910 | 2700 | 60 | Detail | ||
TIT65038 | LED-1L16EMP700KNV83/PM08 HF 3K# | IP44 | LED modul | 3000 | 34 | 5050 | 3480 | 60 | Detail | ||
TIT65034 | LED-1L16E500KNV83/PM08 HF 3K# | IP44 | LED modul | 3000 | 24 | 3750 | 2590 | 60 | Detail | ||
TIT65525 | LED-1L16EMP700KNV83/PC08 HF 4K# | IP44 | LED modul | 4000 | 34 | 5270 | 3480 | 60 | Detail | ||
TIT65521 | LED-1L16E500KNV83/PC08 HF 4K# | IP44 | LED modul | 4000 | 24 | 3910 | 2580 | 60 | Detail | ||
TIT65025 | LED-1L16EMP700KNV83/PC08 HF 3K# | IP44 | LED modul | 3000 | 34 | 5050 | 3330 | 60 | Detail | ||
TIT65021 | LED-1L16E500KNV83/PC08 HF 3K# | IP44 | LED modul | 3000 | 24 | 3750 | 2480 | 60 | Detail | ||
65038 | LED-1L16B07KNV83/PM08 HF 3000# | IP44 | LED modul | 3000 | 33 | 4850 | 3200 | 60 | Detail | ||
65534 | LED-1L16C07KNV83/PM08 HF 4000# | IP44 | LED modul | 4000 | 27 | 3890 | 2680 | 60 | Detail | ||
65538 | LED-1L16B07KNV83/PM08 HF 4000# | IP44 | LED modul | 4000 | 33 | 5070 | 3500 | 60 | Detail | ||
65034 | LED-1L16C07KNV83/PM08 HF 3000# | IP44 | LED modul | 3000 | 27 | 3690 | 2550 | 60 | Detail | ||
65021 | LED-1L16C07KNV83/PC08 HF 3000# | IP44 | LED modul | 3000 | 27 | 3690 | 2440 | 60 | Detail | ||
65025 | LED-1L16B07KNV83/PC08 HF 3000# | IP44 | LED modul | 3000 | 33 | 4850 | 3200 | 60 | Detail | ||
65521 | LED-1L16C07KNV83/PC08 HF 4000# | IP44 | LED modul | 4000 | 27 | 3890 | 2570 | 60 | Detail | ||
65525 | LED-1L16B07KNV83/PC08 HF 4000# | IP44 | LED modul | 4000 | 33 | 5070 | 3350 | 60 | Detail | ||
TIT52515 | IN-22KNV83/PM08 HF* | IP44 | 2×E27 | 2x10 | 60 | Detail | |||||
TIT52511 | IN-22KNV83/PC08 HF* | IP44 | 2×E27 | 2x10 | 60 | Detail |
Code | Type | Grundfarbe | Schutz vor Eindringen | Steckdose | CCT (K) | Eingang (W) | Lichtstromquelle (lm) | Leuchtenlichtstrom (lm) | Garantie (monat) | ||
---|---|---|---|---|---|---|---|---|---|---|---|
TIT65539 | LED-1L16E700KNV83/PM08 DALI 4K# | IP44 | LED modul | 4000 | 34 | 5270 | 3640 | 60 | Detail | ||
TIT65535 | LED-1L16E500KNV83/PM08 DALI 4K# | IP44 | LED modul | 4000 | 24 | 3910 | 2700 | 60 | Detail | ||
TIT65039 | LED-1L16E700KNV83/PM08 DALI 3K# | IP44 | LED modul | 3000 | 34 | 5050 | 3480 | 60 | Detail | ||
TIT65526 | LED-1L16E700KNV83/PC08 DALI 4K# | IP44 | LED modul | 4000 | 34 | 5270 | 3480 | 60 | Detail | ||
TIT65522 | LED-1L16E500KNV83/PC08 DALI 4K# | IP44 | LED modul | 4000 | 24 | 3910 | 2580 | 60 | Detail | ||
TIT65026 | LED-1L16E700KNV83/PC08 DALI 3K# | IP44 | LED modul | 3000 | 34 | 5050 | 3330 | 60 | Detail | ||
TIT65022 | LED-1L16E500KNV83/PC08 DALI 3K# | IP44 | LED modul | 3000 | 24 | 3750 | 2480 | 60 | Detail | ||
65039 | LED-1L16B07KNV83/PM08 DALI 3000# | IP44 | LED modul | 3000 | 33 | 4850 | 3200 | 60 | Detail | ||
65535 | LED-1L16C07KNV83/PM08 DALI 4000# | IP44 | LED modul | 4000 | 27 | 3890 | 2680 | 60 | Detail | ||
65539 | LED-1L16B07KNV83/PM08 DALI 4000# | IP44 | LED modul | 4000 | 33 | 5070 | 3500 | 60 | Detail | ||
65035 | LED-1L16C07KNV83/PM08 DALI 3000# | IP44 | LED modul | 3000 | 27 | 3690 | 2550 | 60 | Detail | ||
65022 | LED-1L16C07KNV83/PC08 DALI 3000# | IP44 | LED modul | 3000 | 27 | 3690 | 2440 | 60 | Detail | ||
65026 | LED-1L16B07KNV83/PC08 DALI 3000# | IP44 | LED modul | 3000 | 33 | 4850 | 3200 | 60 | Detail | ||
65522 | LED-1L16C07KNV83/PC08 DALI 4000# | IP44 | LED modul | 4000 | 27 | 3890 | 2570 | 60 | Detail | ||
65526 | LED-1L16B07KNV83/PC08 DALI 4000# | IP44 | LED modul | 4000 | 33 | 5070 | 3350 | 60 | Detail |
Code | Type | Grundfarbe | Schutz vor Eindringen | Steckdose | CCT (K) | Eingang (W) | Lichtstromquelle (lm) | Leuchtenlichtstrom (lm) | Notzeit (h) | Garantie (monat) | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|
TIT65544 | LED-1L16EMP700KNV83/PM08/NK1W 4K# | IP44 | LED modul | 4000 | 34 | 5270 | 3640 | 3 | 60 | Detail | ||
TIT65542 | LED-1L16E500KNV83/PM08/NK1W 4K# | IP44 | LED modul | 4000 | 24 | 3910 | 2700 | 3 | 60 | Detail | ||
TIT65044 | LED-1L16EMP700KNV83/PM08/NK1W 3K# | IP44 | LED modul | 3000 | 34 | 5050 | 3480 | 3 | 60 | Detail | ||
TIT65042 | LED-1L16E500KNV83/PM08/NK1W 3K# | IP44 | LED modul | 3000 | 24 | 3750 | 2590 | 3 | 60 | Detail | ||
TIT65531 | LED-1L16EMP700KNV83/PC08/NK1W 4K# | IP44 | LED modul | 4000 | 34 | 5270 | 3480 | 3 | 60 | Detail | ||
TIT65529 | LED-1L16E500KNV83/PC08/NK1W 4K# | IP44 | LED modul | 4000 | 24 | 3910 | 2580 | 3 | 60 | Detail | ||
TIT65031 | LED-1L16EMP700KNV83/PC08/NK1W 3K# | IP44 | LED modul | 3000 | 34 | 5050 | 3330 | 3 | 60 | Detail | ||
TIT65029 | LED-1L16E500KNV83/PC08/NK1W 3K# | IP44 | LED modul | 3000 | 24 | 3750 | 2480 | 3 | 60 | Detail | ||
65042 | LED-1L16C07KNV83/PM08/NK1W 3000# | IP44 | LED modul | 3000 | 27 | 3690 | 2550 | 3 | 60 | Detail | ||
65044 | LED-1L16B07KNV83/PM08/NK1W 3000# | IP44 | LED modul | 3000 | 33 | 4850 | 3200 | 3 | 60 | Detail | ||
65542 | LED-1L16C07KNV83/PM08/NK1W 4000# | IP44 | LED modul | 4000 | 27 | 3890 | 2680 | 3 | 60 | Detail | ||
65544 | LED-1L16B07KNV83/PM08/NK1W 4000# | IP44 | LED modul | 4000 | 33 | 5070 | 3500 | 3 | 60 | Detail | ||
65531 | LED-1L16B07KNV83/PC08/NK1W 4000# | IP44 | LED modul | 4000 | 33 | 5070 | 3350 | 3 | 60 | Detail | ||
65029 | LED-1L16C07KNV83/PC08/NK1W 3000# | IP44 | LED modul | 3000 | 27 | 3690 | 2440 | 3 | 60 | Detail | ||
65031 | LED-1L16B07KNV83/PC08/NK1W 3000# | IP44 | LED modul | 3000 | 33 | 4850 | 3200 | 3 | 60 | Detail | ||
65529 | LED-1L16C07KNV83/PC08/NK1W 4000# | IP44 | LED modul | 4000 | 27 | 3890 | 2570 | 3 | 60 | Detail |
Code | Type | Grundfarbe | Schutz vor Eindringen | Steckdose | CCT (K) | Eingang (W) | Lichtstromquelle (lm) | Leuchtenlichtstrom (lm) | Notzeit (h) | Garantie (monat) | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|
TIT65545 | LED-1L16EMP700KNV83/PM08/NK1W HF 4K# | IP44 | LED modul | 4000 | 34 | 5270 | 3640 | 3 | 60 | Detail | ||
TIT65543 | LED-1L16E500KNV83/PM08/NK1W HF 4K# | IP44 | LED modul | 4000 | 24 | 3910 | 2700 | 3 | 60 | Detail | ||
TIT65045 | LED-1L16EMP700KNV83/PM08/NK1W HF 3K# | IP44 | LED modul | 3000 | 34 | 5050 | 3480 | 3 | 60 | Detail | ||
TIT65043 | LED-1L16E500KNV83/PM08/NK1W HF 3K# | IP44 | LED modul | 3000 | 24 | 3750 | 2590 | 3 | 60 | Detail | ||
TIT65532 | LED-1L16EMP700KNV83/PC08/NK1W HF 4K# | IP44 | LED modul | 4000 | 34 | 5270 | 3480 | 3 | 60 | Detail | ||
TIT65530 | LED-1L16E500KNV83/PC08/NK1W HF 4K# | IP44 | LED modul | 4000 | 24 | 3910 | 2580 | 3 | 60 | Detail | ||
TIT65032 | LED-1L16EMP700KNV83/PC08/NK1W HF 3K# | IP44 | LED modul | 3000 | 34 | 5050 | 3330 | 3 | 60 | Detail | ||
TIT65030 | LED-1L16E500KNV83/PC08/NK1W HF 3K# | IP44 | LED modul | 3000 | 24 | 3750 | 2480 | 3 | 60 | Detail | ||
65043 | LED-1L16C07KNV83/PM08/NK1W HF 3000# | IP44 | LED modul | 3000 | 27 | 3690 | 2550 | 3 | 60 | Detail | ||
65045 | LED-1L16B07KNV83/PM08/NK1W HF 3000# | IP44 | LED modul | 3000 | 33 | 4850 | 3200 | 3 | 60 | Detail | ||
65543 | LED-1L16C07KNV83/PM08/NK1W HF 4000# | IP44 | LED modul | 4000 | 27 | 3890 | 2680 | 3 | 60 | Detail | ||
65545 | LED-1L16B07KNV83/PM08/NK1W HF 4000# | IP44 | LED modul | 4000 | 33 | 5070 | 3500 | 3 | 60 | Detail | ||
65532 | LED-1L16B07KNV83/PC08/NK1W HF 4000# | IP44 | LED modul | 4000 | 33 | 5070 | 3350 | 3 | 60 | Detail | ||
65030 | LED-1L16C07KNV83/PC08/NK1W HF 3000# | IP44 | LED modul | 3000 | 27 | 3690 | 2440 | 3 | 60 | Detail | ||
65032 | LED-1L16B07KNV83/PC08/NK1W HF 3000# | IP44 | LED modul | 3000 | 33 | 4850 | 3200 | 3 | 60 | Detail | ||
65530 | LED-1L16C07KNV83/PC08/NK1W HF 4000# | IP44 | LED modul | 4000 | 27 | 3890 | 2570 | 3 | 60 | Detail |
Code | Type | Grundfarbe | Schutz vor Eindringen | Steckdose | CCT (K) | Eingang (W) | Lichtstromquelle (lm) | Leuchtenlichtstrom (lm) | Garantie (monat) | ||
---|---|---|---|---|---|---|---|---|---|---|---|
TIT63173 | LED-1L16ET700KNV83/PM08 BT 27-65K# | IP44 | LED modul | 2700-6500 | 33 | 5090 | 3510 | 60 | Detail | ||
TIT63113 | LED-1L16ET700KNV83/PM08 DALI 27-65K# | IP44 | LED modul | 2700-6500 | 33 | 5090 | 3510 | 60 | Detail | ||
TIT63171 | LED-1L16ET700KNV83/PC08 BT 27-65K# | IP44 | LED modul | 2700-6500 | 33 | 5090 | 3360 | 60 | Detail | ||
TIT63111 | LED-1L16ET700KNV83/PC08 DALI 27-65K# | IP44 | LED modul | 2700-6500 | 33 | 5090 | 3360 | 60 | Detail | ||
63113 | LED-1L16DT07KNV83/PM08 2700-6500# | IP44 | LED modul | 2700-6500 | 32 | 4680 | 3230 | 60 | Detail | ||
63173 | LED-1L16DT07KNV83/PM08 BT 2700-6500 | IP44 | LED modul | 2700-6500 | 32 | 4680 | 3230 | 60 | Detail | ||
63111 | LED-1L16DT07KNV83/PC08 2700-6500# | IP44 | LED modul | 2700-6500 | 32 | 4680 | 3090 | 60 | Detail | ||
63171 | LED-1L16DT07KNV83/PC08 BT 2700-6500 | IP44 | LED modul | 2700-6500 | 32 | 4680 | 3090 | 60 | Detail |
