ISIS P2 PM

Product code:63203

Type:Z11/PM2/a4 B*

Krátký popis

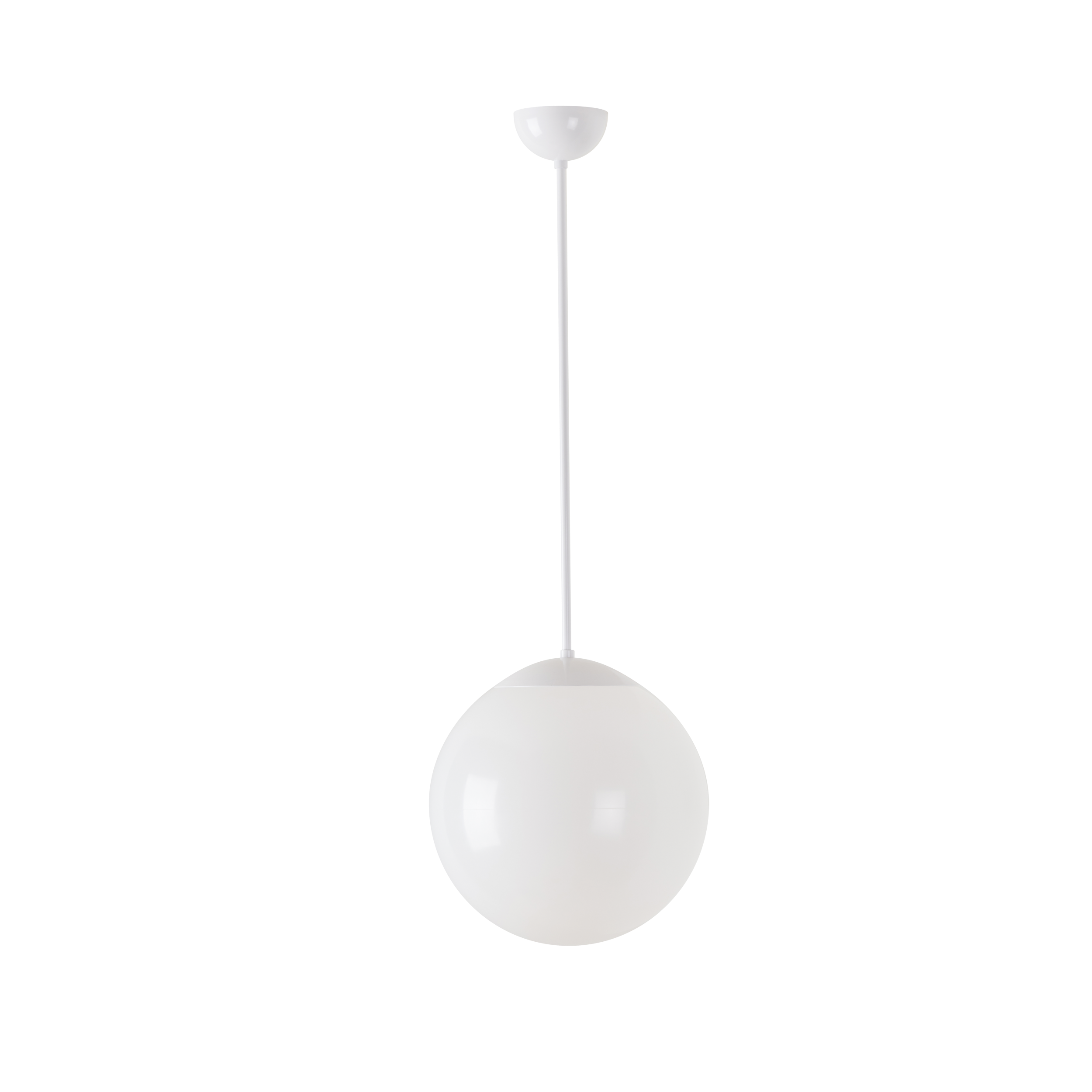

White pendant E27 light ON/OFF and PMMA shade.

Model

Other products

Documents to download

Technical

Types of luminaires:	Classic on/off
Mounting type:	pendant
Base material:	steel
Shade material:	glossy polymethyl methacrylate
Base color:	white Ral9003
Shade color:	white
Holding the shade:	steel holder
Mounting location:	ceiling
Width:	300 mm
Length:	300 mm
Height:	300 mm
Diameter:	300 mm
mounting holes (diameter):	není
Installation wire (diameter):	není
Hinge lengths:	800 mm
Impact strength:	IK06

Electric

Voltage type:	AC
Input voltage:	220 - 240 V
Number of power supplies:	1
Power of one supply:	10 W
Output:	10 W
Ingress Protection:	IP40
Socket:	E27
terminal block:	none

Luminous

Logistic

EAN	8591728632038
Weight NTTO	1.6 Kg
Weight BTTO	2.4 Kg
Number of cartons	2
Package volume	0.057 m³
Package 1 width	0.31 m
Package 1 length	0,31 m
Package 1 height	0,31 m
Package 2 width	0,165 m
Package 2 length	0,165 m
Package 2 height	1 m
Warranty:	60

Code	Type	Ingress Protection	Socket	CCT (K)	Input [W]	Lum. flux of light source [lm]	Lum. flux of luminaire [lm]	Délka závěsu (mm)	Warranty (month)
ISI63894	LED-5L06E450Z11/PM2/a5 NB 4K#	IP40	LED modul	4000	20	3510	3090	1000	60	Detail
ISI63893	LED-5L06E450Z11/PM2/a4 NB 4K#	IP40	LED modul	4000	20	3510	3090	800	60	Detail
ISI63892	LED-5L06E450Z11/PM2/a3 NB 4K#	IP40	LED modul	4000	20	3510	3090	600	60	Detail
ISI63891	LED-5L06E450Z11/PM2/a2 NB 4K#	IP40	LED modul	4000	20	3510	3090	400	60	Detail
ISI63890	LED-5L06E450Z11/PM2/a1 NB 4K#	IP40	LED modul	4000	20	3510	3090	200	60	Detail
ISI63884	LED-5L06E450Z11/PM2/a5 NL 4K#	IP40	LED modul	4000	20	3510	3090	1000	60	Detail
ISI63883	LED-5L06E450Z11/PM2/a4 NL 4K#	IP40	LED modul	4000	20	3510	3090	800	60	Detail
ISI63882	LED-5L06E450Z11/PM2/a3 NL 4K#	IP40	LED modul	4000	20	3510	3090	600	60	Detail
ISI63881	LED-5L06E450Z11/PM2/a2 NL 4K#	IP40	LED modul	4000	20	3510	3090	400	60	Detail
ISI63880	LED-5L06E450Z11/PM2/a1 NL 4K#	IP40	LED modul	4000	20	3510	3090	200	60	Detail
ISI63874	LED-5L06E450Z11/PM2/a5 MS 4K#	IP40	LED modul	4000	20	3510	3090	1000	60	Detail
ISI63873	LED-5L06E450Z11/PM2/a4 MS 4K#	IP40	LED modul	4000	20	3510	3090	800	60	Detail
ISI63872	LED-5L06E450Z11/PM2/a3 MS 4K#	IP40	LED modul	4000	20	3510	3090	600	60	Detail
ISI63871	LED-5L06E450Z11/PM2/a2 MS 4K#	IP40	LED modul	4000	20	3510	3090	400	60	Detail
ISI63870	LED-5L06E450Z11/PM2/a1 MS 4K#	IP40	LED modul	4000	20	3510	3090	200	60	Detail
ISI63864	LED-5L06E450Z11/PM2/a5 C 4K#	IP40	LED modul	4000	20	3510	3090	1000	60	Detail
ISI63863	LED-5L06E450Z11/PM2/a4 C 4K#	IP40	LED modul	4000	20	3510	3090	800	60	Detail
ISI63862	LED-5L06E450Z11/PM2/a3 C 4K#	IP40	LED modul	4000	20	3510	3090	600	60	Detail
ISI63861	LED-5L06E450Z11/PM2/a2 C 4K#	IP40	LED modul	4000	20	3510	3090	400	60	Detail
ISI63860	LED-5L06E450Z11/PM2/a1 C 4K#	IP40	LED modul	4000	20	3510	3090	200	60	Detail
ISI63854	LED-5L06E450Z11/PM2/a5 B 4K#	IP40	LED modul	4000	20	3510	3090	1000	60	Detail
ISI63853	LED-5L06E450Z11/PM2/a4 B 4K#	IP40	LED modul	4000	20	3510	3090	800	60	Detail
ISI63852	LED-5L06E450Z11/PM2/a3 B 4K#	IP40	LED modul	4000	20	3510	3090	600	60	Detail
ISI63851	LED-5L06E450Z11/PM2/a2 B 4K#	IP40	LED modul	4000	20	3510	3090	400	60	Detail
ISI63850	LED-5L06E450Z11/PM2/a1 B 4K#	IP40	LED modul	4000	20	3510	3090	200	60	Detail
ISI63394	LED-5L06E450Z11/PM2/a5 NB 3K#	IP40	LED modul	3000	20	3360	2960	1000	60	Detail
ISI63393	LED-5L06E450Z11/PM2/a4 NB 3K#	IP40	LED modul	3000	20	3360	2960	800	60	Detail
ISI63392	LED-5L06E450Z11/PM2/a3 NB 3K#	IP40	LED modul	3000	20	3360	2960	600	60	Detail
ISI63391	LED-5L06E450Z11/PM2/a2 NB 3K#	IP40	LED modul	3000	20	3360	2960	400	60	Detail
ISI63390	LED-5L06E450Z11/PM2/a1 NB 3K#	IP40	LED modul	3000	20	3360	2960	200	60	Detail
ISI63384	LED-5L06E450Z11/PM2/a5 NL 3K#	IP40	LED modul	3000	20	3360	2960	1000	60	Detail
ISI63383	LED-5L06E450Z11/PM2/a4 NL 3K#	IP40	LED modul	3000	20	3360	2960	800	60	Detail
ISI63382	LED-5L06E450Z11/PM2/a3 NL 3K#	IP40	LED modul	3000	20	3360	2960	600	60	Detail
ISI63381	LED-5L06E450Z11/PM2/a2 NL 3K#	IP40	LED modul	3000	20	3360	2960	400	60	Detail
ISI63380	LED-5L06E450Z11/PM2/a1 NL 3K#	IP40	LED modul	3000	20	3360	2960	200	60	Detail
ISI63374	LED-5L06E450Z11/PM2/a5 MS 3K#	IP40	LED modul	3000	20	3360	2960	1000	60	Detail
ISI63373	LED-5L06E450Z11/PM2/a4 MS 3K#	IP40	LED modul	3000	20	3360	2960	800	60	Detail
ISI63372	LED-5L06E450Z11/PM2/a3 MS 3K#	IP40	LED modul	3000	20	3360	2960	600	60	Detail
ISI63371	LED-5L06E450Z11/PM2/a2 MS 3K#	IP40	LED modul	3000	20	3360	2960	400	60	Detail
ISI63370	LED-5L06E450Z11/PM2/a1 MS 3K#	IP40	LED modul	3000	20	3360	2960	200	60	Detail
ISI63364	LED-5L06E450Z11/PM2/a5 C 3K#	IP40	LED modul	3000	20	3360	2960	1000	60	Detail
ISI63363	LED-5L06E450Z11/PM2/a4 C 3K#	IP40	LED modul	3000	20	3360	2960	800	60	Detail
ISI63362	LED-5L06E450Z11/PM2/a3 C 3K#	IP40	LED modul	3000	20	3360	2960	600	60	Detail
ISI63361	LED-5L06E450Z11/PM2/a2 C 3K#	IP40	LED modul	3000	20	3360	2960	400	60	Detail
ISI63360	LED-5L06E450Z11/PM2/a1 C 3K#	IP40	LED modul	3000	20	3360	2960	200	60	Detail
ISI63354	LED-5L06E450Z11/PM2/a5 B 3K#	IP40	LED modul	3000	20	3360	2960	1000	60	Detail
ISI63353	LED-5L06E450Z11/PM2/a4 B 3K#	IP40	LED modul	3000	20	3360	2960	800	60	Detail
ISI63352	LED-5L06E450Z11/PM2/a3 B 3K#	IP40	LED modul	3000	20	3360	2960	600	60	Detail
ISI63351	LED-5L06E450Z11/PM2/a2 B 3K#	IP40	LED modul	3000	20	3360	2960	400	60	Detail
ISI63350	LED-5L06E450Z11/PM2/a1 B 3K#	IP40	LED modul	3000	20	3360	2960	200	60	Detail
63891	LED-5L06C04Z11/PM2/a2 NB 4000#	IP40	LED modul	4000	20	3130	2760	400	60	Detail
63892	LED-5L06C04Z11/PM2/a3 NB 4000#	IP40	LED modul	4000	20	3130	2760	600	60	Detail
63893	LED-5L06C04Z11/PM2/a4 NB 4000#	IP40	LED modul	4000	20	3130	2760	800	60	Detail
63894	LED-5L06C04Z11/PM2/a5 NB 4000#	IP40	LED modul	4000	20	3130	2760	1000	60	Detail
63870	LED-5L06C04Z11/PM2/a1 MS 4000#	IP40	LED modul	4000	20	3130	2760	200	60	Detail
63871	LED-5L06C04Z11/PM2/a2 MS 4000#	IP40	LED modul	4000	20	3130	2760	400	60	Detail
63872	LED-5L06C04Z11/PM2/a3 MS 4000#	IP40	LED modul	4000	20	3130	2760	600	60	Detail
63873	LED-5L06C04Z11/PM2/a4 MS 4000#	IP40	LED modul	4000	20	3130	2760	800	60	Detail
63874	LED-5L06C04Z11/PM2/a5 MS 4000#	IP40	LED modul	4000	20	3130	2760	1000	60	Detail
63880	LED-5L06C04Z11/PM2/a1 NL 4000#	IP40	LED modul	4000	20	3130	2760	200	60	Detail
63881	LED-5L06C04Z11/PM2/a2 NL 4000#	IP40	LED modul	4000	20	3130	2760	400	60	Detail
63882	LED-5L06C04Z11/PM2/a3 NL 4000#	IP40	LED modul	4000	20	3130	2760	600	60	Detail
63883	LED-5L06C04Z11/PM2/a4 NL 4000#	IP40	LED modul	4000	20	3130	2760	800	60	Detail
63884	LED-5L06C04Z11/PM2/a5 NL 4000#	IP40	LED modul	4000	20	3130	2760	1000	60	Detail
63890	LED-5L06C04Z11/PM2/a1 NB 4000#	IP40	LED modul	4000	20	3130	2760	200	60	Detail
63391	LED-5L06C04Z11/PM2/a2 NB 3000#	IP40	LED modul	3000	20	2970	2610	400	60	Detail
63392	LED-5L06C04Z11/PM2/a3 NB 3000#	IP40	LED modul	3000	20	2970	2610	600	60	Detail
63393	LED-5L06C04Z11/PM2/a4 NB 3000#	IP40	LED modul	3000	20	2970	2610	800	60	Detail
63394	LED-5L06C04Z11/PM2/a5 NB 3000#	IP40	LED modul	3000	20	2970	2610	1000	60	Detail
63850	LED-5L06C04Z11/PM2/a1 B 4000#	IP40	LED modul	4000	20	3130	2760	200	60	Detail
63851	LED-5L06C04Z11/PM2/a2 B 4000#	IP40	LED modul	4000	20	3130	2760	400	60	Detail
63852	LED-5L06C04Z11/PM2/a3 B 4000#	IP40	LED modul	4000	20	3130	2760	600	60	Detail
63853	LED-5L06C04Z11/PM2/a4 B 4000#	IP40	LED modul	4000	20	3130	2760	800	60	Detail
63854	LED-5L06C04Z11/PM2/a5 B 4000#	IP40	LED modul	4000	20	3130	2760	1000	60	Detail
63860	LED-5L06C04Z11/PM2/a1 C 4000#	IP40	LED modul	4000	20	3130	2760	200	60	Detail
63861	LED-5L06C04Z11/PM2/a2 C 4000#	IP40	LED modul	4000	20	3130	2760	400	60	Detail
63862	LED-5L06C04Z11/PM2/a3 C 4000#	IP40	LED modul	4000	20	3130	2760	600	60	Detail
63863	LED-5L06C04Z11/PM2/a4 C 4000#	IP40	LED modul	4000	20	3130	2760	800	60	Detail
63864	LED-5L06C04Z11/PM2/a5 C 4000#	IP40	LED modul	4000	20	3130	2760	1000	60	Detail
63370	LED-5L06C04Z11/PM2/a1 MS 3000#	IP40	LED modul	3000	20	2970	2610	200	60	Detail
63371	LED-5L06C04Z11/PM2/a2 MS 3000#	IP40	LED modul	3000	20	2970	2610	400	60	Detail
63372	LED-5L06C04Z11/PM2/a3 MS 3000#	IP40	LED modul	3000	20	2970	2610	600	60	Detail
63373	LED-5L06C04Z11/PM2/a4 MS 3000#	IP40	LED modul	3000	20	2970	2610	800	60	Detail
63374	LED-5L06C04Z11/PM2/a5 MS 3000#	IP40	LED modul	3000	20	2970	2610	1000	60	Detail
63380	LED-5L06C04Z11/PM2/a1 NL 3000#	IP40	LED modul	3000	20	2970	2610	200	60	Detail
63381	LED-5L06C04Z11/PM2/a2 NL 3000#	IP40	LED modul	3000	20	2970	2610	400	60	Detail
63382	LED-5L06C04Z11/PM2/a3 NL 3000#	IP40	LED modul	3000	20	2970	2610	600	60	Detail
63383	LED-5L06C04Z11/PM2/a4 NL 3000#	IP40	LED modul	3000	20	2970	2610	800	60	Detail
63384	LED-5L06C04Z11/PM2/a5 NL 3000#	IP40	LED modul	3000	20	2970	2610	1000	60	Detail
63390	LED-5L06C04Z11/PM2/a1 NB 3000#	IP40	LED modul	3000	20	2970	2610	200	60	Detail
63350	LED-5L06C04Z11/PM2/a1 B 3000#	IP40	LED modul	3000	20	2970	2610	200	60	Detail
63351	LED-5L06C04Z11/PM2/a2 B 3000#	IP40	LED modul	3000	20	2970	2610	400	60	Detail
63352	LED-5L06C04Z11/PM2/a3 B 3000#	IP40	LED modul	3000	20	2970	2610	600	60	Detail
63353	LED-5L06C04Z11/PM2/a4 B 3000#	IP40	LED modul	3000	20	2970	2610	800	60	Detail
63354	LED-5L06C04Z11/PM2/a5 B 3000#	IP40	LED modul	3000	20	2970	2610	1000	60	Detail
63360	LED-5L06C04Z11/PM2/a1 C 3000#	IP40	LED modul	3000	20	2970	2610	200	60	Detail
63361	LED-5L06C04Z11/PM2/a2 C 3000#	IP40	LED modul	3000	20	2970	2610	400	60	Detail
63362	LED-5L06C04Z11/PM2/a3 C 3000#	IP40	LED modul	3000	20	2970	2610	600	60	Detail
63363	LED-5L06C04Z11/PM2/a4 C 3000#	IP40	LED modul	3000	20	2970	2610	800	60	Detail
63364	LED-5L06C04Z11/PM2/a5 C 3000#	IP40	LED modul	3000	20	2970	2610	1000	60	Detail
63221	Z11/PM2/a2 NB*	IP40	E27		10			400	60	Detail
63222	Z11/PM2/a3 NB*	IP40	E27		10			600	60	Detail
63223	Z11/PM2/a4 NB*	IP40	E27		10			800	60	Detail
63224	Z11/PM2/a5 NB*	IP40	E27		10			1000	60	Detail
63200	Z11/PM2/a1 B*	IP40	E27		10			200	60	Detail
63201	Z11/PM2/a2 B*	IP40	E27		10			400	60	Detail
63202	Z11/PM2/a3 B*	IP40	E27		10			600	60	Detail
63204	Z11/PM2/a5 B*	IP40	E27		10			1000	60	Detail
63205	Z11/PM2/a1 C*	IP40	E27		10			200	60	Detail
63206	Z11/PM2/a2 C*	IP40	E27		10			400	60	Detail
63207	Z11/PM2/a3 C*	IP40	E27		10			600	60	Detail
63208	Z11/PM2/a4 C*	IP40	E27		10			800	60	Detail
63209	Z11/PM2/a5 C*	IP40	E27		10			1000	60	Detail
63210	Z11/PM2/a1 MS*	IP40	E27		10			200	60	Detail
63211	Z11/PM2/a2 MS*	IP40	E27		10			400	60	Detail
63212	Z11/PM2/a3 MS*	IP40	E27		10			600	60	Detail
63213	Z11/PM2/a4 MS*	IP40	E27		10			800	60	Detail
63214	Z11/PM2/a5 MS*	IP40	E27		10			1000	60	Detail
63215	Z11/PM2/a1 NL*	IP40	E27		10			200	60	Detail
63216	Z11/PM2/a2 NL*	IP40	E27		10			400	60	Detail
63217	Z11/PM2/a3 NL*	IP40	E27		10			600	60	Detail
63218	Z11/PM2/a4 NL*	IP40	E27		10			800	60	Detail
63219	Z11/PM2/a5 NL*	IP40	E27		10			1000	60	Detail
63220	Z11/PM2/a1 NB*	IP40	E27		10			200	60	Detail

Code	Type	Ingress Protection	Socket	Input [W]	Délka závěsu (mm)	Warranty (month)
ISI63344	Z11/PM2/a5 NB HF*	IP40	E27	10	1000	60	Detail
ISI63343	Z11/PM2/a4 NB HF*	IP40	E27	10	800	60	Detail
ISI63342	Z11/PM2/a3 NB HF*	IP40	E27	10	600	60	Detail
ISI63341	Z11/PM2/a2 NB HF*	IP40	E27	10	400	60	Detail
ISI63340	Z11/PM2/a1 NB HF*	IP40	E27	10	200	60	Detail
ISI63339	Z11/PM2/a5 NL HF*	IP40	E27	10	1000	60	Detail
ISI63338	Z11/PM2/a4 NL HF*	IP40	E27	10	800	60	Detail
ISI63337	Z11/PM2/a3 NL HF*	IP40	E27	10	600	60	Detail
ISI63336	Z11/PM2/a2 NL HF*	IP40	E27	10	400	60	Detail
ISI63335	Z11/PM2/a1 NL HF*	IP40	E27	10	200	60	Detail
ISI63334	Z11/PM2/a5 MS HF*	IP40	E27	10	1000	60	Detail
ISI63333	Z11/PM2/a4 MS HF*	IP40	E27	10	800	60	Detail
ISI63332	Z11/PM2/a3 MS HF*	IP40	E27	10	600	60	Detail
ISI63331	Z11/PM2/a2 MS HF*	IP40	E27	10	400	60	Detail
ISI63330	Z11/PM2/a1 MS HF*	IP40	E27	10	200	60	Detail
ISI63329	Z11/PM2/a5 C HF*	IP40	E27	10	1000	60	Detail
ISI63328	Z11/PM2/a4 C HF*	IP40	E27	10	800	60	Detail
ISI63327	Z11/PM2/a3 C HF*	IP40	E27	10	600	60	Detail
ISI63326	Z11/PM2/a2 C HF*	IP40	E27	10	400	60	Detail
ISI63325	Z11/PM2/a1 C HF*	IP40	E27	10	200	60	Detail
ISI63324	Z11/PM2/a5 B HF*	IP40	E27	10	1000	60	Detail
ISI63323	Z11/PM2/a4 B HF*	IP40	E27	10	800	60	Detail
ISI63322	Z11/PM2/a3 B HF*	IP40	E27	10	600	60	Detail
ISI63321	Z11/PM2/a2 B HF*	IP40	E27	10	400	60	Detail
ISI63320	Z11/PM2/a1 B HF*	IP40	E27	10	200	60	Detail

Code	Type	Ingress Protection	Socket	CCT (K)	Input [W]	Lum. flux of light source [lm]	Lum. flux of luminaire [lm]	Délka závěsu (mm)	Warranty (month)
ISI63899	LED-5L06E450Z11/PM2/a5 NB DALI 4K#	IP40	LED modul	4000	20	3510	3090	1000	60	Detail
ISI63898	LED-5L06E450Z11/PM2/a4 NB DALI 4K#	IP40	LED modul	4000	20	3510	3090	800	60	Detail
ISI63897	LED-5L06E450Z11/PM2/a3 NB DALI 4K#	IP40	LED modul	4000	20	3510	3090	600	60	Detail
ISI63896	LED-5L06E450Z11/PM2/a2 NB DALI 4K#	IP40	LED modul	4000	20	3510	3090	400	60	Detail
ISI63895	LED-5L06E450Z11/PM2/a1 NB DALI 4K#	IP40	LED modul	4000	20	3510	3090	200	60	Detail
ISI63889	LED-5L06E450Z11/PM2/a5 NL DALI 4K#	IP40	LED modul	4000	20	3510	3090	1000	60	Detail
ISI63888	LED-5L06E450Z11/PM2/a4 NL DALI 4K#	IP40	LED modul	4000	20	3510	3090	800	60	Detail
ISI63887	LED-5L06E450Z11/PM2/a3 NL DALI 4K#	IP40	LED modul	4000	20	3510	3090	600	60	Detail
ISI63886	LED-5L06E450Z11/PM2/a2 NL DALI 4K#	IP40	LED modul	4000	20	3510	3090	400	60	Detail
ISI63885	LED-5L06E450Z11/PM2/a1 NL DALI 4K#	IP40	LED modul	4000	20	3510	3090	200	60	Detail
ISI63879	LED-5L06E450Z11/PM2/a5 MS DALI 4K#	IP40	LED modul	4000	20	3510	3090	1000	60	Detail
ISI63878	LED-5L06E450Z11/PM2/a4 MS DALI 4K#	IP40	LED modul	4000	20	3510	3090	800	60	Detail
ISI63877	LED-5L06E450Z11/PM2/a3 MS DALI 4K#	IP40	LED modul	4000	20	3510	3090	600	60	Detail
ISI63876	LED-5L06E450Z11/PM2/a2 MS DALI 4K#	IP40	LED modul	4000	20	3510	3090	400	60	Detail
ISI63875	LED-5L06E450Z11/PM2/a1 MS DALI 4K#	IP40	LED modul	4000	20	3510	3090	200	60	Detail
ISI63869	LED-5L06E450Z11/PM2/a5 C DALI 4K#	IP40	LED modul	4000	20	3510	3090	1000	60	Detail
ISI63868	LED-5L06E450Z11/PM2/a4 C DALI 4K#	IP40	LED modul	4000	20	3510	3090	800	60	Detail
ISI63867	LED-5L06E450Z11/PM2/a3 C DALI 4K#	IP40	LED modul	4000	20	3510	3090	600	60	Detail
ISI63866	LED-5L06E450Z11/PM2/a2 C DALI 4K#	IP40	LED modul	4000	20	3510	3090	400	60	Detail
ISI63865	LED-5L06E450Z11/PM2/a1 C DALI 4K#	IP40	LED modul	4000	20	3510	3090	200	60	Detail
ISI63859	LED-5L06E450Z11/PM2/a5 B DALI 4K#	IP40	LED modul	4000	20	3510	3090	1000	60	Detail
ISI63858	LED-5L06E450Z11/PM2/a4 B DALI 4K#	IP40	LED modul	4000	20	3510	3090	800	60	Detail
ISI63857	LED-5L06E450Z11/PM2/a3 B DALI 4K#	IP40	LED modul	4000	20	3510	3090	600	60	Detail
ISI63856	LED-5L06E450Z11/PM2/a2 B DALI 4K#	IP40	LED modul	4000	20	3510	3090	400	60	Detail
ISI63855	LED-5L06E450Z11/PM2/a1 B DALI 4K#	IP40	LED modul	4000	20	3510	3090	200	60	Detail
ISI63399	LED-5L06E450Z11/PM2/a5 NB DALI 3K#	IP40	LED modul	3000	20	3360	2960	1000	60	Detail
ISI63398	LED-5L06E450Z11/PM2/a4 NB DALI 3K#	IP40	LED modul	3000	20	3360	2960	800	60	Detail
ISI63397	LED-5L06E450Z11/PM2/a3 NB DALI 3K#	IP40	LED modul	3000	20	3360	2960	600	60	Detail
ISI63396	LED-5L06E450Z11/PM2/a2 NB DALI 3K#	IP40	LED modul	3000	20	3360	2960	400	60	Detail
ISI63395	LED-5L06E450Z11/PM2/a1 NB DALI 3K#	IP40	LED modul	3000	20	3360	2960	200	60	Detail
ISI63389	LED-5L06E450Z11/PM2/a5 NL DALI 3K#	IP40	LED modul	3000	20	3360	2960	1000	60	Detail
ISI63388	LED-5L06E450Z11/PM2/a4 NL DALI 3K#	IP40	LED modul	3000	20	3360	2960	800	60	Detail
ISI63387	LED-5L06E450Z11/PM2/a3 NL DALI 3K#	IP40	LED modul	3000	20	3360	2960	600	60	Detail
ISI63386	LED-5L06E450Z11/PM2/a2 NL DALI 3K#	IP40	LED modul	3000	20	3360	2960	400	60	Detail
ISI63385	LED-5L06E450Z11/PM2/a1 NL DALI 3K#	IP40	LED modul	3000	20	3360	2960	200	60	Detail
ISI63379	LED-5L06E450Z11/PM2/a5 MS DALI 3K#	IP40	LED modul	3000	20	3360	2960	1000	60	Detail
ISI63378	LED-5L06E450Z11/PM2/a4 MS DALI 3K#	IP40	LED modul	3000	20	3360	2960	800	60	Detail
ISI63377	LED-5L06E450Z11/PM2/a3 MS DALI 3K#	IP40	LED modul	3000	20	3360	2960	600	60	Detail
ISI63376	LED-5L06E450Z11/PM2/a2 MS DALI 3K#	IP40	LED modul	3000	20	3360	2960	400	60	Detail
ISI63375	LED-5L06E450Z11/PM2/a1 MS DALI 3K#	IP40	LED modul	3000	20	3360	2960	200	60	Detail
ISI63369	LED-5L06E450Z11/PM2/a5 C DALI 3K#	IP40	LED modul	3000	20	3360	2960	1000	60	Detail
ISI63368	LED-5L06E450Z11/PM2/a4 C DALI 3K#	IP40	LED modul	3000	20	3360	2960	800	60	Detail
ISI63367	LED-5L06E450Z11/PM2/a3 C DALI 3K#	IP40	LED modul	3000	20	3360	2960	600	60	Detail
ISI63366	LED-5L06E450Z11/PM2/a2 C DALI 3K#	IP40	LED modul	3000	20	3360	2960	400	60	Detail
ISI63365	LED-5L06E450Z11/PM2/a1 C DALI 3K#	IP40	LED modul	3000	20	3360	2960	200	60	Detail
ISI63359	LED-5L06E450Z11/PM2/a5 B DALI 3K#	IP40	LED modul	3000	20	3360	2960	1000	60	Detail
ISI63358	LED-5L06E450Z11/PM2/a4 B DALI 3K#	IP40	LED modul	3000	20	3360	2960	800	60	Detail
ISI63357	LED-5L06E450Z11/PM2/a3 B DALI 3K#	IP40	LED modul	3000	20	3360	2960	600	60	Detail
ISI63356	LED-5L06E450Z11/PM2/a2 B DALI 3K#	IP40	LED modul	3000	20	3360	2960	400	60	Detail
ISI63355	LED-5L06E450Z11/PM2/a1 B DALI 3K#	IP40	LED modul	3000	20	3360	2960	200	60	Detail
63895	LED-5L06C04Z11/PM2/a1 NB DALI 4000#	IP40	LED modul	4000	20	3130	2760	200	60	Detail
63896	LED-5L06C04Z11/PM2/a2 NB DALI 4000#	IP40	LED modul	4000	20	3130	2760	400	60	Detail
63897	LED-5L06C04Z11/PM2/a3 NB DALI 4000#	IP40	LED modul	4000	20	3130	2760	600	60	Detail
63898	LED-5L06C04Z11/PM2/a4 NB DALI 4000#	IP40	LED modul	4000	20	3130	2760	800	60	Detail
63899	LED-5L06C04Z11/PM2/a5 NB DALI 4000#	IP40	LED modul	4000	20	3130	2760	1000	60	Detail
63866	LED-5L06C04Z11/PM2/a2 C DALI 4000#	IP40	LED modul	4000	20	3130	2760	400	60	Detail
63867	LED-5L06C04Z11/PM2/a3 C DALI 4000#	IP40	LED modul	4000	20	3130	2760	600	60	Detail
63868	LED-5L06C04Z11/PM2/a4 C DALI 4000#	IP40	LED modul	4000	20	3130	2760	800	60	Detail
63869	LED-5L06C04Z11/PM2/a5 C DALI 4000#	IP40	LED modul	4000	20	3130	2760	1000	60	Detail
63875	LED-5L06C04Z11/PM2/a1 MS DALI 4000#	IP40	LED modul	4000	20	3130	2760	200	60	Detail
63876	LED-5L06C04Z11/PM2/a2 MS DALI 4000#	IP40	LED modul	4000	20	3130	2760	400	60	Detail
63877	LED-5L06C04Z11/PM2/a3 MS DALI 4000#	IP40	LED modul	4000	20	3130	2760	600	60	Detail
63878	LED-5L06C04Z11/PM2/a4 MS DALI 4000#	IP40	LED modul	4000	20	3130	2760	800	60	Detail
63879	LED-5L06C04Z11/PM2/a5 MS DALI 4000#	IP40	LED modul	4000	20	3130	2760	1000	60	Detail
63885	LED-5L06C04Z11/PM2/a1 NL DALI 4000#	IP40	LED modul	4000	20	3130	2760	200	60	Detail
63886	LED-5L06C04Z11/PM2/a2 NL DALI 4000#	IP40	LED modul	4000	20	3130	2760	400	60	Detail
63887	LED-5L06C04Z11/PM2/a3 NL DALI 4000#	IP40	LED modul	4000	20	3130	2760	600	60	Detail
63888	LED-5L06C04Z11/PM2/a4 NL DALI 4000#	IP40	LED modul	4000	20	3130	2760	800	60	Detail
63889	LED-5L06C04Z11/PM2/a5 NL DALI 4000#	IP40	LED modul	4000	20	3130	2760	1000	60	Detail
63395	LED-5L06C04Z11/PM2/a1 NB DALI 3000#	IP40	LED modul	3000	20	2970	2610	200	60	Detail
63396	LED-5L06C04Z11/PM2/a2 NB DALI 3000#	IP40	LED modul	3000	20	2970	2610	400	60	Detail
63397	LED-5L06C04Z11/PM2/a3 NB DALI 3000#	IP40	LED modul	3000	20	2970	2610	600	60	Detail
63398	LED-5L06C04Z11/PM2/a4 NB DALI 3000#	IP40	LED modul	3000	20	2970	2610	800	60	Detail
63399	LED-5L06C04Z11/PM2/a5 NB DALI 3000#	IP40	LED modul	3000	20	2970	2610	1000	60	Detail
63855	LED-5L06C04Z11/PM2/a1 B DALI 4000#	IP40	LED modul	4000	20	3130	2760	200	60	Detail
63856	LED-5L06C04Z11/PM2/a2 B DALI 4000#	IP40	LED modul	4000	20	3130	2760	400	60	Detail
63857	LED-5L06C04Z11/PM2/a3 B DALI 4000#	IP40	LED modul	4000	20	3130	2760	600	60	Detail
63858	LED-5L06C04Z11/PM2/a4 B DALI 4000#	IP40	LED modul	4000	20	3130	2760	800	60	Detail
63859	LED-5L06C04Z11/PM2/a5 B DALI 4000#	IP40	LED modul	4000	20	3130	2760	1000	60	Detail
63865	LED-5L06C04Z11/PM2/a1 C DALI 4000#	IP40	LED modul	4000	20	3130	2760	200	60	Detail
63366	LED-5L06C04Z11/PM2/a2 C DALI 3000#	IP40	LED modul	3000	20	2970	2610	400	60	Detail
63367	LED-5L06C04Z11/PM2/a3 C DALI 3000#	IP40	LED modul	3000	20	2970	2610	600	60	Detail
63368	LED-5L06C04Z11/PM2/a4 C DALI 3000#	IP40	LED modul	3000	20	2970	2610	800	60	Detail
63369	LED-5L06C04Z11/PM2/a5 C DALI 3000#	IP40	LED modul	3000	20	2970	2610	1000	60	Detail
63375	LED-5L06C04Z11/PM2/a1 MS DALI 3000#	IP40	LED modul	3000	20	2970	2610	200	60	Detail
63376	LED-5L06C04Z11/PM2/a2 MS DALI 3000#	IP40	LED modul	3000	20	2970	2610	400	60	Detail
63377	LED-5L06C04Z11/PM2/a3 MS DALI 3000#	IP40	LED modul	3000	20	2970	2610	600	60	Detail
63378	LED-5L06C04Z11/PM2/a4 MS DALI 3000#	IP40	LED modul	3000	20	2970	2610	800	60	Detail
63379	LED-5L06C04Z11/PM2/a5 MS DALI 3000#	IP40	LED modul	3000	20	2970	2610	1000	60	Detail
63385	LED-5L06C04Z11/PM2/a1 NL DALI 3000#	IP40	LED modul	3000	20	2970	2610	200	60	Detail
63386	LED-5L06C04Z11/PM2/a2 NL DALI 3000#	IP40	LED modul	3000	20	2970	2610	400	60	Detail
63387	LED-5L06C04Z11/PM2/a3 NL DALI 3000#	IP40	LED modul	3000	20	2970	2610	600	60	Detail
63388	LED-5L06C04Z11/PM2/a4 NL DALI 3000#	IP40	LED modul	3000	20	2970	2610	800	60	Detail
63389	LED-5L06C04Z11/PM2/a5 NL DALI 3000#	IP40	LED modul	3000	20	2970	2610	1000	60	Detail
63355	LED-5L06C04Z11/PM2/a1 B DALI 3000#	IP40	LED modul	3000	20	2970	2610	200	60	Detail
63356	LED-5L06C04Z11/PM2/a2 B DALI 3000#	IP40	LED modul	3000	20	2970	2610	400	60	Detail
63357	LED-5L06C04Z11/PM2/a3 B DALI 3000#	IP40	LED modul	3000	20	2970	2610	600	60	Detail
63358	LED-5L06C04Z11/PM2/a4 B DALI 3000#	IP40	LED modul	3000	20	2970	2610	800	60	Detail
63359	LED-5L06C04Z11/PM2/a5 B DALI 3000#	IP40	LED modul	3000	20	2970	2610	1000	60	Detail
63365	LED-5L06C04Z11/PM2/a1 C DALI 3000#	IP40	LED modul	3000	20	2970	2610	200	60	Detail

230V

IP40

Accessories

PM2

Lampshade

Detail

❮

❯

Reference

ISIS P

View details

Do you have questions?

(+420) 567 210 023

osmont@osmont.cz

Contact form

4019-CE_Zx11_EN.pdf
Care_maintenance_luminaires_2018.pdf
ADRIA_P_ASTRA_P_ISIS_P_EN.pdf
Jistice_Circuit_breaker.pdf
ISIS_PM_P_L_S_DATASHEET_2022_EN.pdf
ISIS_2_PM_Z11_PM2_EN.ldt
