ADRIA P3

Short description of the luminaire

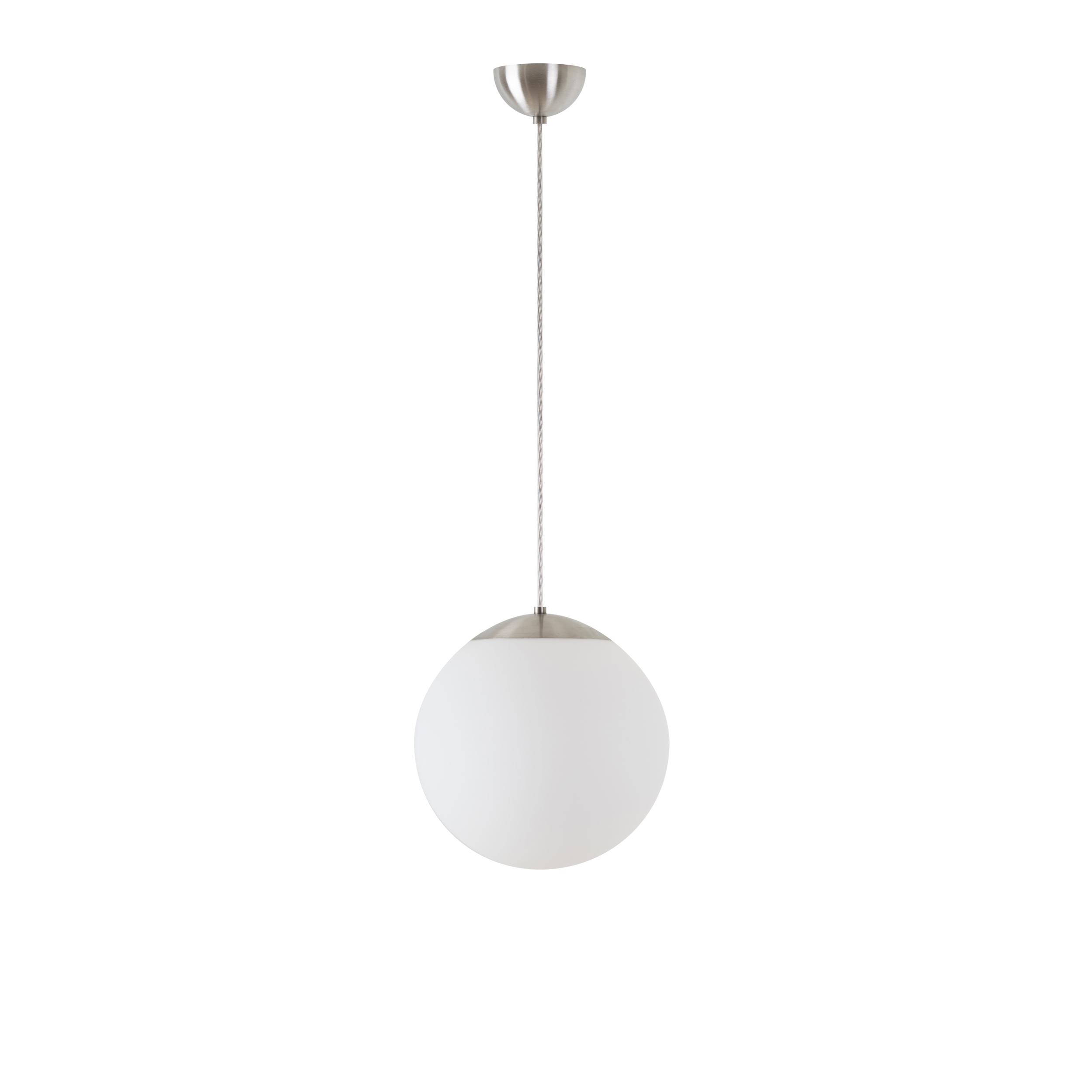

Spherical pendant light with shade diameter Ø400 mm. Product consists of rod pendant and handmade three-layer opal glass shade TRIPLEX OPAL with matt surface. Shade is fixed by steel hanger. Suitable for indoor use.

Shade material:
Base color:

Category (series):
Types of luminaires:
Mounting type:
Base material:
Shade color:
Mounting location:
Width:
Length:
Height:
Suspension lengths:	200 1000
Energy class:	D
Impact strength:	IK01
Output:	27 40
IP:
Sensor:	Yes No
Battery type:
Emergency time:
Lum. flux of luminaire:	3910 4070
Lum. flux of light source:	4440 4630
Chromaticity temperature:

Show advanced filter

Reset

230V

IP40

Possibility of design with emergency / emergency combined unit

Possibility of design with dimmable DALI ballast

Lamps

Classic on/off Sensor Dimmable Emergency combined Emergency combined SELFTEST

Code	Type	Ingress Protection	Socket	CCT (K)	Input [W]	Lum. flux of light source [lm]	Lum. flux of luminaire [lm]	Suspension length (mm)	Warranty (month)
ADR60075	LED-5L06E600Z11/096/L20 B 3K#	IP40	LED modul	3000	27	4440	3910	200	60	Detail
ADR60575	LED-5L06E600Z11/096/L20 B 4K#	IP40	LED modul	4000	27	4630	4070	200	60	Detail
ADR61285	LED-5L06E600Z11/096/L20 C 3K#	IP40	LED modul	3000	27	4440	3910	200	60	Detail
ADR61785	LED-5L06E600Z11/096/L20 C 4K#	IP40	LED modul	4000	27	4630	4070	200	60	Detail
ADR60090	LED-5L06E600Z11/096/L20 MS 3K#	IP40	LED modul	3000	27	4440	3910	200	60	Detail
ADR60590	LED-5L06E600Z11/096/L20 MS 4K#	IP40	LED modul	4000	27	4630	4070	200	60	Detail
ADR60120	LED-5L06E600Z11/096/L20 NB 3K#	IP40	LED modul	3000	27	4440	3910	200	60	Detail
ADR60620	LED-5L06E600Z11/096/L20 NB 4K#	IP40	LED modul	4000	27	4630	4070	200	60	Detail
ADR60105	LED-5L06E600Z11/096/L20 NL 3K#	IP40	LED modul	3000	27	4440	3910	200	60	Detail
ADR60605	LED-5L06E600Z11/096/L20 NL 4K#	IP40	LED modul	4000	27	4630	4070	200	60	Detail
ADR60076	LED-5L06E600Z11/096/L40 B 3K#	IP40	LED modul	3000	27	4440	3910	400	60	Detail
ADR60576	LED-5L06E600Z11/096/L40 B 4K#	IP40	LED modul	4000	27	4630	4070	400	60	Detail
ADR61286	LED-5L06E600Z11/096/L40 C 3K#	IP40	LED modul	3000	27	4440	3910	400	60	Detail
ADR61786	LED-5L06E600Z11/096/L40 C 4K#	IP40	LED modul	4000	27	4630	4070	400	60	Detail
ADR60091	LED-5L06E600Z11/096/L40 MS 3K#	IP40	LED modul	3000	27	4440	3910	400	60	Detail
ADR60591	LED-5L06E600Z11/096/L40 MS 4K#	IP40	LED modul	4000	27	4630	4070	400	60	Detail
ADR60121	LED-5L06E600Z11/096/L40 NB 3K#	IP40	LED modul	3000	27	4440	3910	400	60	Detail
ADR60621	LED-5L06E600Z11/096/L40 NB 4K#	IP40	LED modul	4000	27	4630	4070	400	60	Detail
ADR60106	LED-5L06E600Z11/096/L40 NL 3K#	IP40	LED modul	3000	27	4440	3910	400	60	Detail
ADR60606	LED-5L06E600Z11/096/L40 NL 4K#	IP40	LED modul	4000	27	4630	4070	400	60	Detail
