CORVUS LE1

Short description of the luminaire

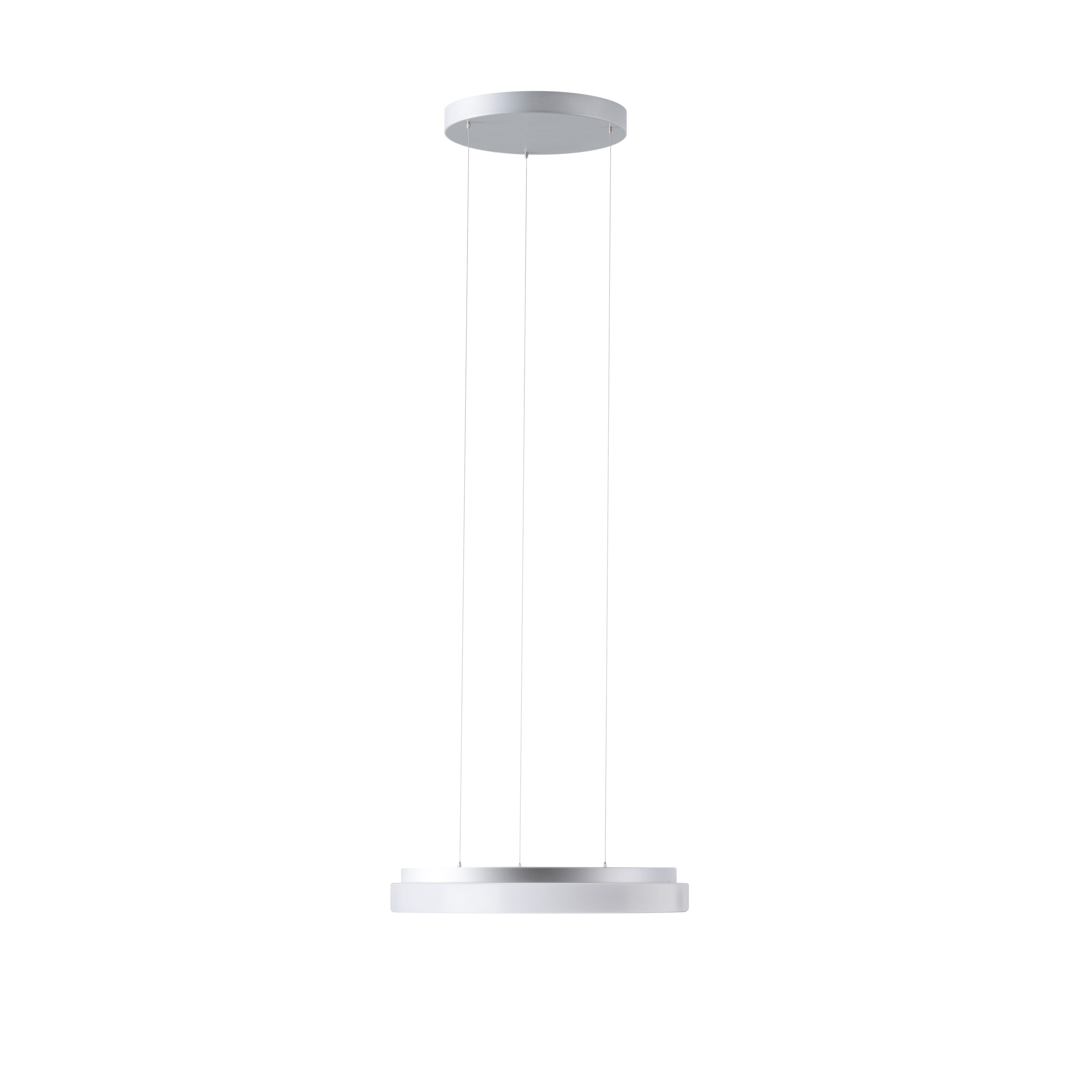

Round pendant light with shade diameter Ø370 mm. Product consists of cableless pendant LE and opal polycarbonate shade. Shade is fixed by two-step clamp holders. Suitable for indoor use.

Shade material:
Base color:

Category (series):
Types of luminaires:
Mounting type:
Base material:
Shade color:
Mounting location:
Width:
Length:
Height:
Suspension lengths:
Energy class:	D
Impact strength:	IK10
Output:
IP:
Sensor:	Yes No
Battery type:
Emergency time:
Lum. flux of luminaire:	2380 2480
Lum. flux of light source:	3770 3930
Chromaticity temperature:

Show advanced filter

Reset

230V

IP40

Lamps

Classic on/off Dimmable

Code	Type	Ingress Protection	Socket	CCT (K)	Input [W]	Lum. flux of light source [lm]	Lum. flux of luminaire [lm]	Suspension length (mm)	Warranty (month)
COR72804	LED-1L17E700ZLEN73/PC42/L100 S 4K#	IP40	LED modul	4000	25	3930	2480	1000	60	Detail
COR72802	LED-1L17E700ZLEN73/PC42/L100 C 4K#	IP40	LED modul	4000	25	3930	2480	1000	60	Detail
COR72800	LED-1L17E700ZLEN73/PC42/L100 B 4K#	IP40	LED modul	4000	25	3930	2480	1000	60	Detail
COR72304	LED-1L17E700ZLEN73/PC42/L100 S 3K#	IP40	LED modul	3000	25	3770	2380	1000	60	Detail
COR72302	LED-1L17E700ZLEN73/PC42/L100 C 3K#	IP40	LED modul	3000	25	3770	2380	1000	60	Detail
COR72300	LED-1L17E700ZLEN73/PC42/L100 B 3K#	IP40	LED modul	3000	25	3770	2380	1000	60	Detail

Code	Type	Ingress Protection	Socket	CCT (K)	Input [W]	Lum. flux of light source [lm]	Lum. flux of luminaire [lm]	Suspension length (mm)	Warranty (month)
COR72805	LED-1L17E700ZLEN73/PC42/L100 S DALI 4K#	IP40	LED modul	4000	25	3930	2480	1000	60	Detail
COR72803	LED-1L17E700ZLEN73/PC42/L100 C DALI 4K#	IP40	LED modul	4000	25	3930	2480	1000	60	Detail
COR72801	LED-1L17E700ZLEN73/PC42/L100 B DALI 4K#	IP40	LED modul	4000	25	3930	2480	1000	60	Detail
COR72305	LED-1L17E700ZLEN73/PC42/L100 S DALI 3K#	IP40	LED modul	3000	25	3770	2380	1000	60	Detail
COR72303	LED-1L17E700ZLEN73/PC42/L100 C DALI 3K#	IP40	LED modul	3000	25	3770	2380	1000	60	Detail
COR72301	LED-1L17E700ZLEN73/PC42/L100 B DALI 3K#	IP40	LED modul	3000	25	3770	2380	1000	60	Detail
