EDNA 2
Short description of the luminaire

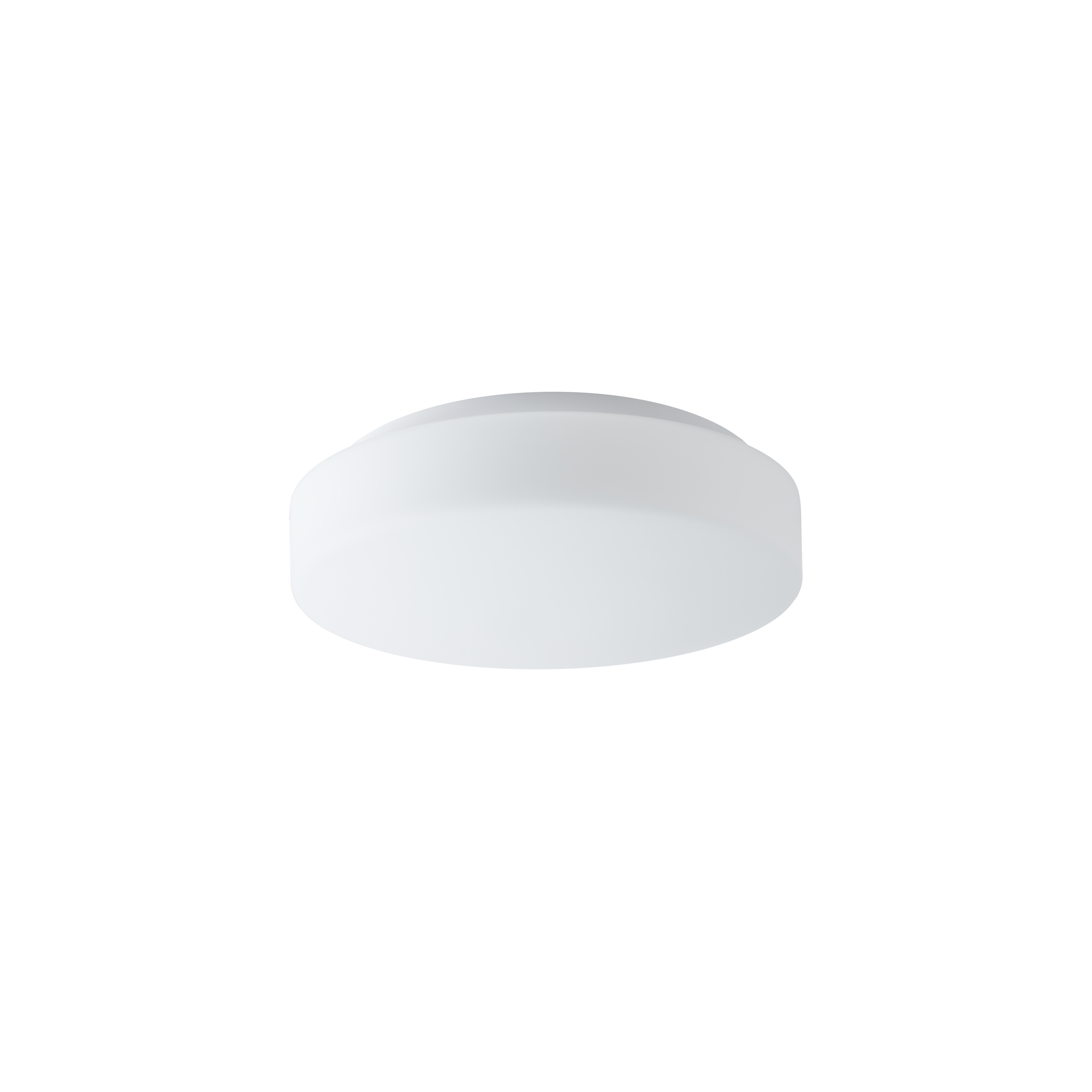

Cylindrical ceiling or wall light with shade diameter Ø220 mm. Product consists of powder-coated metal or polycarbonate base and handmade three-layer opal glass shade TRIPLEX OPAL with matt surface. Shade is fixed by two-step clamp holders. Suitable for indoor and outdoor use.
Lamps
Classic on/off
Sensor
Dimmable
Emergency combined
Tunable White
Code | Type | Base color | Ingress Protection | Socket | CCT (K) | Input [W] | Lum. flux of light source [lm] | Lum. flux of luminaire [lm] | Warranty (month) | ||
---|---|---|---|---|---|---|---|---|---|---|---|
EDN71283 | LED-1L18E350K53/022 3/4K# | IP43 | LED modul | 3000/4000 | 15 | 2230/2320 | 1560/1620 | 60 | Detail | ||
EDN71280 | LED-1L18E250K53/022 3/4K# | IP43 | LED modul | 3000/4000 | 11 | 1610/1680 | 1130/1180 | 60 | Detail | ||
EDN59634 | LED-1L18E350K53/022 4K# | IP43 | LED modul | 4000 | 15 | 2320 | 1620 | 60 | Detail | ||
EDN71504 | LED-1L18E250K53/022 4K# | IP43 | LED modul | 4000 | 11 | 1680 | 1180 | 60 | Detail | ||
EDN59134 | LED-1L18E350K53/022 3K# | IP43 | LED modul | 3000 | 15 | 2230 | 1560 | 60 | Detail | ||
EDN71004 | LED-1L18E250K53/022 3K# | IP43 | LED modul | 3000 | 11 | 1610 | 1130 | 60 | Detail | ||
71004 | LED-1L18C02K53/022 3000# | IP43 | LED modul | 3000 | 11 | 1450 | 1020 | 60 | Detail | ||
71504 | LED-1L18C02K53/022 4000# | IP43 | LED modul | 4000 | 11 | 1530 | 1070 | 60 | Detail | ||
71280 | LED-1L18C02K53/022 3/4K# | IP43 | LED modul | 3000/4000 | 11 | 1450/1530 | 1020/1070 | 60 | Detail | ||
71283 | LED-1L18C03K53/022 3/4K# | IP43 | LED modul | 3000/4000 | 15 | 2000/2110 | 1400/1480 | 60 | Detail | ||
59634 | LED-1L18C03K53/022 4000# | IP43 | LED modul | 4000 | 15 | 2110 | 1480 | 60 | Detail | ||
59130 | LED-1L12C03K53/022 3000# | IP43 | LED modul | 3000 | 9 | 1080 | 760 | 60 | Detail | ||
59134 | LED-1L18C03K53/022 3000# | IP43 | LED modul | 3000 | 15 | 2000 | 1400 | 60 | Detail | ||
59630 | LED-1L12C03K53/022 4000# | IP43 | LED modul | 4000 | 9 | 1140 | 800 | 60 | Detail | ||
41208 | IN-12DU52/022* | IP43 II | E27 | 10 | 60 | Detail | |||||
41183 | IN-12K52/022* | IP43 | E27 | 10 | 60 | Detail | |||||
41184 | IN-22K52/022* | IP43 | 2×E27 | 2x7 | 60 | Detail |
