ELISA

Short description of the luminaire

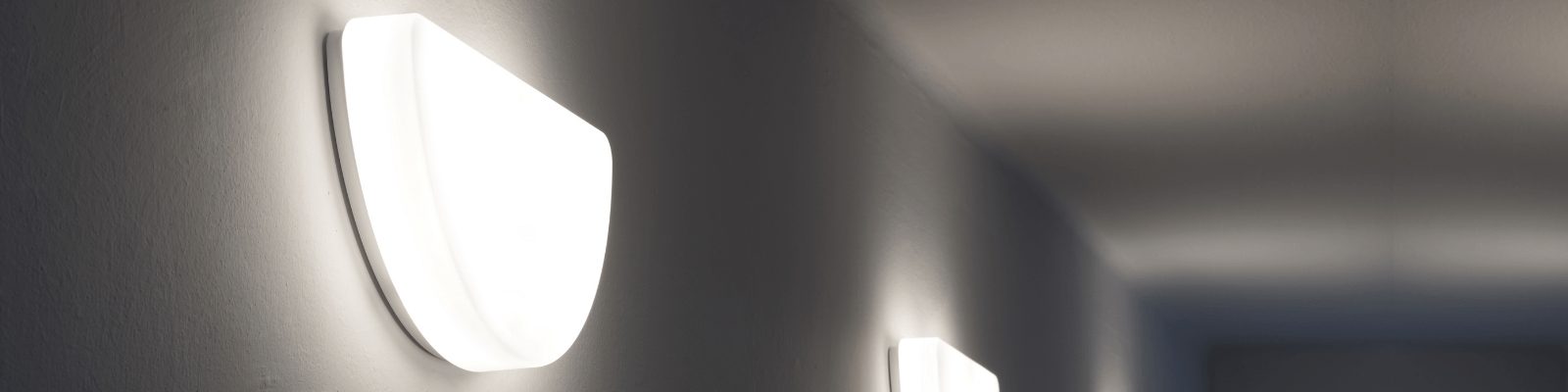

Semicircular ceiling or wall light with shade size 490×265 mm. Product consists of powder-coated metal base and opal polycarbonate shade. Shade is fixed by two-step clamp holders. Suitable for indoor and outdoor use.

Shade material:
Base color:

Category (series):
Types of luminaires:
Mounting type:
Base material:
Shade color:
Mounting location:
Width:
Length:
Height:
Hinge lengths:
Energy class:	D
Impact strength:	IK10
Output:	2 27
IP:
Sensor:	Yes No
Battery type:
Emergency time:
Lum. flux of luminaire:	1760 2920
Lum. flux of light source:	2590 4290
Temperature:

Show advanced filter

Reset

230V

IP44

Possibility of design with dimmable DALI ballast

Possibility of design with Bluetooth wireless control

Possibility of design with high-frequency motion sensor

Lamps

Classic on/off Sensor Dimmable

Code	Type	Ingress Protection	Socket	CCT (K)	Input [W]	Lum. flux of light source [lm]	Lum. flux of luminaire [lm]	Warranty (month)
ELI56896	LED-1L43E1050NU43/PC43 4K#	IP44	LED modul	4000	26	4290	2920	60	Detail
ELI56396	LED-1L43E1050NU43/PC43 3K#	IP44	LED modul	3000	26	4110	2790	60	Detail
56896	LED-1L43C10NU43/PC43 4000#	IP44	LED modul	4000	27	3820	2600	60	Detail
53395	LED-1L42B07NU43/PC43 3000#	IP44	LED modul	3000	20	2590	1760	60	Detail
56396	LED-1L43C10NU43/PC43 3000#	IP44	LED modul	3000	27	3630	2470	60	Detail
53895	LED-1L42B07NU43/PC43 4000#	IP44	LED modul	4000	20	2700	1840	60	Detail
53525	IN-22NU43/PC43*	IP44	2×E27		2x10			60	Detail

Code	Type	Ingress Protection	Socket	CCT (K)	Input [W]	Lum. flux of light source [lm]	Lum. flux of luminaire [lm]	Warranty (month)
ELI56897	LED-1L43E1050NU43/PC43 HF 4K#	IP44	LED modul	4000	26	4290	2920	60	Detail
ELI56397	LED-1L43E1050NU43/PC43 HF 3K#	IP44	LED modul	3000	26	4110	2790	60	Detail
56897	LED-1L43C10NU43/PC43 HF 4000#	IP44	LED modul	4000	27	3820	2600	60	Detail
56397	LED-1L43C10NU43/PC43 HF 3000#	IP44	LED modul	3000	27	3630	2470	60	Detail
53528	IN-22NU43/PC43 HF*	IP44	2×E27		2x10			60	Detail

Code	Type	Ingress Protection	Socket	CCT (K)	Input [W]	Lum. flux of light source [lm]	Lum. flux of luminaire [lm]	Warranty (month)
ELI56898	LED-1L43E1050NU43/PC43 DALI 4K#	IP44	LED modul	4000	26	4290	2920	60	Detail
ELI56398	LED-1L43E1050NU43/PC43 DALI 3K#	IP44	LED modul	3000	26	4110	2790	60	Detail
56898	LED-1L43C10NU43/PC43 DALI 4000#	IP44	LED modul	4000	27	3820	2600	60	Detail
56398	LED-1L43C10NU43/PC43 DALI 3000#	IP44	LED modul	3000	27	3630	2470	60	Detail
