ERIS 4

Short description of the luminaire

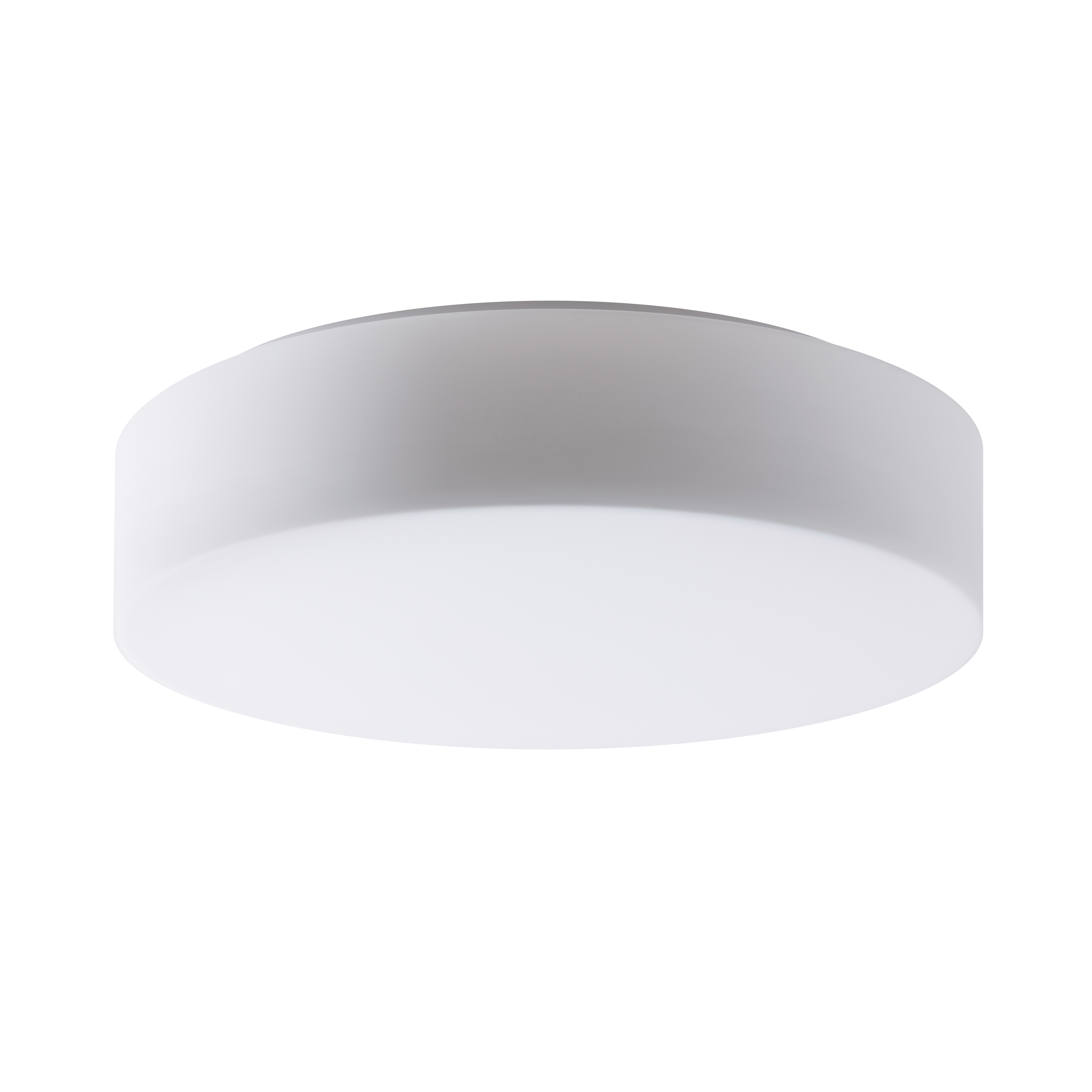

Cylindrical ceiling or wall light with shade diameter Ø540 mm. Product consists of powder-coated metal base and handmade three-layer opal glass shade TRIPLEX OPAL with matt surface. Shade is fixed by two-step clamp holders. Suitable for indoor and outdoor use.

Shade material:
Base color:

Category (series):
Types of luminaires:
Mounting type:
Base material:
Shade color:
Mounting location:
Width:
Length:
Height:	120 140
Hinge lengths:
Energy class:	D
Impact strength:	IK01
Output:	3 54
IP:
Sensor:	Yes No
Battery type:
Emergency time:
Lum. flux of luminaire:	3330 5560
Lum. flux of light source:	5050 8430
Temperature:

Show advanced filter

Reset

230V

IP43

Possibility of design with emergency / emergency combined unit

Possibility of design with dimmable DALI ballast

Possibility of design with Bluetooth wireless control

Lamps

Classic on/off Dimmable Emergency combined Tunable White

Code	Type	Ingress Protection	Socket	CCT (K)	Input [W]	Lum. flux of light source [lm]	Lum. flux of luminaire [lm]	Warranty (month)
ERI67550	LED-1L23EMP1050K910/414 4K##	IP43	LED modul	4000	54	8430	5560	60	Detail
ERI67547	LED-1L23EMP700K910/414 4K##	IP43	LED modul	4000	35	5850	3860	60	Detail
ERI67050	LED-1L23EMP1050K910/414 3K##	IP43	LED modul	3000	54	8080	5330	60	Detail
ERI67047	LED-1L23EMP700K910/414 3K##	IP43	LED modul	3000	35	5610	3700	60	Detail
67047	LED-2L43C07K910/414 3000##	IP43	LED modul	3000	35	5050	3330	60	Detail
67050	LED-2L43C10K910/414 3000##	IP43	LED modul	3000	52	7250	4790	60	Detail
67547	LED-2L43C07K910/414 4000##	IP43	LED modul	4000	35	5330	3520	60	Detail
67550	LED-2L43C10K910/414 4000##	IP43	LED modul	4000	52	7640	5040	60	Detail
53540	IN-32K910/414**	IP43	3×E27		3x13			60	Detail

Code	Type	Ingress Protection	Socket	CCT (K)	Input [W]	Lum. flux of light source [lm]	Lum. flux of luminaire [lm]	Warranty (month)
ERI67551	LED-1L23E1050K910/414 DALI 4K##	IP43	LED modul	4000	54	8430	5560	60	Detail
ERI67548	LED-1L23E700K910/414 DALI 4K##	IP43	LED modul	4000	35	5850	3860	60	Detail
ERI67051	LED-1L23E1050K910/414 DALI 3K##	IP43	LED modul	3000	54	8080	5330	60	Detail
ERI67048	LED-1L23E700K910/414 DALI 3K##	IP43	LED modul	3000	35	5610	3700	60	Detail
67551	LED-2L43C10K910/414 DALI 4000##	IP43	LED modul	4000	52	7640	5040	60	Detail
67048	LED-2L43C07K910/414 DALI 3000##	IP43	LED modul	3000	35	5050	3330	60	Detail
67051	LED-2L43C10K910/414 DALI 3000##	IP43	LED modul	3000	52	7250	4790	60	Detail
67548	LED-2L43C07K910/414 DALI 4000##	IP43	LED modul	4000	35	5330	3520	60	Detail

Code	Type	Ingress Protection	Socket	CCT (K)	Input [W]	Lum. flux of light source [lm]	Lum. flux of luminaire [lm]	Emergency time (h)	Warranty (month)
ERI67552	LED-1L23EMP1050K910/414/NK1W 4K##	IP43	LED modul	4000	54	8430	5560	3	60	Detail
ERI67549	LED-1L23EMP700K910/414/NK1W 4K##	IP43	LED modul	4000	35	5850	3860	3	60	Detail
ERI67052	LED-1L23EMP1050K910/414/NK1W 3K##	IP43	LED modul	3000	54	8080	5330	3	60	Detail
ERI67049	LED-1L23EMP700K910/414/NK1W 3K##	IP43	LED modul	3000	35	5610	3700	3	60	Detail
67552	LED-2L43C10K910/414/NK1W 4000##	IP43	LED modul	4000	52	7640	5040	3	60	Detail
67049	LED-2L43C07K910/414/NK1W 3000##	IP43	LED modul	3000	35	5050	3330	3	60	Detail
67052	LED-2L43C10K910/414/NK1W 3000##	IP43	LED modul	3000	52	7250	4790	3	60	Detail
67549	LED-2L43C07K910/414/NK1W 4000##	IP43	LED modul	4000	35	5330	3520	3	60	Detail

	Code	Type	Base color	Ingress Protection	Socket	CCT (K)	Input [W]	Lum. flux of light source [lm]	Lum. flux of luminaire [lm]	Warranty (month)
	ERI63154	LED-1L23ET1050K910/414 BT 27-65K##		IP43	LED modul	2700-6500	52	8140	5370	60	Detail
	ERI63153	LED-1L23ET1050K910/414 DALI 27-65K##		IP43	LED modul	2700-6500	52	8140	5370	60	Detail
