GALAXIA L1

Short description of the luminaire

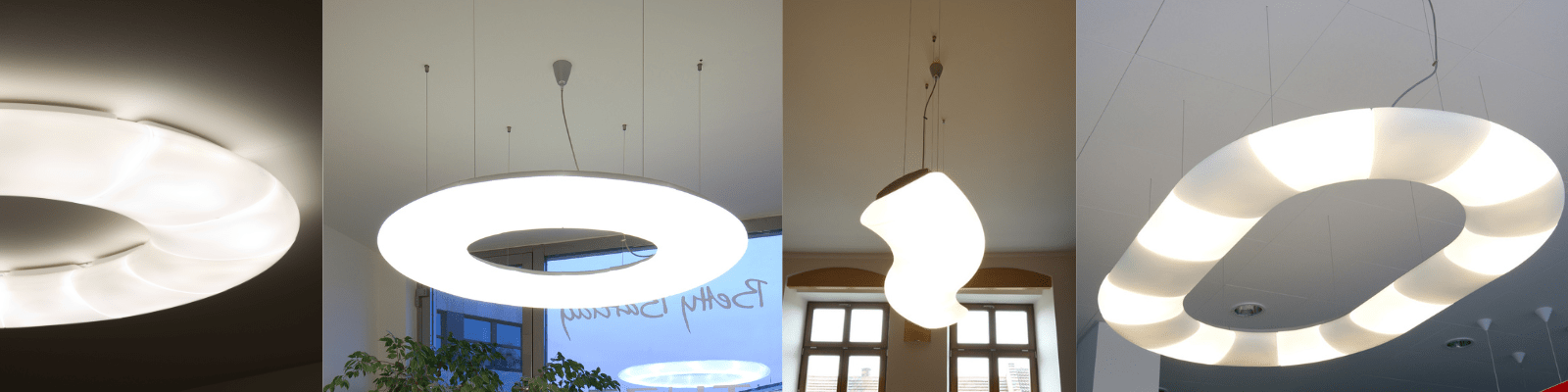

Circular lighting set GALAXIA (suspension version with 12 lighting segments).

GALAXIA lighting configurator

In addition to the circular version, the GALAXIA product also enables the creation of individual luminaire assemblies from two light segments / luminaires (ALTAIR 1S and 2S).

If you are interested in an individual GALAXIA set, please use the configurator below and send us an inquiry via it.

Create your own GALAXIA or GALAXIA L luminaire assemblies in the luminaire configurator here: LINK TO GALAXIA CONFIGURATOR

Shade material:
Base color:

Category (series):
Types of luminaires:
Mounting type:
Base material:
Shade color:
Mounting location:
Width:
Length:
Height:
Hinge lengths:
Energy class:	D
Impact strength:	IK01
Output:	240 960
IP:
Sensor:	Yes No
Battery type:
Emergency time:
Lum. flux of luminaire:
Lum. flux of light source:
Temperature:

Show advanced filter

Reset

230V

Suitable for mounting on flammable substrates (F)

IP40

Possibility of design with dimmable DALI ballast

Possibility of design with Bluetooth wireless control

Lamps

Classic on/off Dimmable

Code	Type	Ingress Protection	Socket	CCT (K)	Input [W]	Lum. flux of light source [lm]	Lum. flux of luminaire [lm]	m (Kg)	Warranty (month)
61690	12xLED-1L35C07USZ21/421/L200 4000##	IP40	12×LED modul	4000	240	33240	25320	55	60	Detail
61190	12xLED-1L35C07USZ21/421/L200 3000##	IP40	12×LED modul	3000	240	33240	25320	55	60	Detail
57026	12xIN-22USZ21/421/L200**	IP40	24×E27		960			55	60	Detail

	Code	Type	Ingress Protection	Socket	CCT (K)	Input [W]	Lum. flux of light source [lm]	Lum. flux of luminaire [lm]	m (Kg)	Warranty (month)
	61691	12xLED-1L35C07USZ21/421/L200 DALI 4000##	IP40	12×LED modul	4000	240	33240	25320	55	60	Detail
	61191	12xLED-1L35C07USZ21/421/L200 DALI 3000##	IP40	12×LED modul	3000	240	33240	25320	55	60	Detail
