ISIS P2 PM-M

Short description of the luminaire

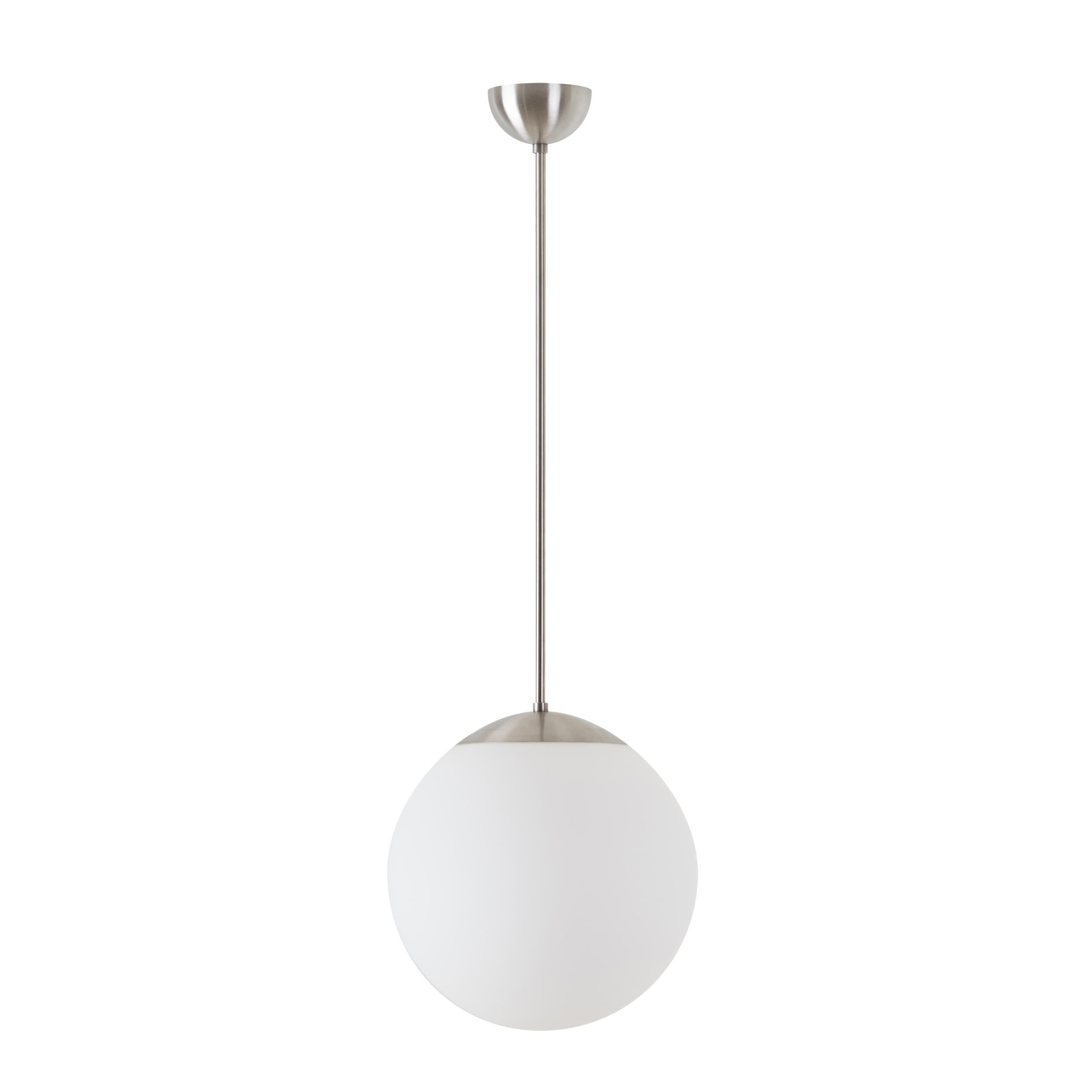

Spherical pendant light with shade diameter Ø300 mm. Product consists of rod pendant and PMMA matt shade. Shade is fixed by steel hanger. Suitable for indoor use.

Shade material:
Base color:

Category (series):
Types of luminaires:
Mounting type:
Base material:
Shade color:
Mounting location:
Width:
Length:
Height:
Suspension lengths:	200 1000
Energy class:	D
Impact strength:	IK06
Output:	20 25
IP:
Sensor:	Yes No
Battery type:
Emergency time:
Lum. flux of luminaire:	2960 3090
Lum. flux of light source:	3360 3510
Chromaticity temperature:

Show advanced filter

Reset

230V

IP40

Possibility of design with dimmable DALI ballast

Lamps

Classic on/off Sensor Dimmable

Code	Type	Ingress Protection	Socket	CCT (K)	Input [W]	Lum. flux of light source [lm]	Lum. flux of luminaire [lm]	Suspension length (mm)	Warranty (month)
ISI64899	LED-5L06E450Z11/PM2M/L100 NB 4K#	IP40	LED modul	4000	20	3510	3090	1000	60	Detail
ISI64898	LED-5L06E450Z11/PM2M/L80 NB 4K#	IP40	LED modul	4000	20	3510	3090	800	60	Detail
ISI64897	LED-5L06E450Z11/PM2M/L60 NB 4K#	IP40	LED modul	4000	20	3510	3090	600	60	Detail
ISI64896	LED-5L06E450Z11/PM2M/L40 NB 4K#	IP40	LED modul	4000	20	3510	3090	400	60	Detail
ISI64895	LED-5L06E450Z11/PM2M/L20 NB 4K#	IP40	LED modul	4000	20	3510	3090	200	60	Detail
ISI64889	LED-5L06E450Z11/PM2M/L100 NL 4K#	IP40	LED modul	4000	20	3510	3090	1000	60	Detail
ISI64888	LED-5L06E450Z11/PM2M/L80 NL 4K#	IP40	LED modul	4000	20	3510	3090	800	60	Detail
ISI64887	LED-5L06E450Z11/PM2M/L60 NL 4K#	IP40	LED modul	4000	20	3510	3090	600	60	Detail
ISI64886	LED-5L06E450Z11/PM2M/L40 NL 4K#	IP40	LED modul	4000	20	3510	3090	400	60	Detail
ISI64885	LED-5L06E450Z11/PM2M/L20 NL 4K#	IP40	LED modul	4000	20	3510	3090	200	60	Detail
ISI64879	LED-5L06E450Z11/PM2M/L100 MS 4K#	IP40	LED modul	4000	20	3510	3090	1000	60	Detail
ISI64878	LED-5L06E450Z11/PM2M/L80 MS 4K#	IP40	LED modul	4000	20	3510	3090	800	60	Detail
ISI64877	LED-5L06E450Z11/PM2M/L60 MS 4K#	IP40	LED modul	4000	20	3510	3090	600	60	Detail
ISI64876	LED-5L06E450Z11/PM2M/L40 MS 4K#	IP40	LED modul	4000	20	3510	3090	400	60	Detail
ISI64875	LED-5L06E450Z11/PM2M/L20 MS 4K#	IP40	LED modul	4000	20	3510	3090	200	60	Detail
ISI64869	LED-5L06E450Z11/PM2M/L100 C 4K#	IP40	LED modul	4000	20	3510	3090	1000	60	Detail
ISI64868	LED-5L06E450Z11/PM2M/L80 C 4K#	IP40	LED modul	4000	20	3510	3090	800	60	Detail
ISI64867	LED-5L06E450Z11/PM2M/L60 C 4K#	IP40	LED modul	4000	20	3510	3090	600	60	Detail
ISI64866	LED-5L06E450Z11/PM2M/L40 C 4K#	IP40	LED modul	4000	20	3510	3090	400	60	Detail
ISI64865	LED-5L06E450Z11/PM2M/L20 C 4K#	IP40	LED modul	4000	20	3510	3090	200	60	Detail
ISI64859	LED-5L06E450Z11/PM2M/L100 B 4K#	IP40	LED modul	4000	20	3510	3090	1000	60	Detail
ISI64858	LED-5L06E450Z11/PM2M/L80 B 4K#	IP40	LED modul	4000	20	3510	3090	800	60	Detail
ISI64857	LED-5L06E450Z11/PM2M/L60 B 4K#	IP40	LED modul	4000	20	3510	3090	600	60	Detail
ISI64856	LED-5L06E450Z11/PM2M/L40 B 4K#	IP40	LED modul	4000	20	3510	3090	400	60	Detail
ISI64855	LED-5L06E450Z11/PM2M/L20 B 4K#	IP40	LED modul	4000	20	3510	3090	200	60	Detail
ISI64399	LED-5L06E450Z11/PM2M/L100 NB 3K#	IP40	LED modul	3000	20	3360	2960	1000	60	Detail
ISI64398	LED-5L06E450Z11/PM2M/L80 NB 3K#	IP40	LED modul	3000	20	3360	2960	800	60	Detail
ISI64397	LED-5L06E450Z11/PM2M/L60 NB 3K#	IP40	LED modul	3000	20	3360	2960	600	60	Detail
ISI64396	LED-5L06E450Z11/PM2M/L40 NB 3K#	IP40	LED modul	3000	20	3360	2960	400	60	Detail
ISI64395	LED-5L06E450Z11/PM2M/L20 NB 3K#	IP40	LED modul	3000	20	3360	2960	200	60	Detail
ISI64389	LED-5L06E450Z11/PM2M/L100 NL 3K#	IP40	LED modul	3000	20	3360	2960	1000	60	Detail
ISI64388	LED-5L06E450Z11/PM2M/L80 NL 3K#	IP40	LED modul	3000	20	3360	2960	800	60	Detail
ISI64387	LED-5L06E450Z11/PM2M/L60 NL 3K#	IP40	LED modul	3000	20	3360	2960	600	60	Detail
ISI64386	LED-5L06E450Z11/PM2M/L40 NL 3K#	IP40	LED modul	3000	20	3360	2960	400	60	Detail
ISI64385	LED-5L06E450Z11/PM2M/L20 NL 3K#	IP40	LED modul	3000	20	3360	2960	200	60	Detail
ISI64379	LED-5L06E450Z11/PM2M/L100 MS 3K#	IP40	LED modul	3000	20	3360	2960	1000	60	Detail
ISI64378	LED-5L06E450Z11/PM2M/L80 MS 3K#	IP40	LED modul	3000	20	3360	2960	800	60	Detail
ISI64377	LED-5L06E450Z11/PM2M/L60 MS 3K#	IP40	LED modul	3000	20	3360	2960	600	60	Detail
ISI64376	LED-5L06E450Z11/PM2M/L40 MS 3K#	IP40	LED modul	3000	20	3360	2960	400	60	Detail
ISI64375	LED-5L06E450Z11/PM2M/L20 MS 3K#	IP40	LED modul	3000	20	3360	2960	200	60	Detail
ISI64369	LED-5L06E450Z11/PM2M/L100 C 3K#	IP40	LED modul	3000	20	3360	2960	1000	60	Detail
ISI64368	LED-5L06E450Z11/PM2M/L80 C 3K#	IP40	LED modul	3000	20	3360	2960	800	60	Detail
ISI64367	LED-5L06E450Z11/PM2M/L60 C 3K#	IP40	LED modul	3000	20	3360	2960	600	60	Detail
ISI64366	LED-5L06E450Z11/PM2M/L40 C 3K#	IP40	LED modul	3000	20	3360	2960	400	60	Detail
ISI64365	LED-5L06E450Z11/PM2M/L20 C 3K#	IP40	LED modul	3000	20	3360	2960	200	60	Detail
ISI64359	LED-5L06E450Z11/PM2M/L100 B 3K#	IP40	LED modul	3000	20	3360	2960	1000	60	Detail
ISI64358	LED-5L06E450Z11/PM2M/L80 B 3K#	IP40	LED modul	3000	20	3360	2960	800	60	Detail
ISI64357	LED-5L06E450Z11/PM2M/L60 B 3K#	IP40	LED modul	3000	20	3360	2960	600	60	Detail
ISI64356	LED-5L06E450Z11/PM2M/L40 B 3K#	IP40	LED modul	3000	20	3360	2960	400	60	Detail
ISI64355	LED-5L06E450Z11/PM2M/L20 B 3K#	IP40	LED modul	3000	20	3360	2960	200	60	Detail
ISI63724	Z11/PM2M/L100 NB*	IP40	E27		25			1000	60	Detail
ISI63723	Z11/PM2M/L80 NB*	IP40	E27		25			800	60	Detail
ISI63722	Z11/PM2M/L60 NB*	IP40	E27		25			600	60	Detail
ISI63721	Z11/PM2M/L40 NB*	IP40	E27		25			400	60	Detail
ISI63720	Z11/PM2M/L20 NB*	IP40	E27		25			200	60	Detail
ISI63719	Z11/PM2M/L100 NL*	IP40	E27		25			1000	60	Detail
ISI63718	Z11/PM2M/L80 NL*	IP40	E27		25			800	60	Detail
ISI63717	Z11/PM2M/L60 NL*	IP40	E27		25			600	60	Detail
ISI63716	Z11/PM2M/L40 NL*	IP40	E27		25			400	60	Detail
ISI63715	Z11/PM2M/L20 NL*	IP40	E27		25			200	60	Detail
ISI63714	Z11/PM2M/L100 MS*	IP40	E27		25			1000	60	Detail
ISI63713	Z11/PM2M/L80 MS*	IP40	E27		25			800	60	Detail
ISI63712	Z11/PM2M/L60 MS*	IP40	E27		25			600	60	Detail
ISI63711	Z11/PM2M/L40 MS*	IP40	E27		25			400	60	Detail
ISI63710	Z11/PM2M/L20 MS*	IP40	E27		25			200	60	Detail
ISI63709	Z11/PM2M/L100 C*	IP40	E27		25			1000	60	Detail
ISI63708	Z11/PM2M/L80 C*	IP40	E27		25			800	60	Detail
ISI63707	Z11/PM2M/L60 C*	IP40	E27		25			600	60	Detail
ISI63706	Z11/PM2M/L40 C*	IP40	E27		25			400	60	Detail
ISI63705	Z11/PM2M/L20 C*	IP40	E27		25			200	60	Detail
ISI63704	Z11/PM2M/L100 B*	IP40	E27		25			1000	60	Detail
ISI63703	Z11/PM2M/L80 B*	IP40	E27		25			800	60	Detail
ISI63702	Z11/PM2M/L60 B*	IP40	E27		25			600	60	Detail
ISI63701	Z11/PM2M/L40 B*	IP40	E27		25			400	60	Detail
ISI63700	Z11/PM2M/L20 B*	IP40	E27		25			200	60	Detail

Code	Type	Ingress Protection	Socket	Input [W]	Suspension length (mm)	Warranty (month)
ISI63614	Z11/PM2M/L100 NB HF*	IP40	E27	25	1000	60	Detail
ISI63613	Z11/PM2M/L80 NB HF*	IP40	E27	25	800	60	Detail
ISI63612	Z11/PM2M/L60 NB HF*	IP40	E27	25	600	60	Detail
ISI63611	Z11/PM2M/L40 NB HF*	IP40	E27	25	400	60	Detail
ISI63610	Z11/PM2M/L20 NB HF*	IP40	E27	25	200	60	Detail
ISI63609	Z11/PM2M/L100 NL HF*	IP40	E27	25	1000	60	Detail
ISI63608	Z11/PM2M/L80 NL HF*	IP40	E27	25	800	60	Detail
ISI63607	Z11/PM2M/L60 NL HF*	IP40	E27	25	600	60	Detail
ISI63606	Z11/PM2M/L40 NL HF*	IP40	E27	25	400	60	Detail
ISI63605	Z11/PM2M/L20 NL HF*	IP40	E27	25	200	60	Detail
ISI63604	Z11/PM2M/L100 MS HF*	IP40	E27	25	1000	60	Detail
ISI63603	Z11/PM2M/L80 MS HF*	IP40	E27	25	800	60	Detail
ISI63602	Z11/PM2M/L60 MS HF*	IP40	E27	25	600	60	Detail
ISI63601	Z11/PM2M/L40 MS HF*	IP40	E27	25	400	60	Detail
ISI63600	Z11/PM2M/L20 MS HF*	IP40	E27	25	200	60	Detail
ISI63599	Z11/PM2M/L100 C HF*	IP40	E27	25	1000	60	Detail
ISI63598	Z11/PM2M/L80 C HF*	IP40	E27	25	800	60	Detail
ISI63597	Z11/PM2M/L60 C HF*	IP40	E27	25	600	60	Detail
ISI63596	Z11/PM2M/L40 C HF*	IP40	E27	25	400	60	Detail
ISI63595	Z11/PM2M/L20 C HF*	IP40	E27	25	200	60	Detail
ISI63594	Z11/PM2M/L100 B HF*	IP40	E27	25	1000	60	Detail
ISI63593	Z11/PM2M/L80 B HF*	IP40	E27	25	800	60	Detail
ISI63592	Z11/PM2M/L60 B HF*	IP40	E27	25	600	60	Detail
ISI63591	Z11/PM2M/L40 B HF*	IP40	E27	25	400	60	Detail
ISI63590	Z11/PM2M/L20 B HF*	IP40	E27	25	200	60	Detail

Code	Type	Ingress Protection	Socket	CCT (K)	Input [W]	Lum. flux of light source [lm]	Lum. flux of luminaire [lm]	Suspension length (mm)	Warranty (month)
ISI64904	LED-5L06E450Z11/PM2M/L100 NB DALI 4K#	IP40	LED modul	4000	20	3510	3090	1000	60	Detail
ISI64903	LED-5L06E450Z11/PM2M/L80 NB DALI 4K#	IP40	LED modul	4000	20	3510	3090	800	60	Detail
ISI64902	LED-5L06E450Z11/PM2M/L60 NB DALI 4K#	IP40	LED modul	4000	20	3510	3090	600	60	Detail
ISI64901	LED-5L06E450Z11/PM2M/L40 NB DALI 4K#	IP40	LED modul	4000	20	3510	3090	400	60	Detail
ISI64900	LED-5L06E450Z11/PM2M/L20 NB DALI 4K#	IP40	LED modul	4000	20	3510	3090	200	60	Detail
ISI64894	LED-5L06E450Z11/PM2M/L100 NL DALI 4K#	IP40	LED modul	4000	20	3510	3090	1000	60	Detail
ISI64893	LED-5L06E450Z11/PM2M/L80 NL DALI 4K#	IP40	LED modul	4000	20	3510	3090	800	60	Detail
ISI64892	LED-5L06E450Z11/PM2M/L60 NL DALI 4K#	IP40	LED modul	4000	20	3510	3090	600	60	Detail
ISI64891	LED-5L06E450Z11/PM2M/L40 NL DALI 4K#	IP40	LED modul	4000	20	3510	3090	400	60	Detail
ISI64890	LED-5L06E450Z11/PM2M/L20 NL DALI 4K#	IP40	LED modul	4000	20	3510	3090	200	60	Detail
ISI64884	LED-5L06E450Z11/PM2M/L100 MS DALI 4K#	IP40	LED modul	4000	20	3510	3090	1000	60	Detail
ISI64883	LED-5L06E450Z11/PM2M/L80 MS DALI 4K#	IP40	LED modul	4000	20	3510	3090	800	60	Detail
ISI64882	LED-5L06E450Z11/PM2M/L60 MS DALI 4K#	IP40	LED modul	4000	20	3510	3090	600	60	Detail
ISI64881	LED-5L06E450Z11/PM2M/L40 MS DALI 4K#	IP40	LED modul	4000	20	3510	3090	400	60	Detail
ISI64880	LED-5L06E450Z11/PM2M/L20 MS DALI 4K#	IP40	LED modul	4000	20	3510	3090	200	60	Detail
ISI64874	LED-5L06E450Z11/PM2M/L100 C DALI 4K#	IP40	LED modul	4000	20	3510	3090	1000	60	Detail
ISI64873	LED-5L06E450Z11/PM2M/L80 C DALI 4K#	IP40	LED modul	4000	20	3510	3090	800	60	Detail
ISI64872	LED-5L06E450Z11/PM2M/L60 C DALI 4K#	IP40	LED modul	4000	20	3510	3090	600	60	Detail
ISI64871	LED-5L06E450Z11/PM2M/L40 C DALI 4K#	IP40	LED modul	4000	20	3510	3090	400	60	Detail
ISI64870	LED-5L06E450Z11/PM2M/L20 C DALI 4K#	IP40	LED modul	4000	20	3510	3090	200	60	Detail
ISI64864	LED-5L06E450Z11/PM2M/L100 B DALI 4K#	IP40	LED modul	4000	20	3510	3090	1000	60	Detail
ISI64863	LED-5L06E450Z11/PM2M/L80 B DALI 4K#	IP40	LED modul	4000	20	3510	3090	800	60	Detail
ISI64862	LED-5L06E450Z11/PM2M/L60 B DALI 4K#	IP40	LED modul	4000	20	3510	3090	600	60	Detail
ISI64861	LED-5L06E450Z11/PM2M/L40 B DALI 4K#	IP40	LED modul	4000	20	3510	3090	400	60	Detail
ISI64860	LED-5L06E450Z11/PM2M/L20 B DALI 4K#	IP40	LED modul	4000	20	3510	3090	200	60	Detail
ISI64404	LED-5L06E450Z11/PM2M/L100 NB DALI 3K#	IP40	LED modul	3000	20	3360	2960	1000	60	Detail
ISI64403	LED-5L06E450Z11/PM2M/L80 NB DALI 3K#	IP40	LED modul	3000	20	3360	2960	800	60	Detail
ISI64402	LED-5L06E450Z11/PM2M/L60 NB DALI 3K#	IP40	LED modul	3000	20	3360	2960	600	60	Detail
ISI64401	LED-5L06E450Z11/PM2M/L40 NB DALI 3K#	IP40	LED modul	3000	20	3360	2960	400	60	Detail
ISI64400	LED-5L06E450Z11/PM2M/L20 NB DALI 3K#	IP40	LED modul	3000	20	3360	2960	200	60	Detail
ISI64394	LED-5L06E450Z11/PM2M/L100 NL DALI 3K#	IP40	LED modul	3000	20	3360	2960	1000	60	Detail
ISI64393	LED-5L06E450Z11/PM2M/L80 NL DALI 3K#	IP40	LED modul	3000	20	3360	2960	800	60	Detail
ISI64392	LED-5L06E450Z11/PM2M/L60 NL DALI 3K#	IP40	LED modul	3000	20	3360	2960	600	60	Detail
ISI64391	LED-5L06E450Z11/PM2M/L40 NL DALI 3K#	IP40	LED modul	3000	20	3360	2960	400	60	Detail
ISI64390	LED-5L06E450Z11/PM2M/L20 NL DALI 3K#	IP40	LED modul	3000	20	3360	2960	200	60	Detail
ISI64384	LED-5L06E450Z11/PM2M/L100 MS DALI 3K#	IP40	LED modul	3000	20	3360	2960	1000	60	Detail
ISI64383	LED-5L06E450Z11/PM2M/L80 MS DALI 3K#	IP40	LED modul	3000	20	3360	2960	800	60	Detail
ISI64382	LED-5L06E450Z11/PM2M/L60 MS DALI 3K#	IP40	LED modul	3000	20	3360	2960	600	60	Detail
ISI64381	LED-5L06E450Z11/PM2M/L40 MS DALI 3K#	IP40	LED modul	3000	20	3360	2960	400	60	Detail
ISI64380	LED-5L06E450Z11/PM2M/L20 MS DALI 3K#	IP40	LED modul	3000	20	3360	2960	200	60	Detail
ISI64374	LED-5L06E450Z11/PM2M/L100 C DALI 3K#	IP40	LED modul	3000	20	3360	2960	1000	60	Detail
ISI64373	LED-5L06E450Z11/PM2M/L80 C DALI 3K#	IP40	LED modul	3000	20	3360	2960	800	60	Detail
ISI64372	LED-5L06E450Z11/PM2M/L60 C DALI 3K#	IP40	LED modul	3000	20	3360	2960	600	60	Detail
ISI64371	LED-5L06E450Z11/PM2M/L40 C DALI 3K#	IP40	LED modul	3000	20	3360	2960	400	60	Detail
ISI64370	LED-5L06E450Z11/PM2M/L20 C DALI 3K#	IP40	LED modul	3000	20	3360	2960	200	60	Detail
ISI64364	LED-5L06E450Z11/PM2M/L100 B DALI 3K#	IP40	LED modul	3000	20	3360	2960	1000	60	Detail
ISI64363	LED-5L06E450Z11/PM2M/L80 B DALI 3K#	IP40	LED modul	3000	20	3360	2960	800	60	Detail
ISI64362	LED-5L06E450Z11/PM2M/L60 B DALI 3K#	IP40	LED modul	3000	20	3360	2960	600	60	Detail
ISI64361	LED-5L06E450Z11/PM2M/L40 B DALI 3K#	IP40	LED modul	3000	20	3360	2960	400	60	Detail
ISI64360	LED-5L06E450Z11/PM2M/L20 B DALI 3K#	IP40	LED modul	3000	20	3360	2960	200	60	Detail
