JENA 2

Short description of the luminaire

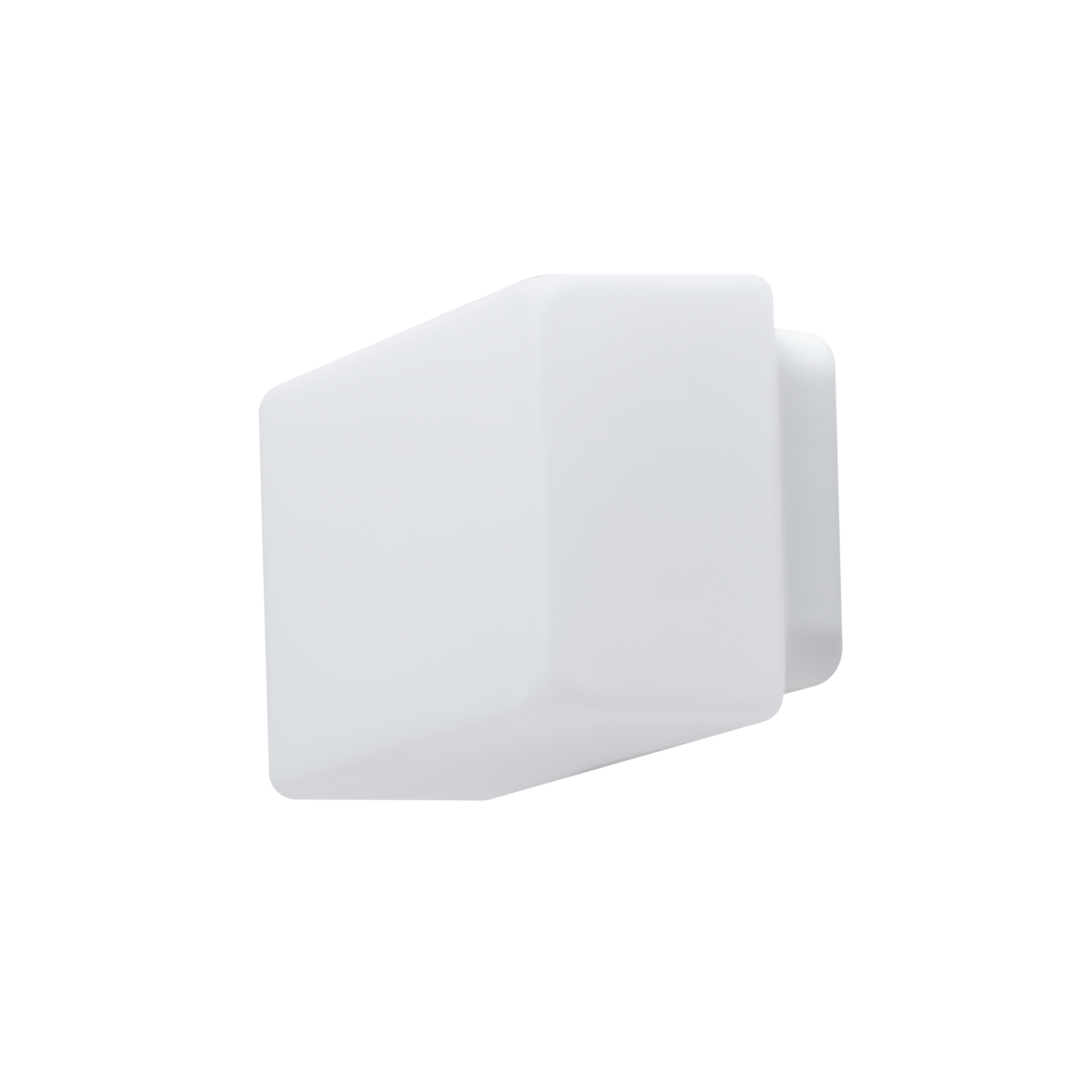

Rectangular ceiling or wall light with shade size 170×340 mm. Product consists of powder-coated metal base and handmade three-layer opal glass shade TRIPLEX OPAL with matt surface. Shade is fixed by two-step clamp holders. Suitable for indoor and outdoor use.

Shade material:
Base color:

Category (series):
Types of luminaires:
Mounting type:
Base material:
Shade color:
Mounting location:
Width:
Length:
Height:
Hinge lengths:
Energy class:	D
Impact strength:	IK01
Output:	2 15
IP:
Sensor:	Yes No
Battery type:
Emergency time:
Lum. flux of luminaire:	1400 1480
Lum. flux of light source:	2120 2240
Temperature:

Show advanced filter

Reset

230V

IP43

Possibility of design with emergency / emergency combined unit

Possibility of design with high-frequency motion sensor

Lamps

Classic on/off Sensor Emergency combined

Code	Type	Ingress Protection	Socket	CCT (K)	Input [W]	Lum. flux of light source [lm]	Lum. flux of luminaire [lm]	Warranty (month)
59236	LED-2L27C03U9/038 3000#	IP43	LED modul	3000	15	2120	1400	60	Detail
59736	LED-2L27C03U9/038 4000#	IP43	LED modul	4000	15	2240	1480	60	Detail
41399	IN-12U9/038*	IP43	E27		10			60	Detail
41400	IN-22U9/038*	IP43	2×E27		2x7			60	Detail
