KUMA 3

Short description of the luminaire

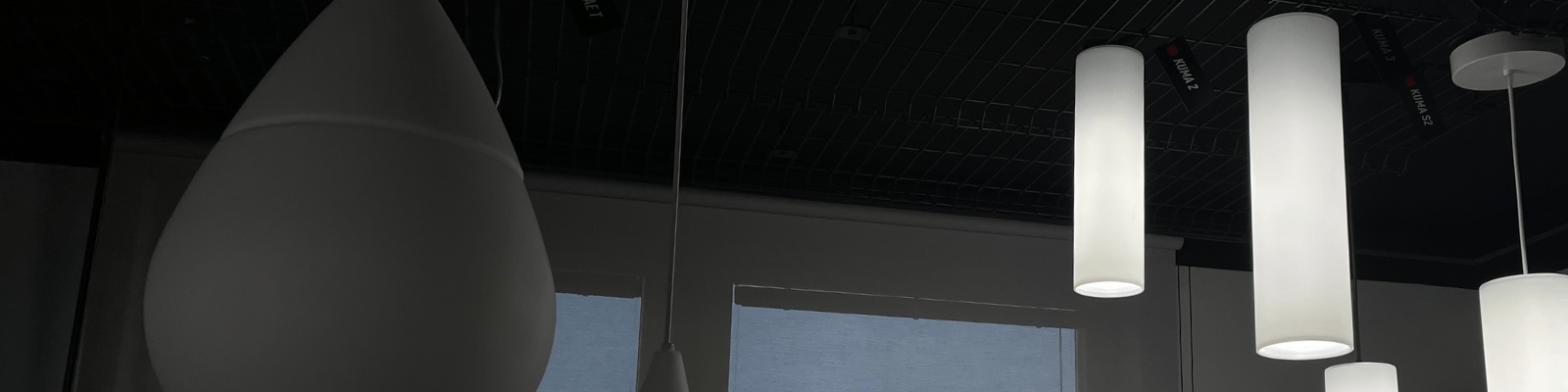

Cylindrical ceiling light with shade size Ø150×550 mm. Product consists of powder-coated metal base and handmade three-layer opal glass shade TRIPLEX OPAL with matt surface. Shade is fixed by bayonet system. Suitable for indoor and outdoor use.

Shade material:
Base color:

Category (series):
Types of luminaires:
Mounting type:
Base material:
Shade color:
Mounting location:
Width:
Length:
Height:
Hinge lengths:
Energy class:	D
Impact strength:	IK01
Output:	13 34
IP:
Sensor:	Yes No
Battery type:
Emergency time:
Lum. flux of luminaire:	3890 4590
Lum. flux of light source:	4870 5740
Temperature:

Show advanced filter

Reset

230V

IP20

Possibility of design with dimmable DALI ballast

Possibility of design with Bluetooth wireless control

Lamps

Classic on/off Dimmable

Code	Type	Ingress Protection	Socket	CCT (K)	Input [W]	Lum. flux of light source [lm]	Lum. flux of luminaire [lm]	Warranty (month)
KUM68947	LED-6L74-1L77E800BK1/436 4K##	IP20	LED modul	4000	34	5740	4590	60	Detail
KUM68447	LED-6L74-1L77E800BK1/436 3K##	IP20	LED modul	3000	34	5500	4400	60	Detail
68447	LED-6L74/1L77C08BK1/436 3000##	IP20	LED modul	3000	34	4870	3890	60	Detail
68947	LED-6L74/1L77C08BK1/436 4000##	IP20	LED modul	4000	34	5120	4100	60	Detail
40141	IN-12BK1/436**	IP20	E27		13			60	Detail

Code	Type	Ingress Protection	Socket	CCT (K)	Input [W]	Lum. flux of light source [lm]	Lum. flux of luminaire [lm]	Warranty (month)
KUM68948	LED-6L74-1L77E800BK1/436 DALI 4K##	IP20	LED modul	4000	34	5740	4590	60	Detail
KUM68448	LED-6L74-1L77E800BK1/436 DALI 3K##	IP20	LED modul	3000	34	5500	4400	60	Detail
68448	LED-6L74/1L77C08BK1/436 DALI 3000##	IP20	LED modul	3000	34	4870	3890	60	Detail
68948	LED-6L74/1L77C08BK1/436 DALI 4000##	IP20	LED modul	4000	34	5120	4100	60	Detail
