LinkedIn DELIA V2
Produktcode:DEL52541
Art:IN-22KNV83/PC23 HF*
Krátký popis

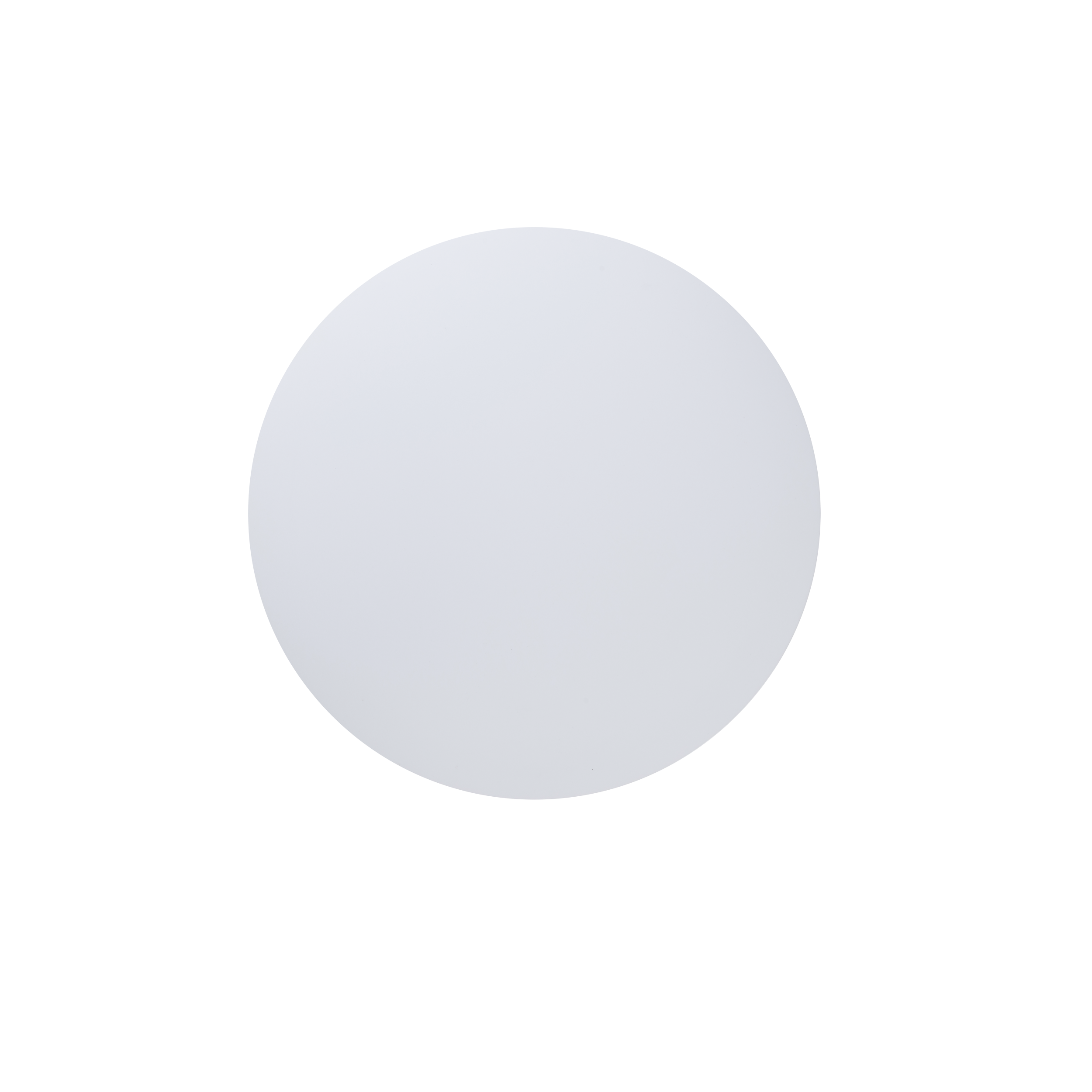

Weiße Halbeinbau-Sensorleuchte mit Glühbirne und Polycarbonat-Schirm.
Modell
Andere Produkte
Dokumente zum download
Technisch
| Arten von leuchten: | Sensor |
| Befestigungsart: | Halbeinbauleuchten |
| Basismaterial: | Stahl |
| Schattenmaterial: | opales Polycarbonat |
| Grundfarbe: | Weiß Ral9003 |
| Schattenfarbe: | Weiß |
| Schatten halten: | Faltsystem |
| Montageort: | Wand / Decke |
| Breite: | 400 mm |
| Länge: | 400 mm |
| Höhe: | 64 mm |
| Durchmesser: | 400 mm |
| Montageloch: | není |
| Kabeldurchgang: | 2xØ16mm |
| Schlagfestigkeit: | IK10 |
Elektrisch
| Spannungstyp: | AC |
| Eingangsspannung: | 220 - 240 V |
| Anzahl netzteile: | 2 |
| Leistung einer Versorgung: | 10 W |
| Ausgabe: | 2x10 W |
| Schutz vor Eindringen: | IP44 |
| Steckdose: | E27 |
| Sensor: | HF |
| Klemme: | Schnappklemmenblock |
9
Leuchtend
Logistik
| EAN | 8591728525415 |
| Gewicht NTTO | 1.85 Kg |
| Gewicht BTTO | 2.25 Kg |
| Anzahl kartons | 1 |
| Paketvolumen | 0.031 m3 |
| Paket 1 breite | 0.41 m |
| Paket 1 länge | 0.42 m |
| Paket 1 höhe | 0.18 m |
| Garantie: | 60 |
Klassisch on/off
Sensor
Dimmbar
Notfall kombiniert
Notfall kombiniert + sensor
Corridor
Tunable White
| Code | Type | Grundfarbe | Schutz vor Eindringen | Steckdose | CCT (K) | Eingang (W) | Lichtstromquelle (lm) | Leuchtenlichtstrom (lm) | Garantie (monat) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| DEL65607 | LED-1L16EMP700KNV83/PM23 4K# |
|
IP44 | LED modul | 4000 | 34 | 5270 | 3690 | 60 | Detail | |
| DEL65603 | LED-1L16E500KNV83/PM23 4K# |
|
IP44 | LED modul | 4000 | 24 | 3910 | 2740 | 60 | Detail | |
| DEL65107 | LED-1L16EMP700KNV83/PM23 3K# |
|
IP44 | LED modul | 3000 | 34 | 5050 | 3540 | 60 | Detail | |
| DEL65103 | LED-1L16E500KNV83/PM23 3K# |
|
IP44 | LED modul | 3000 | 24 | 3750 | 2630 | 60 | Detail | |
| DEL65594 | LED-1L16EMP700KNV83/PC23 4K# |
|
IP44 | LED modul | 4000 | 34 | 5270 | 3690 | 60 | Detail | |
| DEL65590 | LED-1L16E500KNV83/PC23 4K# |
|
IP44 | LED modul | 4000 | 24 | 3910 | 2740 | 60 | Detail | |
| DEL65094 | LED-1L16EMP700KNV83/PC23 3K# |
|
IP44 | LED modul | 3000 | 34 | 5050 | 3540 | 60 | Detail | |
| DEL65090 | LED-1L16E500KNV83/PC23 3K# |
|
IP44 | LED modul | 3000 | 24 | 3750 | 2630 | 60 | Detail | |
| 65107 | LED-1L16B07KNV83/PM23 3000# |
|
IP44 | LED modul | 3000 | 33 | 4850 | 3400 | 60 | Detail | |
| 65603 | LED-1L16C07KNV83/PM23 4000# |
|
IP44 | LED modul | 4000 | 27 | 3890 | 2720 | 60 | Detail | |
| 65607 | LED-1L16B07KNV83/PM23 4000# |
|
IP44 | LED modul | 4000 | 33 | 5070 | 3550 | 60 | Detail | |
| 65103 | LED-1L16C07KNV83/PM23 3000# |
|
IP44 | LED modul | 3000 | 27 | 3690 | 2580 | 60 | Detail | |
| 65590 | LED-1L16C07KNV83/PC23 4000# |
|
IP44 | LED modul | 4000 | 27 | 3890 | 2720 | 60 | Detail | |
| 65594 | LED-1L16B07KNV83/PC23 4000# |
|
IP44 | LED modul | 4000 | 33 | 5070 | 3550 | 60 | Detail | |
| 65094 | LED-1L16B07KNV83/PC23 3000# |
|
IP44 | LED modul | 3000 | 33 | 4850 | 3400 | 60 | Detail | |
| 65090 | LED-1L16C07KNV83/PC23 3000# |
|
IP44 | LED modul | 3000 | 27 | 3690 | 2580 | 60 | Detail | |
| DEL52540 | IN-22KNV83/PC23* |
|
IP44 | 2×E27 | 2x10 | 60 | Detail | ||||
| DEL52544 | IN-22KNV83/PM23* |
|
IP44 | 2×E27 | 2x10 | 60 | Detail |
| Code | Type | Grundfarbe | Schutz vor Eindringen | Steckdose | CCT (K) | Eingang (W) | Lichtstromquelle (lm) | Leuchtenlichtstrom (lm) | Garantie (monat) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| DEL65608 | LED-1L16EMP700KNV83/PM23 HF 4K# |
|
IP44 | LED modul | 4000 | 34 | 5270 | 3690 | 60 | Detail | |
| DEL65604 | LED-1L16E500KNV83/PM23 HF 4K# |
|
IP44 | LED modul | 4000 | 24 | 3910 | 2740 | 60 | Detail | |
| DEL65108 | LED-1L16EMP700KNV83/PM23 HF 3K# |
|
IP44 | LED modul | 3000 | 34 | 5050 | 3540 | 60 | Detail | |
| DEL65104 | LED-1L16E500KNV83/PM23 HF 3K# |
|
IP44 | LED modul | 3000 | 24 | 3750 | 2630 | 60 | Detail | |
| DEL65595 | LED-1L16EMP700KNV83/PC23 HF 4K# |
|
IP44 | LED modul | 4000 | 34 | 5270 | 3690 | 60 | Detail | |
| DEL65591 | LED-1L16E500KNV83/PC23 HF 4K# |
|
IP44 | LED modul | 4000 | 24 | 3910 | 2740 | 60 | Detail | |
| DEL65095 | LED-1L16EMP700KNV83/PC23 HF 3K# |
|
IP44 | LED modul | 3000 | 34 | 5050 | 3540 | 60 | Detail | |
| DEL65091 | LED-1L16E500KNV83/PC23 HF 3K# |
|
IP44 | LED modul | 3000 | 24 | 3750 | 2630 | 60 | Detail | |
| 65104 | LED-1L16C07KNV83/PM23 HF 3000# |
|
IP44 | LED modul | 3000 | 27 | 3690 | 2580 | 60 | Detail | |
| 65108 | LED-1L16B07KNV83/PM23 HF 3000# |
|
IP44 | LED modul | 3000 | 33 | 4850 | 3400 | 60 | Detail | |
| 65604 | LED-1L16C07KNV83/PM23 HF 4000# |
|
IP44 | LED modul | 4000 | 27 | 3890 | 2720 | 60 | Detail | |
| 65608 | LED-1L16B07KNV83/PM23 HF 4000# |
|
IP44 | LED modul | 4000 | 33 | 5070 | 3550 | 60 | Detail | |
| 65591 | LED-1L16C07KNV83/PC23 HF 4000# |
|
IP44 | LED modul | 4000 | 27 | 3890 | 2720 | 60 | Detail | |
| 65595 | LED-1L16B07KNV83/PC23 HF 4000# |
|
IP44 | LED modul | 4000 | 33 | 5070 | 3550 | 60 | Detail | |
| 65091 | LED-1L16C07KNV83/PC23 HF 3000# |
|
IP44 | LED modul | 3000 | 27 | 3690 | 2580 | 60 | Detail | |
| 65095 | LED-1L16B07KNV83/PC23 HF 3000# |
|
IP44 | LED modul | 3000 | 33 | 4850 | 3400 | 60 | Detail | |
| DEL52545 | IN-22KNV83/PM23 HF* |
|
IP44 | 2×E27 | 2x10 | 60 | Detail |
| Code | Type | Grundfarbe | Schutz vor Eindringen | Steckdose | CCT (K) | Eingang (W) | Lichtstromquelle (lm) | Leuchtenlichtstrom (lm) | Garantie (monat) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| DEL65609 | LED-1L16E700KNV83/PM23 DALI 4K# |
|
IP44 | LED modul | 4000 | 34 | 5270 | 3690 | 60 | Detail | |
| DEL65605 | LED-1L16E500KNV83/PM23 DALI 4K# |
|
IP44 | LED modul | 4000 | 24 | 3910 | 2740 | 60 | Detail | |
| DEL65109 | LED-1L16E700KNV83/PM23 DALI 3K# |
|
IP44 | LED modul | 3000 | 34 | 5050 | 3540 | 60 | Detail | |
| DEL65105 | LED-1L16E500KNV83/PM23 DALI 3K# |
|
IP44 | LED modul | 3000 | 24 | 3750 | 2630 | 60 | Detail | |
| DEL65596 | LED-1L16E700KNV83/PC23 DALI 4K# |
|
IP44 | LED modul | 4000 | 34 | 5270 | 3690 | 60 | Detail | |
| DEL65592 | LED-1L16E500KNV83/PC23 DALI 4K# |
|
IP44 | LED modul | 4000 | 24 | 3910 | 2740 | 60 | Detail | |
| DEL65096 | LED-1L16E700KNV83/PC23 DALI 3K# |
|
IP44 | LED modul | 3000 | 34 | 5050 | 3540 | 60 | Detail | |
| DEL65092 | LED-1L16E500KNV83/PC23 DALI 3K# |
|
IP44 | LED modul | 3000 | 24 | 3750 | 2630 | 60 | Detail | |
| 65105 | LED-1L16C07KNV83/PM23 DALI 3000# |
|
IP44 | LED modul | 3000 | 27 | 3690 | 2580 | 60 | Detail | |
| 65109 | LED-1L16B07KNV83/PM23 DALI 3000# |
|
IP44 | LED modul | 3000 | 33 | 4850 | 3400 | 60 | Detail | |
| 65605 | LED-1L16C07KNV83/PM23 DALI 4000# |
|
IP44 | LED modul | 4000 | 27 | 3890 | 2720 | 60 | Detail | |
| 65609 | LED-1L16B07KNV83/PM23 DALI 4000# |
|
IP44 | LED modul | 4000 | 33 | 5070 | 3550 | 60 | Detail | |
| 65592 | LED-1L16C07KNV83/PC23 DALI 4000# |
|
IP44 | LED modul | 4000 | 27 | 3890 | 2720 | 60 | Detail | |
| 65596 | LED-1L16B07KNV83/PC23 DALI 4000# |
|
IP44 | LED modul | 4000 | 33 | 5070 | 3550 | 60 | Detail | |
| 65092 | LED-1L16C07KNV83/PC23 DALI 3000# |
|
IP44 | LED modul | 3000 | 27 | 3690 | 2580 | 60 | Detail | |
| 65096 | LED-1L16B07KNV83/PC23 DALI 3000# |
|
IP44 | LED modul | 3000 | 33 | 4850 | 3400 | 60 | Detail |
| Code | Type | Grundfarbe | Schutz vor Eindringen | Steckdose | CCT (K) | Eingang (W) | Lichtstromquelle (lm) | Leuchtenlichtstrom (lm) | Notzeit (h) | Garantie (monat) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DEL65614 | LED-1L16EMP700KNV83/PM23/NK1W 4K# |
|
IP44 | LED modul | 4000 | 34 | 5270 | 3690 | 3 | 60 | Detail | |
| DEL65612 | LED-1L16E500KNV83/PM23/NK1W 4K# |
|
IP44 | LED modul | 4000 | 24 | 3910 | 2740 | 3 | 60 | Detail | |
| DEL65114 | LED-1L16EMP700KNV83/PM23/NK1W 3K# |
|
IP44 | LED modul | 3000 | 34 | 5050 | 3540 | 3 | 60 | Detail | |
| DEL65112 | LED-1L16E500KNV83/PM23/NK1W 3K# |
|
IP44 | LED modul | 3000 | 24 | 3750 | 2630 | 3 | 60 | Detail | |
| DEL65601 | LED-1L16EMP700KNV83/PC23/NK1W 4K# |
|
IP44 | LED modul | 4000 | 34 | 5270 | 3690 | 3 | 60 | Detail | |
| DEL65599 | LED-1L16E500KNV83/PC23/NK1W 4K# |
|
IP44 | LED modul | 4000 | 24 | 3910 | 2740 | 3 | 60 | Detail | |
| DEL65101 | LED-1L16EMP700KNV83/PC23/NK1W 3K# |
|
IP44 | LED modul | 3000 | 34 | 5050 | 3540 | 3 | 60 | Detail | |
| DEL65099 | LED-1L16E500KNV83/PC23/NK1W 3K# |
|
IP44 | LED modul | 3000 | 24 | 3750 | 2630 | 3 | 60 | Detail | |
| 65112 | LED-1L16C07KNV83/PM23/NK1W 3000# |
|
IP44 | LED modul | 3000 | 27 | 3690 | 2580 | 3 | 60 | Detail | |
| 65114 | LED-1L16B07KNV83/PM23/NK1W 3000# |
|
IP44 | LED modul | 3000 | 33 | 4850 | 3400 | 3 | 60 | Detail | |
| 65612 | LED-1L16C07KNV83/PM23/NK1W 4000# |
|
IP44 | LED modul | 4000 | 27 | 3890 | 2720 | 3 | 60 | Detail | |
| 65614 | LED-1L16B07KNV83/PM23/NK1W 4000# |
|
IP44 | LED modul | 4000 | 33 | 5070 | 3550 | 3 | 60 | Detail | |
| 65599 | LED-1L16C07KNV83/PC23/NK1W 4000# |
|
IP44 | LED modul | 4000 | 27 | 3890 | 2720 | 3 | 60 | Detail | |
| 65601 | LED-1L16B07KNV83/PC23/NK1W 4000# |
|
IP44 | LED modul | 4000 | 33 | 5070 | 3550 | 3 | 60 | Detail | |
| 65099 | LED-1L16C07KNV83/PC23/NK1W 3000# |
|
IP44 | LED modul | 3000 | 27 | 3690 | 2580 | 3 | 60 | Detail | |
| 65101 | LED-1L16B07KNV83/PC23/NK1W 3000# |
|
IP44 | LED modul | 3000 | 33 | 4850 | 3400 | 3 | 60 | Detail |
| Code | Type | Grundfarbe | Schutz vor Eindringen | Steckdose | CCT (K) | Eingang (W) | Lichtstromquelle (lm) | Leuchtenlichtstrom (lm) | Notzeit (h) | Garantie (monat) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DEL65615 | LED-1L16EMP700KNV83/PM23/NK1W HF 4K# |
|
IP44 | LED modul | 4000 | 34 | 5270 | 3690 | 3 | 60 | Detail | |
| DEL65613 | LED-1L16E500KNV83/PM23/NK1W HF 4K# |
|
IP44 | LED modul | 4000 | 24 | 3910 | 2740 | 3 | 60 | Detail | |
| DEL65115 | LED-1L16EMP700KNV83/PM23/NK1W HF 3K# |
|
IP44 | LED modul | 3000 | 34 | 5050 | 3540 | 3 | 60 | Detail | |
| DEL65113 | LED-1L16E500KNV83/PM23/NK1W HF 3K# |
|
IP44 | LED modul | 3000 | 24 | 3750 | 2630 | 3 | 60 | Detail | |
| DEL65602 | LED-1L16EMP700KNV83/PC23/NK1W HF 4K# |
|
IP44 | LED modul | 4000 | 34 | 5270 | 3690 | 3 | 60 | Detail | |
| DEL65600 | LED-1L16E500KNV83/PC23/NK1W HF 4K# |
|
IP44 | LED modul | 4000 | 24 | 3910 | 2740 | 3 | 60 | Detail | |
| DEL65102 | LED-1L16EMP700KNV83/PC23/NK1W HF 3K# |
|
IP44 | LED modul | 3000 | 34 | 5050 | 3540 | 3 | 60 | Detail | |
| DEL65100 | LED-1L16E500KNV83/PC23/NK1W HF 3K# |
|
IP44 | LED modul | 3000 | 24 | 3750 | 2630 | 3 | 60 | Detail | |
| 65113 | LED-1L16C07KNV83/PM23/NK1W HF 3000# |
|
IP44 | LED modul | 3000 | 27 | 3690 | 2580 | 3 | 60 | Detail | |
| 65115 | LED-1L16B07KNV83/PM23/NK1W HF 3000# |
|
IP44 | LED modul | 3000 | 33 | 4850 | 3400 | 3 | 60 | Detail | |
| 65613 | LED-1L16C07KNV83/PM23/NK1W HF 4000# |
|
IP44 | LED modul | 4000 | 27 | 3890 | 2720 | 3 | 60 | Detail | |
| 65615 | LED-1L16B07KNV83/PM23/NK1W HF 4000# |
|
IP44 | LED modul | 4000 | 33 | 5070 | 3550 | 3 | 60 | Detail | |
| 65102 | LED-1L16B07KNV83/PC23/NK1W HF 3000# |
|
IP44 | LED modul | 3000 | 33 | 4850 | 3400 | 3 | 60 | Detail | |
| 65600 | LED-1L16C07KNV83/PC23/NK1W HF 4000# |
|
IP44 | LED modul | 4000 | 27 | 3890 | 2720 | 3 | 60 | Detail | |
| 65602 | LED-1L16B07KNV83/PC23/NK1W HF 4000# |
|
IP44 | LED modul | 4000 | 33 | 5070 | 3550 | 3 | 60 | Detail | |
| 65100 | LED-1L16C07KNV83/PC23/NK1W HF 3000# |
|
IP44 | LED modul | 3000 | 27 | 3690 | 2580 | 3 | 60 | Detail |
| Code | Type | Grundfarbe | Schutz vor Eindringen | Steckdose | CCT (K) | Eingang (W) | Lichtstromquelle (lm) | Leuchtenlichtstrom (lm) | Garantie (monat) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| DEL63177 | LED-1L16ET700KNV83/PM23 BT 27-65K# |
|
IP44 | LED modul | 2700-6500 | 33 | 5090 | 3560 | 60 | Detail | |
| DEL63117 | LED-1L16ET700KNV83/PM23 DALI 27-65K# |
|
IP44 | LED modul | 2700-6500 | 33 | 5090 | 3560 | 60 | Detail | |
| DEL63175 | LED-1L16ET700KNV83/PC23 BT 27-65K# |
|
IP44 | LED modul | 2700-6500 | 33 | 5090 | 3560 | 60 | Detail | |
| DEL63115 | LED-1L16ET700KNV83/PC23 DALI 27-65K# |
|
IP44 | LED modul | 2700-6500 | 33 | 5090 | 3560 | 60 | Detail | |
| 63117 | LED-1L16DT07KNV83/PM23 2700-6500# |
|
IP44 | LED modul | 2700-6500 | 32 | 4680 | 3280 | 60 | Detail | |
| 63177 | LED-1L16DT07KNV83/PM23 BT 2700-6500 |
|
IP44 | LED modul | 2700-6500 | 32 | 4680 | 3280 | 60 | Detail | |
| 63115 | LED-1L16DT07KNV83/PC23 2700-6500# |
|
IP44 | LED modul | 2700-6500 | 32 | 4680 | 3280 | 60 | Detail | |
| 63175 | LED-1L16DT07KNV83/PC23 BT 2700-6500 |
|
IP44 | LED modul | 2700-6500 | 32 | 4680 | 3280 | 60 | Detail |
230V
IP44
