LUKIDA ST3
Product code:LUK60036
Type:LED-5L06E600ZST/096/L100 KP B 3K##
Short description

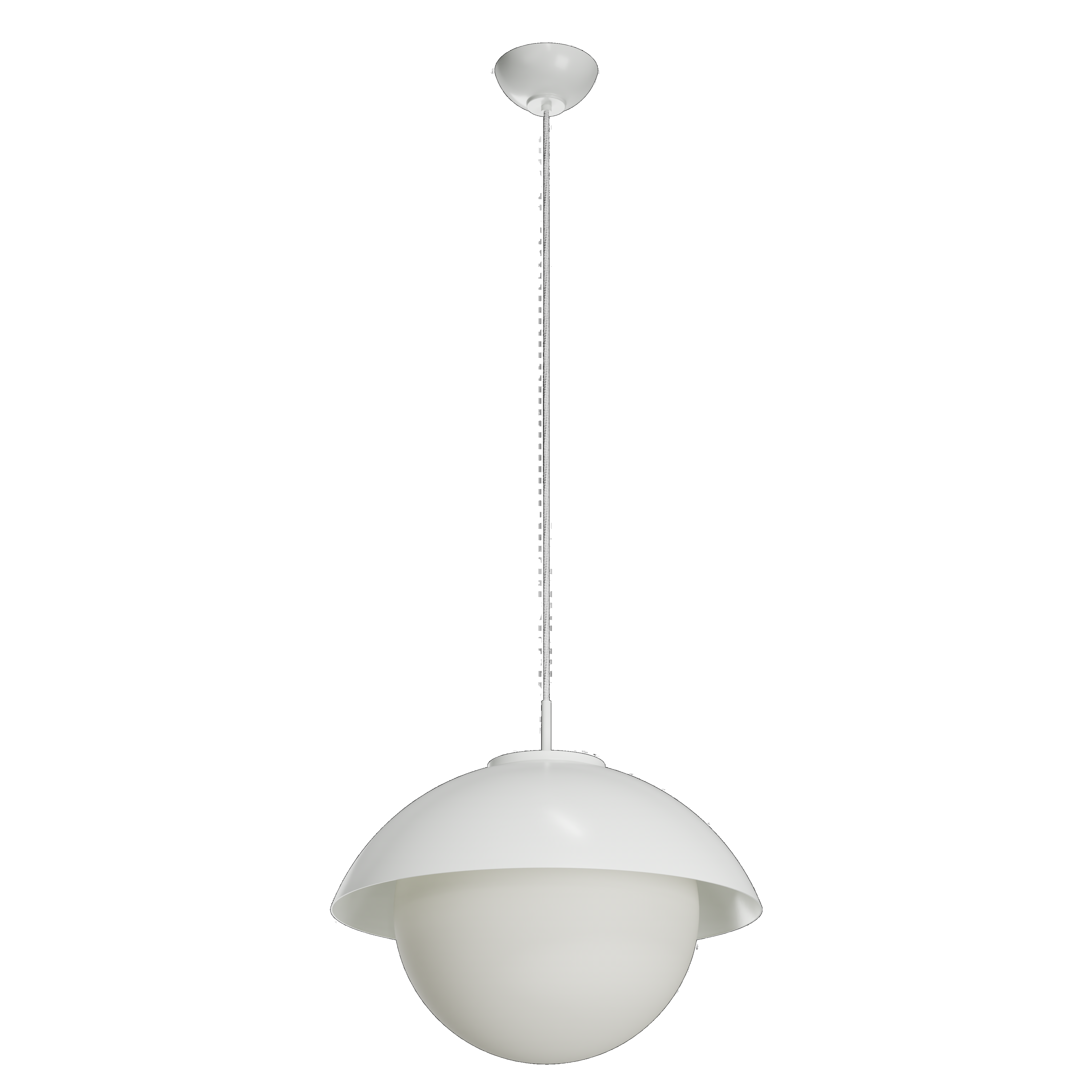

White colour | pendant LED light ON/OFF| decorative collar | TRIPLEX OPAL hand blown glass shade| textile cable pendant ( with inner support wire) 100 cm |
Model
Other products
Documents to download
Approximate lighting calculation
Technical data
| Types of luminaires: | Classic on/off |
| Mounting type: | Suspended - textile cable |
| Base material: | steel |
| Shade material: | three-layer glass TRIPLEX OPAL |
| Base color: | white Ral9003 |
| Shade color: | white |
| Holding the shade: | bayonet |
| Mounting location: | ceiling |
| Width: | 565 mm |
| Length: | 565 mm |
| Height: | 400 mm |
| Diameter: | 565 mm, 565 mm |
| mounting holes (diameter): | none, none |
| Suspension lengths: | 1000 mm |
| Energy class: | D |
| Impact strength: | IK01 |
Electrical data
| Number of power supplies: | 1 |
| Power of one supply: | 27 W |
| Output: | 27 W |
| Ingress Protection: | IP40 |
| Socket: | LED modul |
| terminal block: | none |
| Number of drivers : | 1 |
| Automatic circuit breaker type B10A: | 31 pcs |
| Automatic circuit breaker type B16A: | 50 pcs |
| Automatic circuit breaker type C10A: | 52 pcs |
| Automatic circuit breaker type C16A: | 85 pcs |
Luminous data
| Lum. flux of luminaire: | 2890 lm |
| Lum. flux of light source: | 4440 lm |
| Chromaticity temperature: | 3000 K |
| Rated life time LED L80/B10: | 100000 hours |
| CRI: | Ra80 |
| MacAdam: | 3 |
Logistical data
| EAN | 8591728086619 |
| Number of cartons | 2 |
| Package 1 width | 0.41 m |
| Package 1 length | 0.41 m |
| Package 1 height | 0.41 m |
| Package 2 width | 0.13 m |
| Package 2 length | 0.2 m |
| Package 2 height | 0.22 m |
| Warranty: | 60 months |
230V
IP40
