Kategorie (série):
Typy svítidel:
Typ montáže:
Materiál základny:
Barva stínidla:
Umístění montáže:
Šířka:
Délka:
Výška:
Délka závěsu:
Umístění montáže:	D
Rázová pevnost:	IK01
Výkon:	27 33
IP:
Senzor:	Ano Ne
Typ baterií:
Čas nouze:
Světelný tok svítidla:	2660 3650
Světelný tok zdroje:	3690 5070
Teplota:

Kód	Typ	Stupeň krytí	Patice	CCT (K)	Příkon (W)	Svět. tok zdroje (lm)	Svět. tok svítidla (lm)	Délka závěsu (mm)	Záruka (měsíc)
73069	LED-1L16C07ZLE11/139/L100 B 3000#	IP40	LED modul	3000	27	3690	2660	1000	60	Detail
73071	LED-1L16B07ZLE11/139/L100 B 3000#	IP40	LED modul	3000	33	4850	3500	1000	60	Detail
73569	LED-1L16C07ZLE11/139/L100 B 4000#	IP40	LED modul	4000	27	3890	2800	1000	60	Detail
73571	LED-1L16B07ZLE11/139/L100 B 4000#	IP40	LED modul	4000	33	5070	3650	1000	60	Detail
71709	LED-1L16C07ZLE11/139/L100 B 3/4K#	IP40	LED modul	3000/4000	27	3690/3890	2660/2800	1000	60	Detail
71711	LED-1L16B07ZLE11/139/L100 B 3/4K#	IP40	LED modul	3000/4000	33	4850/5070	3500/3650	1000	60	Detail
71399	LED-1L16C07ZLE11/139/L100 S 3/4K#	IP40	LED modul	3000/4000	27	3690/3890	2660/2800	1000	60	Detail
71401	LED-1L16B07ZLE11/139/L100 S 3/4K#	IP40	LED modul	3000/4000	33	4850/5070	3500/3650	1000	60	Detail
71403	LED-1L16C07ZLE11/139/L100 C 3/4K#	IP40	LED modul	3000/4000	27	3690/3890	2660/2800	1000	60	Detail
71405	LED-1L16B07ZLE11/139/L100 C 3/4K#	IP40	LED modul	3000/4000	33	4850/5070	3500/3650	1000	60	Detail
67457	LED-1L16C07ZLE11/139/L100 S 3000#	IP40	LED modul	3000	27	3690	2660	1000	60	Detail
67459	LED-1L16B07ZLE11/139/L100 S 3000#	IP40	LED modul	3000	33	4850	3500	1000	60	Detail
67461	LED-1L16C07ZLE11/139/L100 C 3000#	IP40	LED modul	3000	27	3690	2660	1000	60	Detail
67463	LED-1L16B07ZLE11/139/L100 C 3000#	IP40	LED modul	3000	33	4850	3500	1000	60	Detail
67957	LED-1L16C07ZLE11/139/L100 S 4000#	IP40	LED modul	4000	27	3890	2800	1000	60	Detail
67959	LED-1L16B07ZLE11/139/L100 S 4000#	IP40	LED modul	4000	33	5070	3650	1000	60	Detail
67961	LED-1L16C07ZLE11/139/L100 C 4000#	IP40	LED modul	4000	27	3890	2800	1000	60	Detail
67963	LED-1L16B07ZLE11/139/L100 C 4000#	IP40	LED modul	4000	33	5070	3650	1000	60	Detail

Kód	Typ	Stupeň krytí	Patice	CCT (K)	Příkon (W)	Svět. tok zdroje (lm)	Svět. tok svítidla (lm)	Délka závěsu (mm)	Záruka (měsíc)
73070	LED-1L16C07ZLE11/139/L100 B DALI 3000#	IP40	LED modul	3000	27	3690	2660	1000	60	Detail
73072	LED-1L16B07ZLE11/139/L100 B DALI 3000#	IP40	LED modul	3000	33	4850	3500	1000	60	Detail
73570	LED-1L16C07ZLE11/139/L100 B DALI 4000#	IP40	LED modul	4000	27	3890	2800	1000	60	Detail
73572	LED-1L16B07ZLE11/139/L100 B DALI 4000#	IP40	LED modul	4000	33	5070	3650	1000	60	Detail
71710	LED-1L16C07ZLE11/139/L100 B DALI 3/4K#	IP40	LED modul	3000/4000	27	3690/3890	2660/2800	1000	60	Detail
71712	LED-1L16B07ZLE11/139/L100 B DALI 3/4K#	IP40	LED modul	3000/4000	33	4850/5070	3500/3650	1000	60	Detail
71400	LED-1L16C07ZLE11/139/L100 S DALI 3/4K#	IP40	LED modul	3000/4000	27	3690/3890	2660/2800	1000	60	Detail
71402	LED-1L16B07ZLE11/139/L100 S DALI 3/4K#	IP40	LED modul	3000/4000	33	4850/5070	3500/3650	1000	60	Detail
71404	LED-1L16C07ZLE11/139/L100 C DALI 3/4K#	IP40	LED modul	3000/4000	27	3690/3890	2660/2800	1000	60	Detail
71406	LED-1L16B07ZLE11/139/L100 C DALI 3/4K#	IP40	LED modul	3000/4000	33	4850/5070	3500/3650	1000	60	Detail
67458	LED-1L16C07ZLE11/139/L100 S DALI 3000#	IP40	LED modul	3000	27	3690	2660	1000	60	Detail
67460	LED-1L16B07ZLE11/139/L100 S DALI 3000#	IP40	LED modul	3000	33	4850	3500	1000	60	Detail
67462	LED-1L16C07ZLE11/139/L100 C DALI 3000#	IP40	LED modul	3000	27	3690	2660	1000	60	Detail
67464	LED-1L16B07ZLE11/139/L100 C DALI 3000#	IP40	LED modul	3000	33	4850	3500	1000	60	Detail
67958	LED-1L16C07ZLE11/139/L100 S DALI 4000#	IP40	LED modul	4000	27	3890	2800	1000	60	Detail
67960	LED-1L16B07ZLE11/139/L100 S DALI 4000#	IP40	LED modul	4000	33	5070	3650	1000	60	Detail
67962	LED-1L16C07ZLE11/139/L100 C DALI 4000#	IP40	LED modul	4000	27	3890	2800	1000	60	Detail
67964	LED-1L16B07ZLE11/139/L100 C DALI 4000#	IP40	LED modul	4000	33	5070	3650	1000	60	Detail

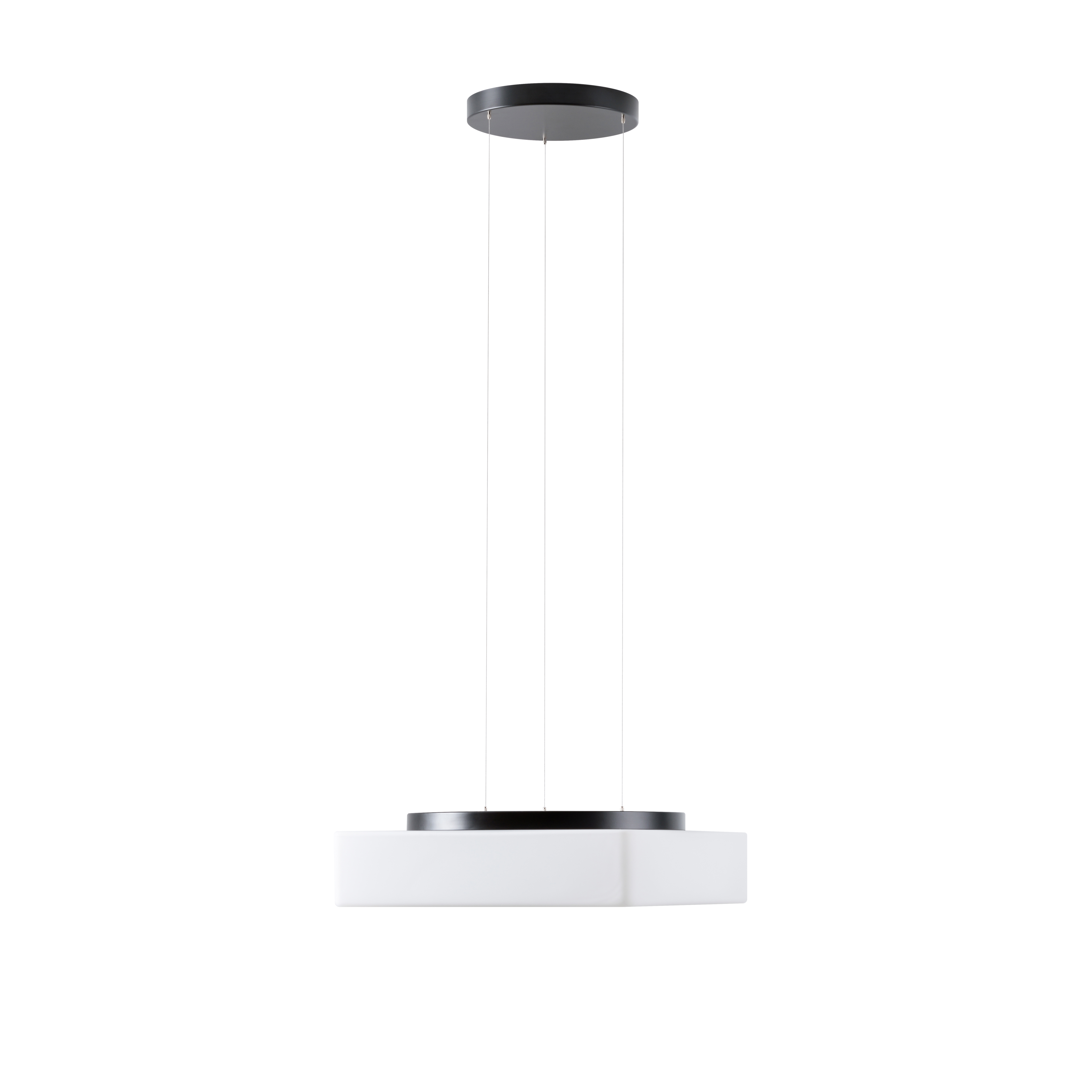

LINA LE7

Nalezená Svítidla

Svítidla

Příslušenství

Tridonic – bezdrátový modul basicDIM Wireless G2 (Bluetooth) (28003540)

Osram ZIGBEE 3.0 DALI CONV LI

Tridonic – bezdrátový ovladač basicDIM Wireless User Interface Black (Bluetooth) (28002213)

Tridonic – bezdrátový ovladač basicDIM Wireless User Interface White (Bluetooth) (28002420)

139
