TRITON 2

Product code:TRI57288

Type:LED-1L15E700/IN-184 C DALI 3K#

Model

Other products

Technical

Types of luminaires:	Dimmable
Mounting type:	industrial
Base material:	polycarbonate
Shade material:	opal polycarbonate
Base color:	black Ral9005
Shade color:	white
Holding the shade:	bayonet
Mounting location:	ceiling/wall

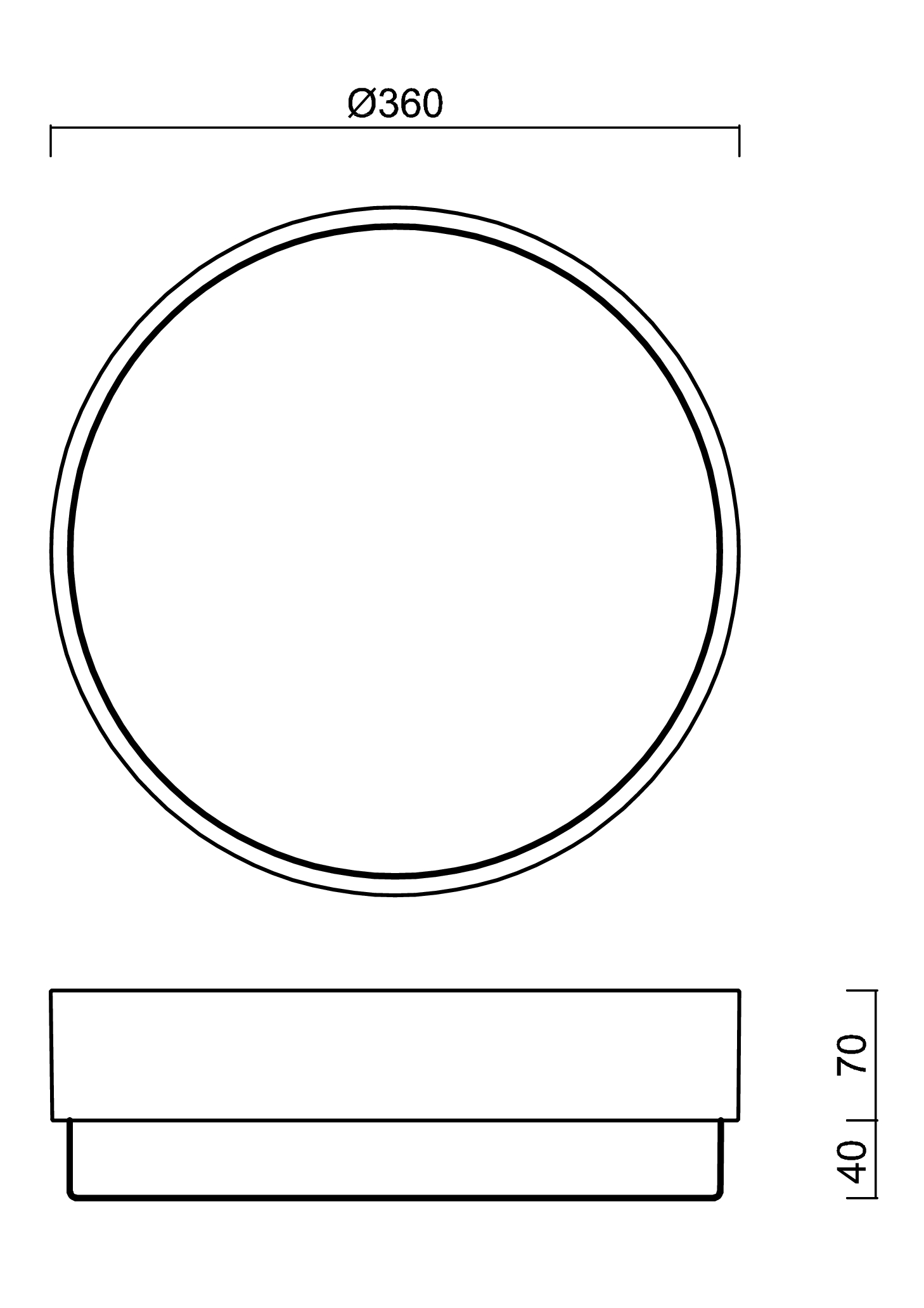

Width:	360 mm
Length:	360 mm
Height:	108 mm
Diameter:	360 mm

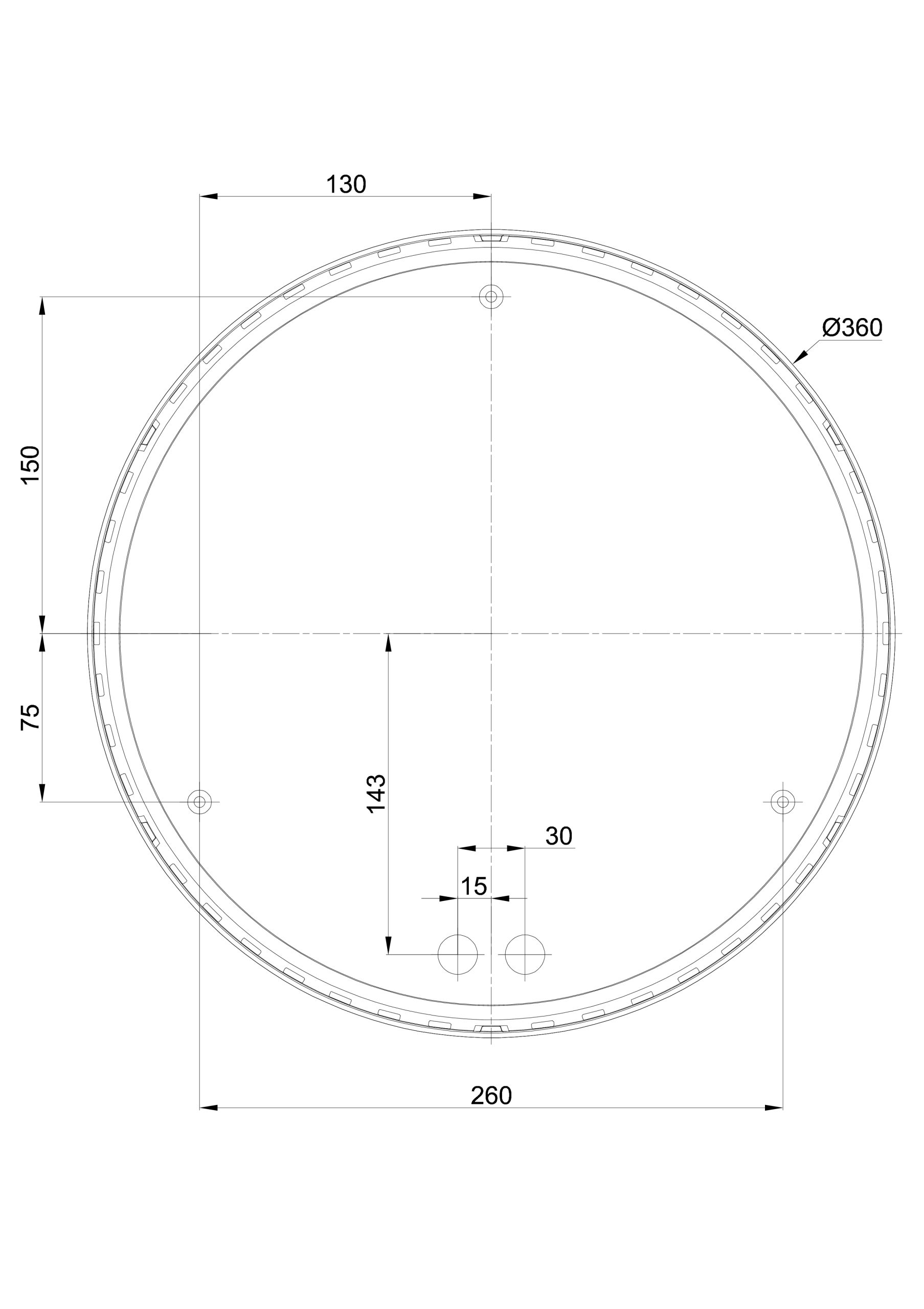

mounting holes (diameter):	3xØ5mm
Installation wire (diameter):	2xØ16mm
Energy class:	D
Impact strength:	IK10

Electric

Number of power supplies:	1
Power of one supply:	27 W
Output:	27 W
Ingress Protection:	IP65
Socket:	LED modul
Dimming type:	DALI
terminal block:	snap terminal block

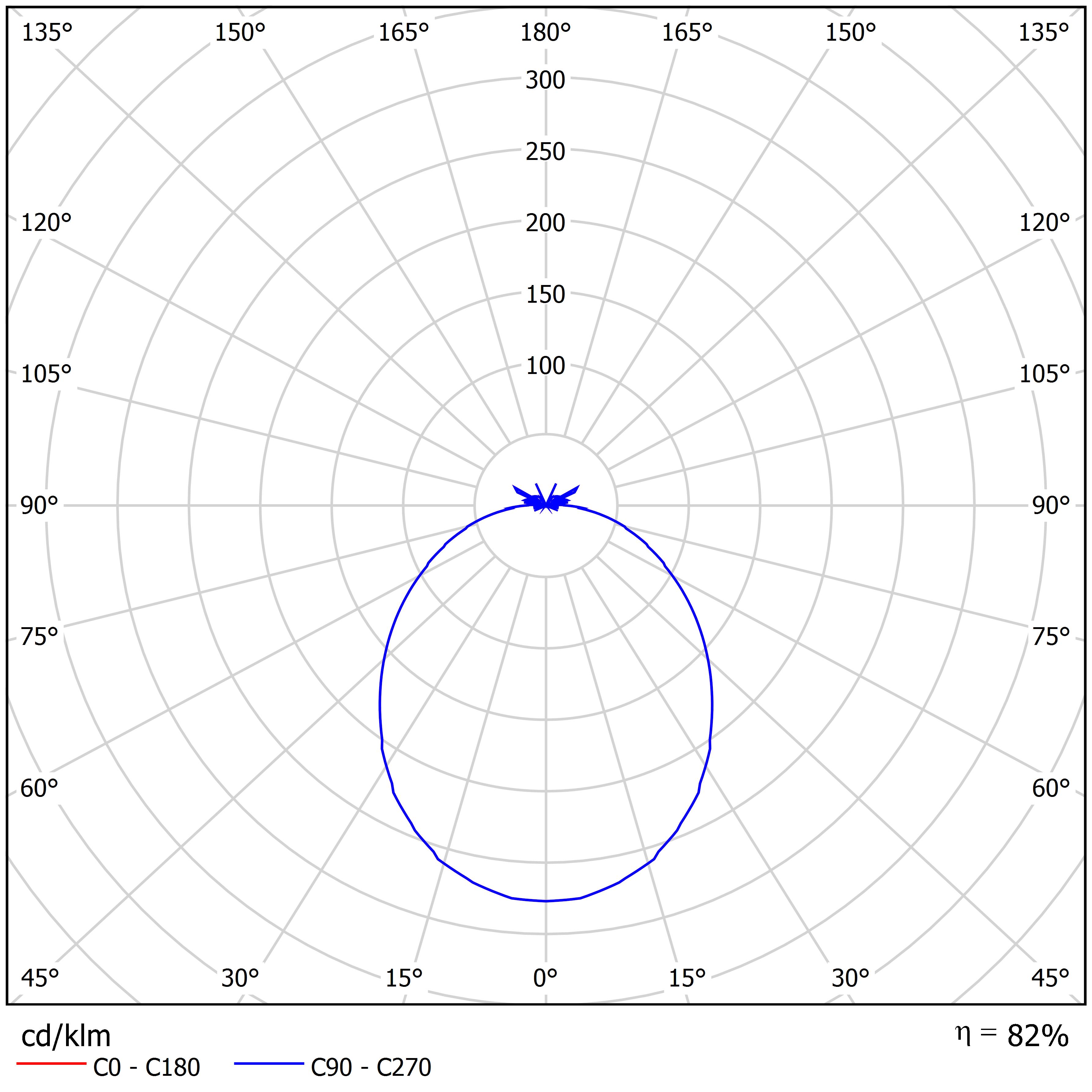

Luminous

Lum. flux of luminaire:	3310 lm
Lum. flux of light source:	4040 lm
Temperature:	3000 K
Rated life time LED L80/B10:	50000
CRI:	Ra80
MacAdam:	3

Logistic

EAN	8591728134198
Weight NTTO	1.5 Kg
Weight BTTO	1.8 Kg
Number of cartons	1
Package volume	0.019 m³
Package 1 width	0.39 m
Package 1 length	0.37 m
Package 1 height	0.13 m
Warranty:	60

Code	Type	Ingress Protection	Socket	CCT (K)	Input [W]	Lum. flux of light source [lm]	Lum. flux of luminaire [lm]	Warranty (month)
TRI57786	LED-1L15EMP700/IN-184 C 4K#	IP65	LED modul	4000	27	4220	3460	60	Detail
TRI57780	LED-1L15E500/IN-184 C 4K#	IP65	LED modul	4000	19	3130	2570	60	Detail
TRI57286	LED-1L15EMP700/IN-184 C 3K#	IP65	LED modul	3000	27	4040	3310	60	Detail
TRI57280	LED-1L15E500/IN-184 C 3K#	IP65	LED modul	3000	19	3000	2460	60	Detail
TRI50651	LED-1L15EMP700/IN-184 S 4K#	IP65	LED modul	4000	27	4220	3460	60	Detail
TRI57723	LED-1L15E500/IN-184 S 4K#	IP65	LED modul	4000	19	3130	2570	60	Detail
TRI50151	LED-1L15EMP700/IN-184 S 3K#	IP65	LED modul	3000	27	4040	3310	60	Detail
TRI57223	LED-1L15E500/IN-184 S 3K#	IP65	LED modul	3000	19	3000	2460	60	Detail
TRI50661	LED-1L15EMP700/IN-184 B 4K#	IP65	LED modul	4000	27	4220	3460	60	Detail
TRI57716	LED-1L15E500/IN-184 B 4K#	IP65	LED modul	4000	19	3130	2570	60	Detail
TRI50161	LED-1L15EMP700/IN-184 B 3K#	IP65	LED modul	3000	27	4040	3310	60	Detail
TRI57216	LED-1L15E500/IN-184 B 3K#	IP65	LED modul	3000	19	3000	2460	60	Detail
57280	LED-1L15C07/IN-184 C 3000#	IP65	LED modul	3000	20	2770	2270	60	Detail
57286	LED-1L15B07/IN-184 C 3000#	IP65	LED modul	3000	27	3880	3180	60	Detail
57780	LED-1L15C07/IN-184 C 4000#	IP65	LED modul	4000	20	2920	2390	60	Detail
57786	LED-1L15B07/IN-184 C 4000#	IP65	LED modul	4000	27	4050	3320	60	Detail
57223	LED-1L15C07/IN-184 S 3000#	IP65	LED modul	3000	20	2770	2270	60	Detail
50151	LED-1L15B07/IN-184 S 3000#	IP65	LED modul	3000	27	3880	3180	60	Detail
57723	LED-1L15C07/IN-184 S 4000#	IP65	LED modul	4000	20	2920	2390	60	Detail
50651	LED-1L15B07/IN-184 S 4000#	IP65	LED modul	4000	27	4050	3320	60	Detail
57216	LED-1L15C07/IN-184 B 3000#	IP65	LED modul	3000	20	2770	2270	60	Detail
50161	LED-1L15B07/IN-184 B 3000#	IP65	LED modul	3000	27	3880	3180	60	Detail
57716	LED-1L15C07/IN-184 B 4000#	IP65	LED modul	4000	20	2920	2390	60	Detail
50661	LED-1L15B07/IN-184 B 4000#	IP65	LED modul	4000	27	4050	3320	60	Detail
TRI50090	IN-184 B*	IP65 II	2×E27		2x10			60	Detail
TRI50110	IN-184 S*	IP65 II	2×E27		2x10			60	Detail
TRI53533	IN-184 C*	IP65 II	2×E27		2x10			60	Detail

Code	Type	Ingress Protection	Socket	CCT (K)	Input [W]	Lum. flux of light source [lm]	Lum. flux of luminaire [lm]	Warranty (month)
TRI57787	LED-1L15EMP700/IN-184 C HF 4K#	IP65	LED modul	4000	27	4220	3460	60	Detail
TRI57781	LED-1L15E500/IN-184 C HF 4K#	IP65	LED modul	4000	19	3130	2570	60	Detail
TRI57287	LED-1L15EMP700/IN-184 C HF 3K#	IP65	LED modul	3000	27	4040	3310	60	Detail
TRI57281	LED-1L15E500/IN-184 C HF 3K#	IP65	LED modul	3000	19	3000	2460	60	Detail
TRI50655	LED-1L15EMP700/IN-184 S HF 4K#	IP65	LED modul	4000	27	4220	3460	60	Detail
TRI57724	LED-1L15E500/IN-184 S HF 4K#	IP65	LED modul	4000	19	3130	2570	60	Detail
TRI50155	LED-1L15EMP700/IN-184 S HF 3K#	IP65	LED modul	3000	27	4040	3310	60	Detail
TRI57224	LED-1L15E500/IN-184 S HF 3K#	IP65	LED modul	3000	19	3000	2460	60	Detail
TRI50665	LED-1L15EMP700/IN-184 B HF 4K#	IP65	LED modul	4000	27	4220	3460	60	Detail
TRI57717	LED-1L15E500/IN-184 B HF 4K#	IP65	LED modul	4000	19	3130	2570	60	Detail
TRI50165	LED-1L15EMP700/IN-184 B HF 3K#	IP65	LED modul	3000	27	4040	3310	60	Detail
TRI57217	LED-1L15E500/IN-184 B HF 3K#	IP65	LED modul	3000	19	3000	2460	60	Detail
57281	LED-1L15C07/IN-184 C HF 3000#	IP65	LED modul	3000	20	2770	2270	60	Detail
57287	LED-1L15B07/IN-184 C HF 3000#	IP65	LED modul	3000	27	3880	3180	60	Detail
57781	LED-1L15C07/IN-184 C HF 4000#	IP65	LED modul	4000	20	2920	2390	60	Detail
57787	LED-1L15B07/IN-184 C HF 4000#	IP65	LED modul	4000	27	4050	3320	60	Detail
57224	LED-1L15C07/IN-184 S HF 3000#	IP65	LED modul	3000	20	2770	2270	60	Detail
50155	LED-1L15B07/IN-184 S HF 3000#	IP65	LED modul	3000	27	3880	3180	60	Detail
57724	LED-1L15C07/IN-184 S HF 4000#	IP65	LED modul	4000	20	2920	2390	60	Detail
50655	LED-1L15B07/IN-184 S HF 4000#	IP65	LED modul	4000	27	4050	3320	60	Detail
57217	LED-1L15C07/IN-184 B HF 3000#	IP65	LED modul	3000	20	2770	2270	60	Detail
50165	LED-1L15B07/IN-184 B HF 3000#	IP65	LED modul	3000	27	3880	3180	60	Detail
57717	LED-1L15C07/IN-184 B HF 4000#	IP65	LED modul	4000	20	2920	2390	60	Detail
50665	LED-1L15B07/IN-184 B HF 4000#	IP65	LED modul	4000	27	4050	3320	60	Detail
TRI50095	IN-184 B HF*	IP65	E27		13			60	Detail
TRI50115	IN-184 S HF*	IP65	E27		13			60	Detail
TRI53534	IN-184 C HF*	IP65	E27		13			60	Detail

Code	Type	Ingress Protection	Socket	CCT (K)	Input [W]	Lum. flux of light source [lm]	Lum. flux of luminaire [lm]	Warranty (month)
TRI57788	LED-1L15E700/IN-184 C DALI 4K#	IP65	LED modul	4000	27	4220	3460	60	Detail
TRI57782	LED-1L15E500/IN-184 C DALI 4K#	IP65	LED modul	4000	19	3130	2570	60	Detail
TRI57282	LED-1L15E500/IN-184 C DALI 3K#	IP65	LED modul	3000	19	3000	2460	60	Detail
TRI50653	LED-1L15E700/IN-184 S DALI 4K#	IP65	LED modul	4000	27	4220	3460	60	Detail
TRI57725	LED-1L15E500/IN-184 S DALI 4K#	IP65	LED modul	4000	19	3130	2570	60	Detail
TRI50153	LED-1L15E700/IN-184 S DALI 3K#	IP65	LED modul	3000	27	4040	3310	60	Detail
TRI57225	LED-1L15E500/IN-184 S DALI 3K#	IP65	LED modul	3000	19	3000	2460	60	Detail
TRI50663	LED-1L15E700/IN-184 B DALI 4K#	IP65	LED modul	4000	27	4220	3460	60	Detail
TRI57718	LED-1L15E500/IN-184 B DALI 4K#	IP65	LED modul	4000	19	3130	2570	60	Detail
TRI50163	LED-1L15E700/IN-184 B DALI 3K#	IP65	LED modul	3000	27	4040	3310	60	Detail
TRI57218	LED-1L15E500/IN-184 B DALI 3K#	IP65	LED modul	3000	19	3000	2460	60	Detail
57282	LED-1L15C07/IN-184 C DALI 3000#	IP65	LED modul	3000	20	2770	2270	60	Detail
57288	LED-1L15B07/IN-184 C DALI 3000#	IP65	LED modul	3000	27	3880	3180	60	Detail
57782	LED-1L15C07/IN-184 C DALI 4000#	IP65	LED modul	4000	20	2920	2390	60	Detail
57788	LED-1L15B07/IN-184 C DALI 4000#	IP65	LED modul	4000	27	4050	3320	60	Detail
57225	LED-1L15C07/IN-184 S DALI 3000#	IP65	LED modul	3000	20	2770	2270	60	Detail
50153	LED-1L15B07/IN-184 S DALI 3000#	IP65	LED modul	3000	27	3880	3180	60	Detail
57725	LED-1L15C07/IN-184 S DALI 4000#	IP65	LED modul	4000	20	2920	2390	60	Detail
50653	LED-1L15B07/IN-184 S DALI 4000#	IP65	LED modul	4000	27	4050	3320	60	Detail
57218	LED-1L15C07/IN-184 B DALI 3000#	IP65	LED modul	3000	20	2770	2270	60	Detail
50163	LED-1L15B07/IN-184 B DALI 3000#	IP65	LED modul	3000	27	3880	3180	60	Detail
57718	LED-1L15C07/IN-184 B DALI 4000#	IP65	LED modul	4000	20	2920	2390	60	Detail
50663	LED-1L15B07/IN-184 B DALI 4000#	IP65	LED modul	4000	27	4050	3320	60	Detail

Code	Type	Ingress Protection	Socket	CCT (K)	Input [W]	Lum. flux of light source [lm]	Lum. flux of luminaire [lm]	Emergency time (h)	Warranty (month)
TRI57790	LED-1L15EMP700/IN-184/NK1W C 4K#	IP65	LED modul	4000	27	4220	3460	3	60	Detail
TRI57784	LED-1L15E500/IN-184/NK1W C 4K#	IP65	LED modul	4000	19	3130	2570	3	60	Detail
TRI57290	LED-1L15EMP700/IN-184/NK1W C 3K#	IP65	LED modul	3000	27	4040	3310	3	60	Detail
TRI57284	LED-1L15E500/IN-184/NK1W C 3K#	IP65	LED modul	3000	19	3000	2460	3	60	Detail
TRI50657	LED-1L15EMP700/IN-184/NK1W S 4K#	IP65	LED modul	4000	27	4220	3460	3	60	Detail
TRI57728	LED-1L15E500/IN-184/NK1W S 4K#	IP65	LED modul	4000	19	3130	2570	3	60	Detail
TRI50157	LED-1L15EMP700/IN-184/NK1W S 3K#	IP65	LED modul	3000	27	4040	3310	3	60	Detail
TRI57228	LED-1L15E500/IN-184/NK1W S 3K#	IP65	LED modul	3000	19	3000	2460	3	60	Detail
TRI50667	LED-1L15EMP700/IN-184/NK1W B 4K#	IP65	LED modul	4000	27	4220	3460	3	60	Detail
TRI57721	LED-1L15E500/IN-184/NK1W B 4K#	IP65	LED modul	4000	19	3130	2570	3	60	Detail
TRI50167	LED-1L15EMP700/IN-184/NK1W B 3K#	IP65	LED modul	3000	27	4040	3310	3	60	Detail
TRI57221	LED-1L15E500/IN-184/NK1W B 3K#	IP65	LED modul	3000	19	3000	2460	3	60	Detail
57284	LED-1L15C07/IN-184/NK1W C 3000#	IP65	LED modul	3000	20	2770	2270	3	60	Detail
57290	LED-1L15B07/IN-184/NK1W C 3000#	IP65	LED modul	3000	27	3880	3180	3	60	Detail
57784	LED-1L15C07/IN-184/NK1W C 4000#	IP65	LED modul	4000	20	2920	2390	3	60	Detail
57790	LED-1L15B07/IN-184/NK1W C 4000#	IP65	LED modul	4000	27	4050	3320	3	60	Detail
57228	LED-1L15C07/IN-184/NK1W S 3000#	IP65	LED modul	3000	20	2770	2270	3	60	Detail
50157	LED-1L15B07/IN-184/NK1W S 3000#	IP65	LED modul	3000	27	3880	3180	3	60	Detail
57728	LED-1L15C07/IN-184/NK1W S 4000#	IP65	LED modul	4000	20	2920	2390	3	60	Detail
50657	LED-1L15B07/IN-184/NK1W S 4000#	IP65	LED modul	4000	27	4050	3320	3	60	Detail
57221	LED-1L15C07/IN-184/NK1W B 3000#	IP65	LED modul	3000	20	2770	2270	3	60	Detail
50167	LED-1L15B07/IN-184/NK1W B 3000#	IP65	LED modul	3000	27	3880	3180	3	60	Detail
57721	LED-1L15C07/IN-184/NK1W B 4000#	IP65	LED modul	4000	20	2920	2390	3	60	Detail
50667	LED-1L15B07/IN-184/NK1W B 4000#	IP65	LED modul	4000	27	4050	3320	3	60	Detail

Code	Type	Ingress Protection	Socket	CCT (K)	Input [W]	Lum. flux of light source [lm]	Lum. flux of luminaire [lm]	Emergency time (h)	Warranty (month)
TRI57791	LED-1L15EMP700/IN-184/NK1W HF C 4K#	IP65	LED modul	4000	27	4220	3460	3	60	Detail
TRI57785	LED-1L15E500/IN-184/NK1W HF C 4K#	IP65	LED modul	4000	19	3130	2570	3	60	Detail
TRI57291	LED-1L15EMP700/IN-184/NK1W HF C 3K#	IP65	LED modul	3000	27	4040	3310	3	60	Detail
TRI57285	LED-1L15E500/IN-184/NK1W HF C 3K#	IP65	LED modul	3000	19	3000	2460	3	60	Detail
TRI50659	LED-1L15EMP700/IN-184/NK1W HF S 4K#	IP65	LED modul	4000	27	4220	3460	3	60	Detail
TRI57729	LED-1L15E500/IN-184/NK1W HF S 4K#	IP65	LED modul	4000	19	3130	2570	3	60	Detail
TRI50159	LED-1L15EMP700/IN-184/NK1W HF S 3K#	IP65	LED modul	3000	27	4040	3310	3	60	Detail
TRI57229	LED-1L15E500/IN-184/NK1W HF S 3K#	IP65	LED modul	3000	19	3000	2460	3	60	Detail
TRI50669	LED-1L15EMP700/IN-184/NK1W HF B 4K#	IP65	LED modul	4000	27	4220	3460	3	60	Detail
TRI57722	LED-1L15E500/IN-184/NK1W HF B 4K#	IP65	LED modul	4000	19	3130	2570	3	60	Detail
TRI50169	LED-1L15EMP700/IN-184/NK1W HF B 3K#	IP65	LED modul	3000	27	4040	3310	3	60	Detail
TRI57222	LED-1L15E500/IN-184/NK1W HF B 3K#	IP65	LED modul	3000	19	3000	2460	3	60	Detail
57285	LED-1L15C07/IN-184/NK1W C HF 3000#	IP65	LED modul	3000	20	2770	2270	3	60	Detail
57291	LED-1L15B07/IN-184/NK1W C HF 3000#	IP65	LED modul	3000	27	3880	3180	3	60	Detail
57785	LED-1L15C07/IN-184/NK1W C HF 4000#	IP65	LED modul	4000	20	2920	2390	3	60	Detail
57791	LED-1L15B07/IN-184/NK1W C HF 4000#	IP65	LED modul	4000	27	4050	3320	3	60	Detail
50669	LED-1L15B07/IN-184/NK1W B HF 4000#	IP65	LED modul	4000	27	4050	3320	3	60	Detail
57229	LED-1L15C07/IN-184/NK1W S HF 3000#	IP65	LED modul	3000	20	2770	2270	3	60	Detail
50159	LED-1L15B07/IN-184/NK1W S HF 3000#	IP65	LED modul	3000	27	3880	3180	3	60	Detail
57729	LED-1L15C07/IN-184/NK1W S HF 4000#	IP65	LED modul	4000	20	2920	2390	3	60	Detail
50659	LED-1L15B07/IN-184/NK1W S HF 4000#	IP65	LED modul	4000	27	4050	3320	3	60	Detail
57222	LED-1L15C07/IN-184/NK1W B HF 3000#	IP65	LED modul	3000	20	2770	2270	3	60	Detail
50169	LED-1L15B07/IN-184/NK1W B HF 3000#	IP65	LED modul	3000	27	3880	3180	3	60	Detail
57722	LED-1L15C07/IN-184/NK1W B HF 4000#	IP65	LED modul	4000	20	2920	2390	3	60	Detail

Code	Type	Ingress Protection	Socket	CCT (K)	Input [W]	Lum. flux of light source [lm]	Lum. flux of luminaire [lm]	Warranty (month)
TRI57789	LED-1L15E700/IN-184 C HF CORR 4K#	IP65	LED modul	4000	27	4220	3460	60	Detail
TRI57783	LED-1L15E500/IN-184 C HF CORR 4K#	IP65	LED modul	4000	19	3130	2570	60	Detail
TRI57289	LED-1L15E700/IN-184 C HF CORR 3K#	IP65	LED modul	3000	27	4040	3310	60	Detail
TRI57283	LED-1L15E500/IN-184 C HF CORR 3K#	IP65	LED modul	3000	19	3000	2460	60	Detail
TRI57727	LED-1L15E700/IN-184 S HF CORR 4K#	IP65	LED modul	4000	27	4220	3460	60	Detail
TRI57726	LED-1L15E500/IN-184 S HF CORR 4K#	IP65	LED modul	4000	19	3130	2570	60	Detail
TRI57227	LED-1L15E700/IN-184 S HF CORR 3K#	IP65	LED modul	3000	27	4040	3310	60	Detail
TRI57226	LED-1L15E500/IN-184 S HF CORR 3K#	IP65	LED modul	3000	19	3000	2460	60	Detail
TRI57720	LED-1L15E700/IN-184 B HF CORR 4K#	IP65	LED modul	4000	27	4220	3460	60	Detail
TRI57719	LED-1L15E500/IN-184 B HF CORR 4K#	IP65	LED modul	4000	19	3130	2570	60	Detail
TRI57220	LED-1L15E700/IN-184 B HF CORR 3K#	IP65	LED modul	3000	27	4040	3310	60	Detail
TRI57219	LED-1L15E500/IN-184 B HF CORR 3K#	IP65	LED modul	3000	19	3000	2460	60	Detail
57283	LED-1L15C07/IN-184 C DALI HF CORR 3000#	IP65	LED modul	3000	20	2770	2270	60	Detail
57289	LED-1L15B07/IN-184 C DALI HF CORR 3000#	IP65	LED modul	3000	27	3880	3180	60	Detail
57783	LED-1L15C07/IN-184 C DALI HF CORR 4000#	IP65	LED modul	4000	20	2920	2390	60	Detail
57789	LED-1L15B07/IN-184 C DALI HF CORR 4000#	IP65	LED modul	4000	27	4050	3320	60	Detail
57226	LED-1L15C07/IN-184 S DALI HF CORR 3000#	IP65	LED modul	3000	20	2770	2270	60	Detail
57227	LED-1L15B07/IN-184 S DALI HF CORR 3000#	IP65	LED modul	3000	27	3880	3180	60	Detail
57726	LED-1L15C07/IN-184 S DALI HF CORR 4000#	IP65	LED modul	4000	20	2920	2390	60	Detail
57727	LED-1L15B07/IN-184 S DALI HF CORR 4000#	IP65	LED modul	4000	27	4050	3320	60	Detail
57219	LED-1L15C07/IN-184 B DALI HF CORR 3000#	IP65	LED modul	3000	20	2770	2270	60	Detail
57220	LED-1L15B07/IN-184 B DALI HF CORR 3000#	IP65	LED modul	3000	27	3880	3180	60	Detail
57719	LED-1L15C07/IN-184 B DALI HF CORR 4000#	IP65	LED modul	4000	20	2920	2390	60	Detail
57720	LED-1L15B07/IN-184 B DALI HF CORR 4000#	IP65	LED modul	4000	27	4050	3320	60	Detail

230V

IP65

Possibility of design with dimmable DALI ballast

Possibility of design with Bluetooth wireless control

Reference

TRITON

View details

Do you have questions?

(+420) 567 210 023

osmont@osmont.cz

Contact form
