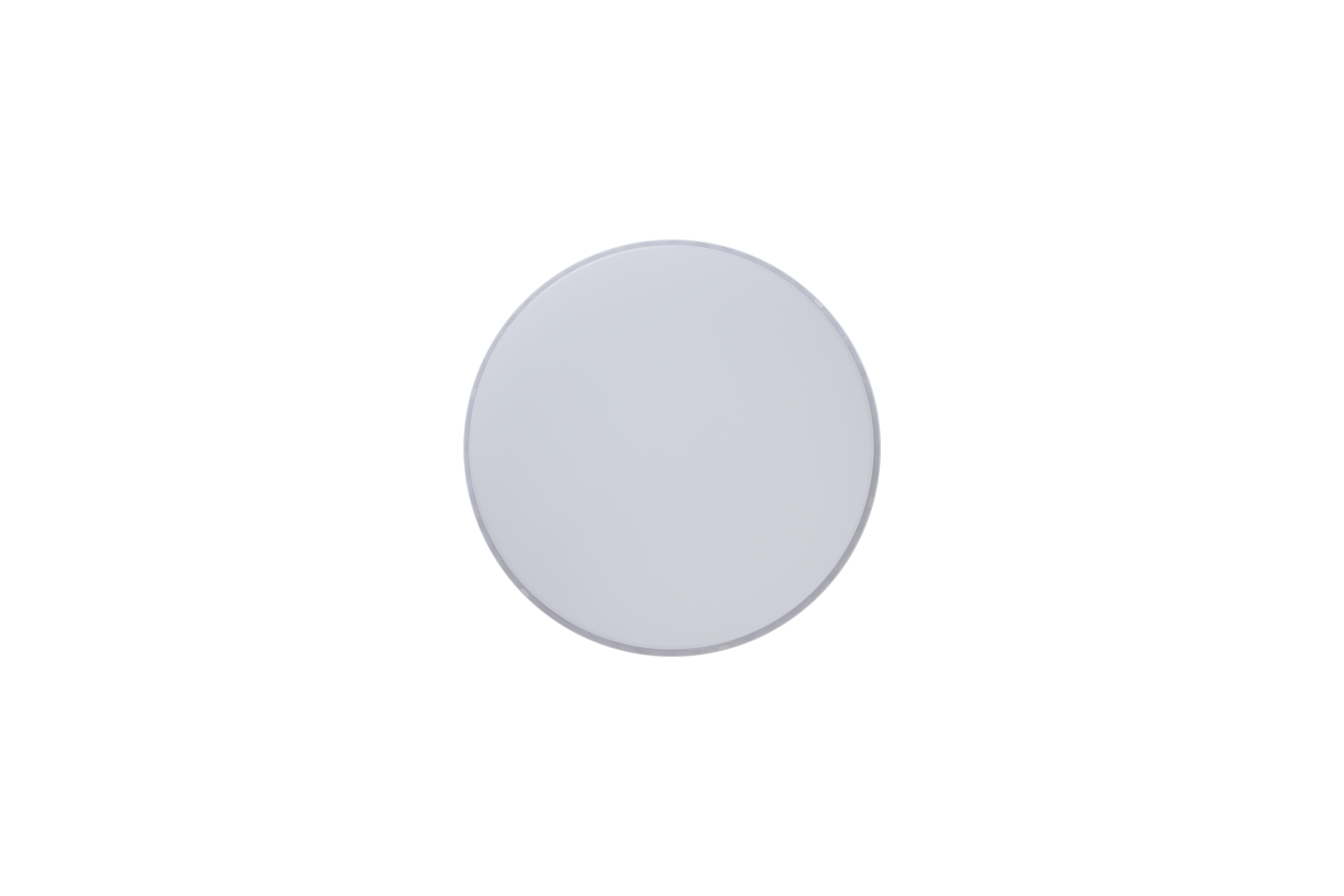

TRITON 2

Product code:TRI50661

Type:LED-1L15EMP700/IN-184 B 4K#

Short description

White colour | industrial LED light ON/OFF | multipower driver | opal polycarbonate shade (PC)|

Model

Other products

Documents to download

Approximate lighting calculation

Calculation Orientation table of lighting intensity

ORIENTATIONAL TABLE OF RECOMMENDED LIGHTING INTENSITY VALUES BY SPACE:
Intensity	height of reference plane 0m	height of reference plane 0.85m
50lx	cellar	-
75lx	parking space, garage	-
100lx	corridor, communication space, staircase	storage, boiler room
150lx	-	bedroom, living room
200lx	area in front of the elevator	bathroom, toilet, dressing room, pantry, waiting room, dining room, utility room
300lx	-	office, children's room, children's playroom, reception, laundry room, store
500lx	-	kitchen countertop, classroom, treatment room, hair salon, meeting room
1000lx	-	operating room, examination and treatment procedures
Lighting of other spaces in standard EN 12464-1.

Indicative calculation of lighting

Welcome to the section of indicative lighting calculation OSMONT!
Important: The online lighting calculation is for reference only and its results may not be completely accurate.

How to calculate the lighting in a room?
In the form below, enter the size of the room under consideration (width, length, height) and also the height of the reference plane (if you are not sure which reference plane to choose, refer to the approximate table of recommended values (button above the lighting calculation).
In the calculation, you can choose between a calculation based on the number of luminaires or based on the required illuminance. To switch, use the button below the form.

Technical

Types of luminaires:	Classic on/off
Mounting type:	industrial
Base material:	polycarbonate
Shade material:	opal polycarbonate
Base color:	white Ral9003
Shade color:	white
Holding the shade:	bayonet
Mounting location:	ceiling/wall
Width:	360 mm
Length:	360 mm
Height:	108 mm
Diameter:	360 mm
mounting holes (diameter):	3xØ5mm
Cable entrance:	2xØ16mm
Energy class:	D
Impact strength:	IK10

Electric

Number of power supplies:	1
Power of one supply:	27 W
Output:	27 W
Ingress Protection:	IP65
Socket:	LED modul
terminal block:	snap terminal block

Luminous

Lum. flux of luminaire:	3460 lm
Lum. flux of light source:	4220 lm
Temperature:	4000 K
Rated life time LED L80/B10:	100000 hours
CRI:	Ra80
MacAdam:	3

Multipower

Possibility of output adjustment by the user (DIP switch on the current source).

I [mA]	700	600	500	400
[%]	100	86	71	57

Logistic

EAN	8591728133689
Weight NTTO	1.5 Kg
Weight BTTO	1.8 Kg
Number of cartons	1
Package volume	0.019 m³
Package 1 width	0.39 m
Package 1 length	0.37 m
Package 1 height	0.13 m
Warranty:	60

Code	Type	Ingress Protection	Socket	CCT (K)	Input [W]	Lum. flux of light source [lm]	Lum. flux of luminaire [lm]	Warranty (month)
TRI50090	IN-184 B*	IP65 II	2×E27		2x25			60	Detail
TRI53533	IN-184 C*	IP65 II	2×E27		2x25			60	Detail
TRI50110	IN-184 S*	IP65 II	2×E27		2x25			60	Detail
TRI57216	LED-1L15E500/IN-184 B 3K#	IP65	LED modul	3000	19	3000	2460	60	Detail
TRI57716	LED-1L15E500/IN-184 B 4K#	IP65	LED modul	4000	19	3130	2570	60	Detail
TRI57280	LED-1L15E500/IN-184 C 3K#	IP65	LED modul	3000	19	3000	2460	60	Detail
TRI57780	LED-1L15E500/IN-184 C 4K#	IP65	LED modul	4000	19	3130	2570	60	Detail
TRI57223	LED-1L15E500/IN-184 S 3K#	IP65	LED modul	3000	19	3000	2460	60	Detail
TRI57723	LED-1L15E500/IN-184 S 4K#	IP65	LED modul	4000	19	3130	2570	60	Detail
TRI50161	LED-1L15EMP700/IN-184 B 3K#	IP65	LED modul	3000	27	4040	3310	60	Detail
TRI57286	LED-1L15EMP700/IN-184 C 3K#	IP65	LED modul	3000	27	4040	3310	60	Detail
TRI57786	LED-1L15EMP700/IN-184 C 4K#	IP65	LED modul	4000	27	4220	3460	60	Detail
TRI50151	LED-1L15EMP700/IN-184 S 3K#	IP65	LED modul	3000	27	4040	3310	60	Detail
TRI50651	LED-1L15EMP700/IN-184 S 4K#	IP65	LED modul	4000	27	4220	3460	60	Detail

Code	Type	Ingress Protection	Socket	CCT (K)	Input [W]	Lum. flux of light source [lm]	Lum. flux of luminaire [lm]	Warranty (month)
TRI50095	IN-184 B HF*	IP65	E27		25			60	Detail
TRI53534	IN-184 C HF*	IP65	E27		25			60	Detail
TRI50115	IN-184 S HF*	IP65	E27		25			60	Detail
TRI57217	LED-1L15E500/IN-184 B HF 3K#	IP65	LED modul	3000	19	3000	2460	60	Detail
TRI57717	LED-1L15E500/IN-184 B HF 4K#	IP65	LED modul	4000	19	3130	2570	60	Detail
TRI57281	LED-1L15E500/IN-184 C HF 3K#	IP65	LED modul	3000	19	3000	2460	60	Detail
TRI57781	LED-1L15E500/IN-184 C HF 4K#	IP65	LED modul	4000	19	3130	2570	60	Detail
TRI57224	LED-1L15E500/IN-184 S HF 3K#	IP65	LED modul	3000	19	3000	2460	60	Detail
TRI57724	LED-1L15E500/IN-184 S HF 4K#	IP65	LED modul	4000	19	3130	2570	60	Detail
TRI50165	LED-1L15EMP700/IN-184 B HF 3K#	IP65	LED modul	3000	27	4040	3310	60	Detail
TRI50665	LED-1L15EMP700/IN-184 B HF 4K#	IP65	LED modul	4000	27	4220	3460	60	Detail
TRI57287	LED-1L15EMP700/IN-184 C HF 3K#	IP65	LED modul	3000	27	4040	3310	60	Detail
TRI57787	LED-1L15EMP700/IN-184 C HF 4K#	IP65	LED modul	4000	27	4220	3460	60	Detail
TRI50155	LED-1L15EMP700/IN-184 S HF 3K#	IP65	LED modul	3000	27	4040	3310	60	Detail
TRI50655	LED-1L15EMP700/IN-184 S HF 4K#	IP65	LED modul	4000	27	4220	3460	60	Detail

Code	Type	Ingress Protection	Socket	CCT (K)	Input [W]	Lum. flux of light source [lm]	Lum. flux of luminaire [lm]	Warranty (month)
TRI57218	LED-1L15E500/IN-184 B DALI 3K#	IP65	LED modul	3000	19	3000	2460	60	Detail
TRI57718	LED-1L15E500/IN-184 B DALI 4K#	IP65	LED modul	4000	19	3130	2570	60	Detail
TRI57282	LED-1L15E500/IN-184 C DALI 3K#	IP65	LED modul	3000	19	3000	2460	60	Detail
TRI57782	LED-1L15E500/IN-184 C DALI 4K#	IP65	LED modul	4000	19	3130	2570	60	Detail
TRI57225	LED-1L15E500/IN-184 S DALI 3K#	IP65	LED modul	3000	19	3000	2460	60	Detail
TRI57725	LED-1L15E500/IN-184 S DALI 4K#	IP65	LED modul	4000	19	3130	2570	60	Detail
TRI50163	LED-1L15E700/IN-184 B DALI 3K#	IP65	LED modul	3000	27	4040	3310	60	Detail
TRI50663	LED-1L15E700/IN-184 B DALI 4K#	IP65	LED modul	4000	27	4220	3460	60	Detail
TRI57288	LED-1L15E700/IN-184 C DALI 3K#	IP65	LED modul	3000	27	4040	3310	60	Detail
TRI57788	LED-1L15E700/IN-184 C DALI 4K#	IP65	LED modul	4000	27	4220	3460	60	Detail
TRI50153	LED-1L15E700/IN-184 S DALI 3K#	IP65	LED modul	3000	27	4040	3310	60	Detail
TRI50653	LED-1L15E700/IN-184 S DALI 4K#	IP65	LED modul	4000	27	4220	3460	60	Detail

Code	Type	Ingress Protection	Socket	CCT (K)	Input [W]	Lum. flux of light source [lm]	Lum. flux of luminaire [lm]	Emergency time (h)	Warranty (month)
TRI57221	LED-1L15E500/IN-184/NK1W B 3K#	IP65	LED modul	3000	19	3000	2460	3	60	Detail
TRI57721	LED-1L15E500/IN-184/NK1W B 4K#	IP65	LED modul	4000	19	3130	2570	3	60	Detail
TRI57284	LED-1L15E500/IN-184/NK1W C 3K#	IP65	LED modul	3000	19	3000	2460	3	60	Detail
TRI57784	LED-1L15E500/IN-184/NK1W C 4K#	IP65	LED modul	4000	19	3130	2570	3	60	Detail
TRI57228	LED-1L15E500/IN-184/NK1W S 3K#	IP65	LED modul	3000	19	3000	2460	3	60	Detail
TRI57728	LED-1L15E500/IN-184/NK1W S 4K#	IP65	LED modul	4000	19	3130	2570	3	60	Detail
TRI50167	LED-1L15EMP700/IN-184/NK1W B 3K#	IP65	LED modul	3000	27	4040	3310	3	60	Detail
TRI50667	LED-1L15EMP700/IN-184/NK1W B 4K#	IP65	LED modul	4000	27	4220	3460	3	60	Detail
TRI57290	LED-1L15EMP700/IN-184/NK1W C 3K#	IP65	LED modul	3000	27	4040	3310	3	60	Detail
TRI57790	LED-1L15EMP700/IN-184/NK1W C 4K#	IP65	LED modul	4000	27	4220	3460	3	60	Detail
TRI50157	LED-1L15EMP700/IN-184/NK1W S 3K#	IP65	LED modul	3000	27	4040	3310	3	60	Detail
TRI50657	LED-1L15EMP700/IN-184/NK1W S 4K#	IP65	LED modul	4000	27	4220	3460	3	60	Detail

Code	Type	Ingress Protection	Socket	CCT (K)	Input [W]	Lum. flux of light source [lm]	Lum. flux of luminaire [lm]	Warranty (month)
TRI57298	LED-1L15E500/IN-184 NK3HST B 3K#	IP65	LED modul	3000	19	3000	2460	60	Detail
TRI57798	LED-1L15E500/IN-184 NK3HST B 4K#	IP65	LED modul	4000	19	3130	2570	60	Detail
TRI57306	LED-1L15E500/IN-184 NK3HST C 3K#	IP65	LED modul	3000	19	3000	2460	60	Detail
TRI57806	LED-1L15E500/IN-184 NK3HST C 4K#	IP65	LED modul	4000	19	3130	2570	60	Detail
TRI57302	LED-1L15E500/IN-184 NK3HST S 3K#	IP65	LED modul	3000	19	3000	2460	60	Detail
TRI57802	LED-1L15E500/IN-184 NK3HST S 4K#	IP65	LED modul	4000	19	3130	2570	60	Detail
TRI57300	LED-1L15EMP700/IN-184 NK3HST B 3K#	IP65	LED modul	3000	27	4040	3310	60	Detail
TRI57800	LED-1L15EMP700/IN-184 NK3HST B 4K#	IP65	LED modul	4000	27	4220	3460	60	Detail
TRI57308	LED-1L15EMP700/IN-184 NK3HST C 3K#	IP65	LED modul	3000	27	4040	3310	60	Detail
TRI57808	LED-1L15EMP700/IN-184 NK3HST C 4K#	IP65	LED modul	4000	27	4220	3460	60	Detail
TRI57304	LED-1L15EMP700/IN-184 NK3HST S 3K#	IP65	LED modul	3000	27	4040	3310	60	Detail
TRI57804	LED-1L15EMP700/IN-184 NK3HST S 4K#	IP65	LED modul	4000	27	4220	3460	60	Detail

Code	Type	Ingress Protection	Socket	CCT (K)	Input [W]	Lum. flux of light source [lm]	Lum. flux of luminaire [lm]	Emergency time (h)	Warranty (month)
TRI57222	LED-1L15E500/IN-184/NK1W HF B 3K#	IP65	LED modul	3000	19	3000	2460	3	60	Detail
TRI57722	LED-1L15E500/IN-184/NK1W HF B 4K#	IP65	LED modul	4000	19	3130	2570	3	60	Detail
TRI57285	LED-1L15E500/IN-184/NK1W HF C 3K#	IP65	LED modul	3000	19	3000	2460	3	60	Detail
TRI57785	LED-1L15E500/IN-184/NK1W HF C 4K#	IP65	LED modul	4000	19	3130	2570	3	60	Detail
TRI57229	LED-1L15E500/IN-184/NK1W HF S 3K#	IP65	LED modul	3000	19	3000	2460	3	60	Detail
TRI57729	LED-1L15E500/IN-184/NK1W HF S 4K#	IP65	LED modul	4000	19	3130	2570	3	60	Detail
TRI50169	LED-1L15EMP700/IN-184/NK1W HF B 3K#	IP65	LED modul	3000	27	4040	3310	3	60	Detail
TRI50669	LED-1L15EMP700/IN-184/NK1W HF B 4K#	IP65	LED modul	4000	27	4220	3460	3	60	Detail
TRI57291	LED-1L15EMP700/IN-184/NK1W HF C 3K#	IP65	LED modul	3000	27	4040	3310	3	60	Detail
TRI57791	LED-1L15EMP700/IN-184/NK1W HF C 4K#	IP65	LED modul	4000	27	4220	3460	3	60	Detail
TRI50159	LED-1L15EMP700/IN-184/NK1W HF S 3K#	IP65	LED modul	3000	27	4040	3310	3	60	Detail
TRI50659	LED-1L15EMP700/IN-184/NK1W HF S 4K#	IP65	LED modul	4000	27	4220	3460	3	60	Detail

Code	Type	Ingress Protection	Socket	CCT (K)	Input [W]	Lum. flux of light source [lm]	Lum. flux of luminaire [lm]	Warranty (month)
TRI57299	LED-1L15E500/IN-184 NK3HST HF B 3K#	IP65	LED modul	3000	19	3000	2460	60	Detail
TRI57799	LED-1L15E500/IN-184 NK3HST HF B 4K#	IP65	LED modul	4000	19	3130	2570	60	Detail
TRI57307	LED-1L15E500/IN-184 NK3HST HF C 3K#	IP65	LED modul	3000	19	3000	2460	60	Detail
TRI57807	LED-1L15E500/IN-184 NK3HST HF C 4K#	IP65	LED modul	4000	19	3130	2570	60	Detail
TRI57303	LED-1L15E500/IN-184 NK3HST HF S 3K#	IP65	LED modul	3000	19	3000	2460	60	Detail
TRI57803	LED-1L15E500/IN-184 NK3HST HF S 4K#	IP65	LED modul	4000	19	3130	2570	60	Detail
TRI57301	LED-1L15EMP700/IN-184 NK3HST HF B 3K#	IP65	LED modul	3000	27	4040	3310	60	Detail
TRI57801	LED-1L15EMP700/IN-184 NK3HST HF B 4K#	IP65	LED modul	4000	27	4220	3460	60	Detail
TRI57309	LED-1L15EMP700/IN-184 NK3HST HF C 3K#	IP65	LED modul	3000	27	4040	3310	60	Detail
TRI57809	LED-1L15EMP700/IN-184 NK3HST HF C 4K#	IP65	LED modul	4000	27	4220	3460	60	Detail
TRI57305	LED-1L15EMP700/IN-184 NK3HST HF S 3K#	IP65	LED modul	3000	27	4040	3310	60	Detail
TRI57805	LED-1L15EMP700/IN-184 NK3HST HF S 4K#	IP65	LED modul	4000	27	4220	3460	60	Detail

Code	Type	Ingress Protection	Socket	CCT (K)	Input [W]	Lum. flux of light source [lm]	Lum. flux of luminaire [lm]	Warranty (month)
TRI57219	LED-1L15E500/IN-184 B HF CORR 3K#	IP65	LED modul	3000	19	3000	2460	60	Detail
TRI57719	LED-1L15E500/IN-184 B HF CORR 4K#	IP65	LED modul	4000	19	3130	2570	60	Detail
TRI57283	LED-1L15E500/IN-184 C HF CORR 3K#	IP65	LED modul	3000	19	3000	2460	60	Detail
TRI57783	LED-1L15E500/IN-184 C HF CORR 4K#	IP65	LED modul	4000	19	3130	2570	60	Detail
TRI57226	LED-1L15E500/IN-184 S HF CORR 3K#	IP65	LED modul	3000	19	3000	2460	60	Detail
TRI57726	LED-1L15E500/IN-184 S HF CORR 4K#	IP65	LED modul	4000	19	3130	2570	60	Detail
TRI57220	LED-1L15E700/IN-184 B HF CORR 3K#	IP65	LED modul	3000	27	4040	3310	60	Detail
TRI57720	LED-1L15E700/IN-184 B HF CORR 4K#	IP65	LED modul	4000	27	4220	3460	60	Detail
TRI57289	LED-1L15E700/IN-184 C HF CORR 3K#	IP65	LED modul	3000	27	4040	3310	60	Detail
TRI57789	LED-1L15E700/IN-184 C HF CORR 4K#	IP65	LED modul	4000	27	4220	3460	60	Detail
TRI57227	LED-1L15E700/IN-184 S HF CORR 3K#	IP65	LED modul	3000	27	4040	3310	60	Detail
TRI57727	LED-1L15E700/IN-184 S HF CORR 4K#	IP65	LED modul	4000	27	4220	3460	60	Detail

Generate a catalog sheet

230V

IP65

Accessories

184

Lampshade

Detail

❮

❯

Reference

TRITON

View details

Do you have questions?

(+420) 567 210 023

osmont@osmont.cz

Contact form

Datasheet	datasheet_TRI50661_en.pdf
Declaration of Conformity	1219-CE_LED-1Lxxxxx-IN-18x_EN.pdf
Instructions for use	Care_maintenance_luminaires_2018.pdf
Installation Instructions	Manipulation_with_LED_luminaires.pdf
Installation Instructions	TRITON_EN.pdf
LDT file	TRITON_2_LED-1L15EMP700_IN-184_4K_EN.ldt
