TANIA L1 HP

Kód produktu:TAN62348

Typ:LED-5L08E850ZL11/296/L100 MS 3K#

Model

Ostatní produkty

Dokumenty ke stažení

Technické

Typy svítidel:	Klasické on/off
Typ montáže:	závěsné
Materiál základny:	Mosaz
Materiál stínidla:	třívrstvé sklo TRIPLEX OPÁL
Barva základny:	mosaz leštěná
Barva stínidla:	bílá
Držení stínidla:	ocelový držák
Umístění montáže:	strop

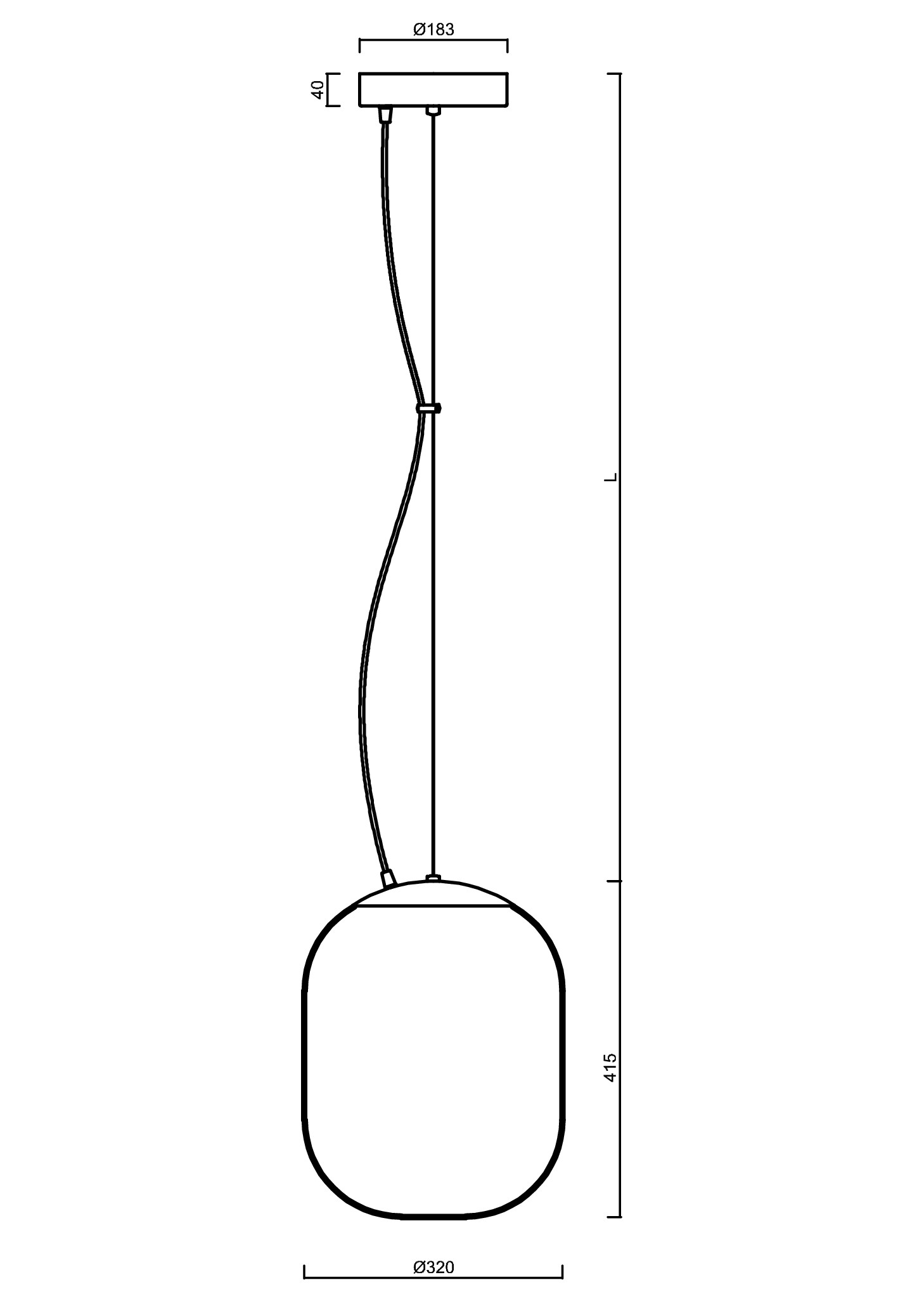

Šířka:	320 mm
Délka:	320 mm
Výška:	415 mm
Průměr:	320 mm
Montážní otvor:	3xØ5mm
Kabelový vstup:	2xØ14mm
Délka závěsu:	1000 mm
Energetická třída:	D
Rázová pevnost:	IK01

Elektrické

Počet zdrojů:	1
Výkon jednoho zdroje:	52 W
Výkon:	52 W
Stupeň krytí:	IP40
Objimka:	LED modul
Svorkovnice:	zacvakávací

Světelné

Světelný tok svítidla:	7300 lm
Světelný tok zdroje:	8290 lm
Teplota:	3000 K
Životnost LED L80/B10:	50000
CRI:	Ra80
MacAdam:	3

Logistické

EAN	8591728122577
Hmotnost NTTO	7.4 Kg
Hmotnost BTTO	9.2 Kg
Počet kartonů	2
Objem balení	0.09 m³
Balení 1 šířka	0.425 m
Balení 1 délka	0.425 m
Balení 1 výška	0.42 m
Balení 2 šířka	0.35 m
Balení 2 délka	0.2 m
Balení 2 výška	0.2 m
Záruka:	60

Kód	Typ	Stupeň krytí	Patice	CCT (K)	Příkon (W)	Svět. tok zdroje (lm)	Svět. tok svítidla (lm)	Délka závěsu (mm)	Záruka (měsíc)
TAN62856	LED-5L08E850ZL11/296/L100 NB 4K#	IP40	LED modul	4000	52	8650	7610	1000	60	Detail
TAN62852	LED-5L08E850ZL11/296/L100 NL 4K#	IP40	LED modul	4000	52	8650	7610	1000	60	Detail
TAN62848	LED-5L08E850ZL11/296/L100 MS 4K#	IP40	LED modul	4000	52	8650	7610	1000	60	Detail
TAN62844	LED-5L08E850ZL11/296/L100 C 4K#	IP40	LED modul	4000	52	8650	7610	1000	60	Detail
TAN62840	LED-5L08E850ZL11/296/L100 B 4K#	IP40	LED modul	4000	52	8650	7610	1000	60	Detail
TAN62356	LED-5L08E850ZL11/296/L100 NB 3K#	IP40	LED modul	3000	52	8290	7300	1000	60	Detail
TAN62352	LED-5L08E850ZL11/296/L100 NL 3K#	IP40	LED modul	3000	52	8290	7300	1000	60	Detail
TAN62344	LED-5L08E850ZL11/296/L100 C 3K#	IP40	LED modul	3000	52	8290	7300	1000	60	Detail
TAN62340	LED-5L08E850ZL11/296/L100 B 3K#	IP40	LED modul	3000	52	8290	7300	1000	60	Detail
62848	LED-5L08D08ZL11/296/L100 MS 4000#	IP40	LED modul	4000	52	8370	6860	1000	60	Detail
62849	LED-5L08D08ZL11/296/L200 MS 4000#	IP40	LED modul	4000	52	8370	6860	2000	60	Detail
62852	LED-5L08D08ZL11/296/L100 NL 4000#	IP40	LED modul	4000	52	8370	6860	1000	60	Detail
62853	LED-5L08D08ZL11/296/L200 NL 4000#	IP40	LED modul	4000	52	8370	6860	2000	60	Detail
62856	LED-5L08D08ZL11/296/L100 NB 4000#	IP40	LED modul	4000	52	8370	6860	1000	60	Detail
62857	LED-5L08D08ZL11/296/L200 NB 4000#	IP40	LED modul	4000	52	8370	6860	2000	60	Detail
62344	LED-5L08D08ZL11/296/L100 C 3000#	IP40	LED modul	3000	52	7990	6550	1000	60	Detail
62345	LED-5L08D08ZL11/296/L200 C 3000#	IP40	LED modul	3000	52	7990	6550	2000	60	Detail
62348	LED-5L08D08ZL11/296/L100 MS 3000#	IP40	LED modul	3000	52	7990	6550	1000	60	Detail
62349	LED-5L08D08ZL11/296/L200 MS 3000#	IP40	LED modul	3000	52	7990	6550	2000	60	Detail
62352	LED-5L08D08ZL11/296/L100 NL 3000#	IP40	LED modul	3000	52	7990	6550	1000	60	Detail
62353	LED-5L08D08ZL11/296/L200 NL 3000#	IP40	LED modul	3000	52	7990	6550	2000	60	Detail
62356	LED-5L08D08ZL11/296/L100 NB 3000#	IP40	LED modul	3000	52	7990	6550	1000	60	Detail
62357	LED-5L08D08ZL11/296/L200 NB 3000#	IP40	LED modul	3000	52	7990	6550	2000	60	Detail
62840	LED-5L08D08ZL11/296/L100 B 4000#	IP40	LED modul	4000	52	8370	6860	1000	60	Detail
62841	LED-5L08D08ZL11/296/L200 B 4000#	IP40	LED modul	4000	52	8370	6860	2000	60	Detail
62844	LED-5L08D08ZL11/296/L100 C 4000#	IP40	LED modul	4000	52	8370	6860	1000	60	Detail
62845	LED-5L08D08ZL11/296/L200 C 4000#	IP40	LED modul	4000	52	8370	6860	2000	60	Detail
62340	LED-5L08D08ZL11/296/L100 B 3000#	IP40	LED modul	3000	52	7990	6550	1000	60	Detail
62341	LED-5L08D08ZL11/296/L200 B 3000#	IP40	LED modul	3000	52	7990	6550	2000	60	Detail

Kód	Typ	Stupeň krytí	Patice	CCT (K)	Příkon (W)	Svět. tok zdroje (lm)	Svět. tok svítidla (lm)	Délka závěsu (mm)	Záruka (měsíc)
TAN62858	LED-5L08E850ZL11/296/L100 NB DALI 4K#	IP40	LED modul	4000	52	8650	7610	1000	60	Detail
TAN62854	LED-5L08E850ZL11/296/L100 NL DALI 4K#	IP40	LED modul	4000	52	8650	7610	1000	60	Detail
TAN62850	LED-5L08E850ZL11/296/L100 MS DALI 4K#	IP40	LED modul	4000	52	8650	7610	1000	60	Detail
TAN62846	LED-5L08E850ZL11/296/L100 C DALI 4K#	IP40	LED modul	4000	52	8650	7610	1000	60	Detail
TAN62842	LED-5L08E850ZL11/296/L100 B DALI 4K#	IP40	LED modul	4000	52	8650	7610	1000	60	Detail
TAN62358	LED-5L08E850ZL11/296/L100 NB DALI 3K#	IP40	LED modul	3000	52	8290	7300	1000	60	Detail
TAN62354	LED-5L08E850ZL11/296/L100 NL DALI 3K#	IP40	LED modul	3000	52	8290	7300	1000	60	Detail
TAN62350	LED-5L08E850ZL11/296/L100 MS DALI 3K#	IP40	LED modul	3000	52	8290	7300	1000	60	Detail
TAN62346	LED-5L08E850ZL11/296/L100 C DALI 3K#	IP40	LED modul	3000	52	8290	7300	1000	60	Detail
TAN62342	LED-5L08E850ZL11/296/L100 B DALI 3K#	IP40	LED modul	3000	52	8290	7300	1000	60	Detail
62850	LED-5L08D08ZL11/296/L100 MS DALI 4000#	IP40	LED modul	4000	52	8370	6860	1000	60	Detail
62851	LED-5L08D08ZL11/296/L200 MS DALI 4000#	IP40	LED modul	4000	52	8370	6860	2000	60	Detail
62854	LED-5L08D08ZL11/296/L100 NL DALI 4000#	IP40	LED modul	4000	52	8370	6860	1000	60	Detail
62855	LED-5L08D08ZL11/296/L200 NL DALI 4000#	IP40	LED modul	4000	52	8370	6860	2000	60	Detail
62858	LED-5L08D08ZL11/296/L100 NB DALI 4000#	IP40	LED modul	4000	52	8370	6860	1000	60	Detail
62859	LED-5L08D08ZL11/296/L200 NB DALI 4000#	IP40	LED modul	4000	52	8370	6860	2000	60	Detail
62343	LED-5L08D08ZL11/296/L200 B DALI 3000#	IP40	LED modul	3000	52	7990	6550	2000	60	Detail
62346	LED-5L08D08ZL11/296/L100 C DALI 3000#	IP40	LED modul	3000	52	7990	6550	1000	60	Detail
62347	LED-5L08D08ZL11/296/L200 C DALI 3000#	IP40	LED modul	3000	52	7990	6550	2000	60	Detail
62350	LED-5L08D08ZL11/296/L100 MS DALI 3000#	IP40	LED modul	3000	52	7990	6550	1000	60	Detail
62351	LED-5L08D08ZL11/296/L200 MS DALI 3000#	IP40	LED modul	3000	52	7990	6550	2000	60	Detail
62354	LED-5L08D08ZL11/296/L100 NL DALI 3000#	IP40	LED modul	3000	52	7990	6550	1000	60	Detail
62355	LED-5L08D08ZL11/296/L200 NL DALI 3000#	IP40	LED modul	3000	52	7990	6550	2000	60	Detail
62358	LED-5L08D08ZL11/296/L100 NB DALI 3000#	IP40	LED modul	3000	52	7990	6550	1000	60	Detail
62359	LED-5L08D08ZL11/296/L200 NB DALI 3000#	IP40	LED modul	3000	52	7990	6550	2000	60	Detail
62842	LED-5L08D08ZL11/296/L100 B DALI 4000#	IP40	LED modul	4000	52	8370	6860	1000	60	Detail
62843	LED-5L08D08ZL11/296/L200 B DALI 4000#	IP40	LED modul	4000	52	8370	6860	2000	60	Detail
62846	LED-5L08D08ZL11/296/L100 C DALI 4000#	IP40	LED modul	4000	52	8370	6860	1000	60	Detail
62847	LED-5L08D08ZL11/296/L200 C DALI 4000#	IP40	LED modul	4000	52	8370	6860	2000	60	Detail
62342	LED-5L08D08ZL11/296/L100 B DALI 3000#	IP40	LED modul	3000	52	7990	6550	1000	60	Detail
