DELIA 5

Short description of the luminaire

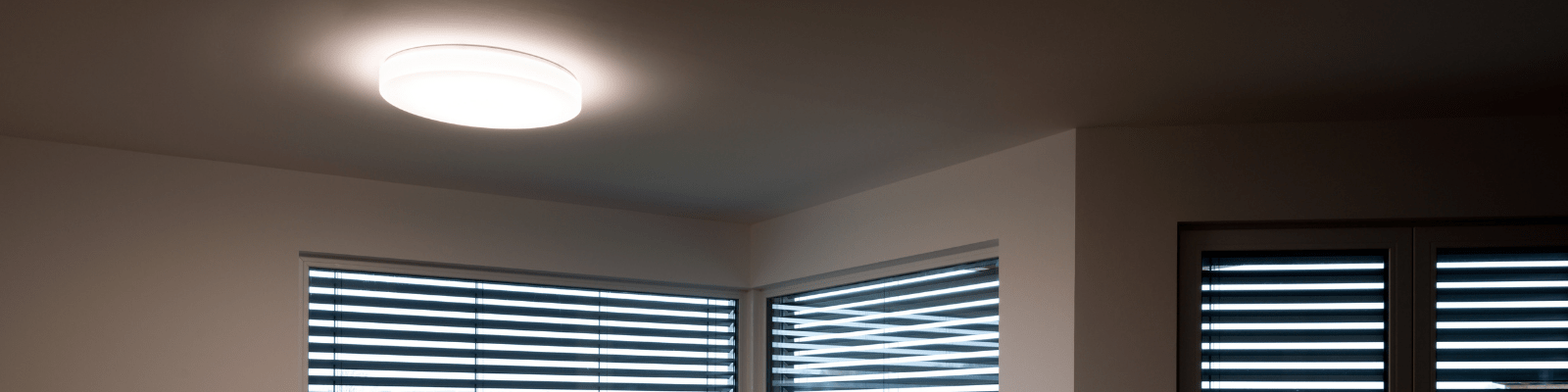

Cylindrical ceiling or wall light with shade diameter Ø900 mm. Product consists of powder-coated metal base and PMMA shade. Shade is fixed by two-step clamp holders. Suitable for indoor and outdoor use.

Shade material:
Base color:

Category (series):
Types of luminaires:
Mounting type:
Base material:
Shade color:
Mounting location:
Width:
Length:
Height:
Suspension lengths:
Energy class:	D
Impact strength:	IK10 IK04
Output:	6 155
IP:
Sensor:	Yes No
Battery type:
Emergency time:
Lum. flux of luminaire:	11050 17210
Lum. flux of light source:	15780 24590
Chromaticity temperature:

Show advanced filter

Reset

230V

IP54

Possibility of design with Bluetooth wireless control

Possibility of design with dimmable DALI ballast

Lamps

Classic on/off Dimmable Emergency combined Emergency combined SELFTEST Tunable White

Code	Type	Ingress Protection	Socket	CCT (K)	Input [W]	Lum. flux of light source [lm]	Lum. flux of luminaire [lm]	Warranty (month)
DEL53516	IN-62KN11/PC26**	IP54	6×E27		6x25			60	Detail
DEL53515	IN-62KN11/PM26**	IP54	6×E27		6x25			60	Detail
DEL58799	LED-9L52EMP1050KN11/PC26 3K##	IP54	LED modul	3000	150	22730	15910	60	Detail
DEL58807	LED-9L52EMP1050KN11/PC26 4K##	IP54	LED modul	4000	150	23720	16600	60	Detail
DEL48232	LED-9L52EMP1050KN11/PM26 3K##	IP54	LED modul	3000	150	22730	15910	60	Detail
DEL48732	LED-9L52EMP1050KN11/PM26 4K##	IP54	LED modul	4000	150	23720	16600	60	Detail
DEL58795	LED-9L52EMP700KN11/PC26 3K##	IP54	LED modul	3000	98	15780	11050	60	Detail
DEL58803	LED-9L52EMP700KN11/PC26 4K##	IP54	LED modul	4000	98	16460	11520	60	Detail
DEL56346	LED-9L52EMP700KN11/PM26 3K##	IP54	LED modul	3000	98	15780	11050	60	Detail
DEL56846	LED-9L52EMP700KN11/PM26 4K##	IP54	LED modul	4000	98	16460	11520	60	Detail
